Spread through air spaces (STAS): a comprehensive update

Introduction

Following validation in two large independent cohorts from the US and Germany (1,2), the new concept of spread through air spaces (STAS) was introduced for pulmonary adenocarcinomas (ADC) in the 2015 World Health Organization (WHO) classification for lung cancer and subsequently validated and extended by further studies (3). This article will provide a comprehensive overview on recent developments in this field.

Definition of STAS

According to the 2015 WHO classification, STAS is defined as “micropapillary clusters, solid nests, or single cells spreading within air spaces beyond the edge of the main tumor”. Besides the existing criteria for invasion (a histological subtype other than a lepidic pattern; myofibroblastic stroma associated with invasive tumor cells; vascular or pleural invasion), STAS was thereby established as a fourth category which defines invasion for ADC.

Prior to the definition of STAS, early reports indicated that aerogenous tumor spread and free floating cell clusters from ADC but also metastases from colorectal cancer are unfavorable prognostic features (4-6). Furthermore, Onozato et al. described so-called tumor islands and their adverse prognostic impact, a morphological feature closely related to STAS in 2013 (7). In principal, tumor islands can be separated from STAS by specific criteria (8). Of note, using 3D reconstruction approaches it was demonstrated that the tumor islands are connected to the main tumor at different levels (9). Subsequent clinicopathological correlations revealed a significant association of tumor islands with smoking, high-grade (solid or micropapillary) predominant pattern, KRAS mutations, and higher nuclear grade. Furthermore, tumor islands were significantly associated with a worse recurrence-free survival (7).

However, due to an overlap of the official definition by the 2015 WHO classification and respective validation studies and owing that the concept of STAS is still evolving, yet available studies applied divergent definitions of STAS and/or related morphological features (Table 1). Interestingly, more or less independent from the different definitions, the clinicopathological associations and the prognostic impact of STAS are highly comparable across all studies (see below).

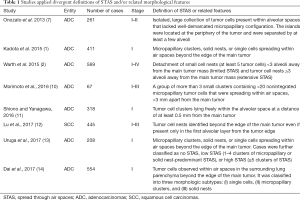

Table 1 Studies applied divergent definitions of STAS and/or related morphological features
Full table

Invasion of air spaces—a novel diagnostic feature?

The definition of STAS implies that we accept the invasion of “air” by a tumor as a novel concept, which is clearly unconventional and not compatible with traditional pathological criteria of invasion, where usually the infiltration of a carcinoma through the basal membrane is considered the border line between an in situ carcinoma and an invasive carcinoma. However, looking on the spectrum of lung carcinomas with its high variability of growth patterns, we, maybe unnoticed, already accepted the invasion of air as a criterion for an aggressive tumor-biological behaviour for years. Papillary or micropapillary patterns of ADC or cell clusters floating within pools of mucin in mucinous or specifically colloid adenocarcinomas are internationally accepted features of an invasive tumor although a stromal invasion or infiltration through the basal membrane is not necessarily present in these cases. Thus, the idea of STAS requires thinking out of the box but in principle the yet established criteria which define invasion in the lungs are not contradictory to this concept. An open question is how long tumor cells can survive following detachment from the main tumor mass and floating free in the air spaces and how they attach again and gain access to energy supply via blood vessels. Looking on intraalveolar macrophages there is a cell population which in principle demonstrates that cell survival within air spaces is possible. The fluid of the alveolar walls or peritumoral edema or hemorrhage might serve as potential sources to bridge the necessary energy supply and oxygen is more or less available ad libitum within the air spaces. From cell culture experiments it is well known that lung cancer cells can survive starvation from cell culture medium for >12 h, thus providing at least a rough time frame of potential mechanisms involved in STAS in vivo. However, due to the limitations of even modern imaging approaches the precise molecular mechanisms for a detachment of tumor cells, a distribution via air spaces and attachment at distant sites can most likely only be analyzed using animal models, e.g., by transtracheal injection of lung cancer cells in rodents.

Correlation of STAS with clinicopathological parameters

The concept of STAS was initially validated by two large contemporaneous publications (1,2). In a series of 411 stage I ADC it was demonstrated that STAS is a phenomenon usually found in the first alveolar layers close to the tumor but occasionally can be found more than 50 alveolar spaces away from the main tumor. STAS was significantly associated with lymphovascular invasion and high-grade histological pattern (1). The association of STAS to lymphovascular invasion was subsequently validated by others (10). In a series of 569 ADC STAS was significantly associated with male sex, lymph node and distant metastasis, tumor stage, and high-grade histological patterns (2). Further correlations were found with KRAS and BRAF mutations (2). Another recent study concerning STAS in a series of 318 stage I ADC confirmed and extended the yet available data. The authors found significant associations of STAS with the male sex, the median CEA level, smoking status, median maxSUV, solid nodules on computed tomography, p-stage, EGFR wild-type, lymphovascular invasion, and pleural invasion (11). In a series of 209 ADC where the authors aimed to quantify STAS there were statistically significant associations between higher STAS and solid predominant ADC, pleural invasion, lymphatic invasion, vascular invasion, and tumor size ≥10 mm (13).

By analyzing a series of 445 stage I–III lung squamous cell carcinomas (SCC) Lu et al. demonstrate for the first time that STAS is not limited to ADC but is also a significant prognostic parameter for SCC (12). STAS was observed in 30% of the cases and the frequency increased with stage. Significant associations were identified for several adverse pathologic features including lymphovascular invasion (15).

Prognostic impact of STAS

Of note, one of the first validation studies on STAS found different survival rates depending on the type of the resection. Whereas STAS was not significantly associated with recurrence in the lobectomy group it was a significant prognosticator for any as well as locoregional recurrence in the limited resection group (1), pointing towards the potential clinicopathological impact of this new feature. In the second validation study, STAS was a significant prognosticator for both overall and disease-free survival even in patients with lobectomy and independent of the extent of STAS. Furthermore, STAS remained a worse prognosticator in multivariate analysis including the predominant pattern but not independent of stage (2). Although the analyzed subgroups were small, this study also demonstrated for the first time that the presence of STAS adds significant prognostic information to the predominant pattern (2), which was further underlined by a subsequent study focusing on the papillary pattern (16). The additive prognostic value of STAS to histological patterns was most recently confirmed by a retrospective study of ADC with a micropapillary component in which the prognostic impact of free tumor cell clusters was analyzed (10). Of note, there was a significant association with recurrence-free survival and mortality (10). More interestingly, the authors demonstrate that the presence of a micropapillary component together with STAS results in a shift of the T stage compared to the same tumors without both features being present. In a further validation study STAS was confirmed as an independent prognostic parameter in multivariate analysis for both overall and recurrence-free survival (11). In a series of 544 ADC with a validation cohort of 541 patients, those with ADCs 3 cm or smaller and STAS had worse recurrence-free and overall survival than those without STAS. Comparable survival rates were observed in patients with stage IA ADC exhibiting STAS and those with stage IB ADC. Multivariate analysis revealed STAS to be an independent prognostic factor in ADC 3 cm or smaller. Among patients with ADC larger than 2 to 3 cm, STAS still stratified the prognosis. Moreover, the unfavorable prognosis of patients with ADC larger than 2 to 3 cm with STAS present was similar to that of patients with stage IB ADC (14).

In an approach to quantify the extent of STAS there was a significant association between increasing amounts of STAS in the tumor periphery and shorter recurrence-free survival in univariate analysis. In multivariate analysis, only STAS remained a significant predictor of survival (13). This points out that, although the distance of STAS from the main tumor does not seem to be of high prognostic relevance in neither for ADC nor SCC (2,12,14), the quantity of STAS might be an important prognostic parameter. Further studies are needed where STAS is analyzed quantitatively to further narrow in on this and to potentially define clinically meaningful cut-offs.

In SCC the cumulative incidence of any, distant, and locoregional recurrence as well as lung cancer-specific death were significantly higher in patients with STAS compared to those without, and these associations remained significant in multivariate analyses. As demonstrated in ADC (2) the extent of STAS was not relevant for prognosis (12). The prognostic impact of STAS in SCC was most recently confirmed in a series of 2016 cases from Japan (17). Thus, beyond budding and cell nest size which has previously been identified as prognostically relevant morphological parameters in SCC (18-21), STAS seems to be another morphological feature to allow for a better prognostic stratification of SCC and potentially the establishment of a clinically meaningful grading system in the near future.

An interesting point is that there are first data pointing towards that STAS might be a potential candidate to upgrade the T stage in order to improve the accuracy of the prognosis of early stage ADC. Eguchi et al. demonstrated that the 5-year cumulative incidence of recurrence and cumulative incidence of lung cancer specific death in patients with ADC 2 cm or smaller was stratified by STAS (22). This is further underlined by a large multinational cohort of >2,000 early stage ADC where STAS together with solid and micropapillary patterns were significant parameters for an optimized patient stratification based on respective nomograms (23). Further analysis revealed that STAS might also be helpful to predict the response to adjuvant treatment (personal experience).

STAS—fact or artifact?

Up to now all studies on STAS, despite different definitions (Table 1), demonstrate that this novel morphologic feature is of high prognostic value. Thus, STAS should be included into pathological reports. However, it is still debatable whether STAS is an in vivo effect in any instances or potentially an artifact induced by cutting though a tumor with a knife (24). Indeed, data from a recent multicenter study in which a defined protocol for macroscopic tumor dissection was applied demonstrate that the number of free tumor cell clusters within air spaces is increased cut by cut (25,26), pointing towards that at least a certain proportion of STAS might be attributed to the processing of unfixed tissue by the pathologist. On the other side, STAS was reported to be present in tumors which have not been cut in an unfixed state (27). Furthermore, at least a subset of the solid type STAS has been proven to be a direct extension of tumor cells from the main tumor to adjacent air spaces by 3D reconstruction (9).

Finally, if STAS would only be an artifact induced ex vivo following surgical resection, it is difficult to explain the significant association of STAS with prognosis and recurrence. One may argue that the strong correlation of STAS with lymphovascular invasion is causative for the locoregional and distant recurrence. However, yet available studies demonstrated that STAS was a significant prognosticator independent of lymphovascular invasion (1,11). So if the prognostic impact and the high association with locoregional recurrence cannot be fully explained by lymphovascular invasion, STAS occurring in situ seems to be the only logic alternative.

With respect to a better separation of STAS from artificial floaters it was suggested to consider only tumor cells as STAS if they appear as detached small clusters within air spaces in a continuous manner from the edge of the tumor, and the distribution is consistent with the overall configuration of the circumferential tumor edge. Haphazardly distributed fragments of tumor with sharp jagged edges might be regarded as artifacts (12). Within this context further studies are clearly warranted to better separate floaters from STAS and evaluate the potential prognostic impact of both.

STAS: spread through a surgeon?

Given that STAS occurs in situ and is thus causative for tumor recurrence, we must consider all scenarios prior to the material reaching the pathologist. One step back there is a manual surgical procedure where tumors are subjected to mechanical alterations by various surgical tools. Looking specifically on procedures like VATS lobectomy, whole lobes including tumors of different sizes are squeezed through tiny holes in the rigid thoracic wall, which might result in a detachment of tumor cells at the tumor periphery. Furthermore, to localize small tumors within lobes, surgeons use their hands and apply pressure to the lung tissue to feel for resistances. All this undoubtedly results in mechanical stress to a tumor, which might have somewhat discohesive properties and is thus prone to the dissemination of cell clusters from the periphery of the tumor into the adjacent air spaces. Thus, both surgical and pathological handling of resection specimens might be causative for an artificial spread of tumor cells within air spaces beyond the main tumor mass. Even so, the high correlation of STAS to prognosis and recurrence still remains an enigma. One may argue that local recurrence only occurs following wedge resections were STAS is present and detached tumor cells survive within air spaces beyond the stapler margins. However, cases with STAS being present also had a worse prognosis following lobectomy in several studies. Another yet open question is if STAS can be reliably detected in frozen sections, the only option to directly impact the surgical procedure since STAS is not evident in preoperative imaging procedures. Up to now only sparse data are available in this context. Kameda et al. reported that STAS could be identified in frozen sections with a sensitivity, specificity, and accuracy of 71%, 92.4%, and 80%, respectively. Clearly these results have to be validated in subsequent studies (28).

Another potential cause for an artificial distribution of tumor cells within air spaces are bronchoscopic or transthoracic tumor biopsies, where also single tumor cells or cell clusters might be detached and then result in a more rapid tumor dissemination through air spaces. Up to now only very limited data are available in this regard. In a series of 146 histologically confirmed cases of lung cancer diagnosed by computed tomography guided transthoracic needle biopsies, there was no increased risk for pleuritis carcinomatosa compared to 112 controls, indicating that at least pleural dissemination seems not to be a problem in this setting. Intrapulmonary tumor spread was not specifically assessed in this study (29).

Conclusions and perspectives

In summary, STAS is associated with multiple pathologic and clinical features of aggressiveness in both SCC and ADC and is an important prognostic feature independent of tumor stage and ADC growth patterns. Therefore, STAS might have significant impact for treatment decisions and should be included in pathological reports.

One important next step will be the development of a more precise definition of STAS. For the moment it seems that single tumor cells within air spaces beyond the margins of the main tumor are sufficient to classify a tumor as STAS positive, however, more data concerning the quantitative effect and the distance of STAS from the main tumor and the role of the surgical procedure are warranted. The separation of tumor islands from STAS seems not to be relevant with respect to prognosis. However, based on the current variety of definitions and concepts in the literature, further clarification is needed to determine if “micropapillary STAS” and “isolated tumors cells” as described in the WHO classification differ from the concepts of micropapillary carcinoma occurring at the edge of a tumor and “free tumor clusters” or whether these all represent points in a spectrum of a growth pattern with common behavior. In addition to the need for more clinicopathological and prognostic studies on STAS, more precise criteria to separate ex vivo artifacts from potential in vivo effects are also needed, especially if cases categorized as STAS positive and cases with artificial floaters differ with respect to prognosis. Specifically the identification of molecular mechanisms resulting in STAS and/or in discohesive tumor properties leading to artificial floaters during surgical or pathological tumor manipulation, e.g., alterations of junction proteins (30), will provide in-depth insights if this all represents a continuous phenomenon starting in vivo prior or during surgical procedures and pathological processing or if we can finally clearly separate in vivo effects from artifacts.

A yet still open but important question is also if STAS can reliably be detected in frozen sections, as some studies have demonstrated that the identification of a micropapillary growth pattern at the time of frozen showed high specificity but very low sensitivity (31,32). In conclusion, while the concept of STAS appears to have critical prognostic implications, its refinement and further studies are needed in several areas.
