Ensuring sample quality for blood biomarker studies in clinical trials: a multicenter international study for plasma and serum sample preparation

Introduction

Appropriate blood sample handling is crucial for blood-based biomarker studies including proteomics investigation. However, there are many pre-analytical steps that could interfere with the accurate measurement of potential circulating biomarkers (1), and platelet activation and contamination have significant impacts on the accurate quantification of many molecules including cytokine profiles. Thus, a suboptimal blood sample preparation process can invalidate study results. For example, results from laboratory studies and a few small human series have shown that transforming growth factor-beta (TGF-β1) is a radiation-inducible cytokine involved in the early changes in molecular signaling in radiation-induced lung damage and that a change in the plasma TGF-β1 level may precede the occurrence of radiation pneumonitis and therefore can be used as a predictive marker (2-7). However, data regarding TGF-β1 levels from human studies are inconsistent regarding the association between the circulating TGF-β1 level and the risk of radiation pneumonitis (8-10). The reported TGF-β1 levels in normal human subjects varied from series to series, and the variation found in plasma and serum samples from normal control subjects using the same enzyme-linked immunosorbent assay (ELISA) methodology was obviously related to the sample collection and handling process (11,12). Notably, TGF-β1 levels are 40–100-fold higher in platelets than in any other normal tissue in the body (13), and thus, activation or degranulation of platelets in plasma or serum samples can significantly interfere with the TGF-β1 concentration in those samples (2,11).

With technological advances, proteome signature and biomarker identification techniques have become available for cancer research (14). Studies have shown that for the analysis of low molecular weight proteins, platelet contamination/activation can also significantly influence the proteome profile, as platelet-poor plasma is used for these tests. Obtaining good samples is crucial for accurate proteome analysis (15,16). Similarly, tests determining cytokine profiles will also be affected by the blood sample handling process.

The primary goal of this study was to establish an optimal method for preparing plasma samples for accurate estimation of cytokine profiles to ensure sample quality for future biomarker studies. The specific aims of this study were: to study the result variations generated from various temperature settings and spinning gravities; to establish reliable blood sample preparation methods for obtaining platelet-poor plasma and serum samples; and to determine whether platelet-poor plasma samples prepared using different methods have reproducible plasma cytokine profiles.

Wakefield et al. (17) and Jeon et al. (18) demonstrated that platelet factor 4 (PF4) levels could be used to monitor the quality of plasma samples for TGF-β1 measurement. We hypothesized that levels of PF4 reflect the activation and degranulation of platelets, and thus, can be used as a marker of platelet contamination in plasma and serum samples. Other components of the sample handling process that do not directly impact on platelet degranulation may also have impact on the accuracy of protein quantification. Thus, we also hypothesized that: samples with normal PF4 levels may have varying levels of cytokines other than TGF-β1 due to the various sample handling procedures such as duration of time and/or the temperature at which blood samples stand prior to preparation.

Methods

Study design

This was a multicenter study, and all of the centers utilized the same protocol which included detailed blood collection methods. All centers received approval from their respective Institutional Review Boards prior to subject enrollment. Only healthy adults aged more than 18 years were eligible for this study. Pregnant women were excluded. Subjects diagnosed with cancer within 2 years prior to the study or with any evidence of acute illness were also excluded. All subjects signed a study-specific, written, informed consent form. Each center collected blood from normal controls and delivered the samples according to protocol instructions (samples from U.S. centers were delivered to Dr. Kong’s lab and samples from Chinese centers were delivered to Dr. Wang’s lab).

Blood draws and sample preparation

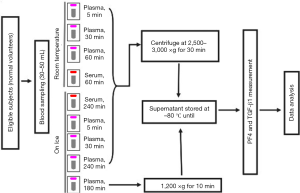

A schema of the study blood draw and sample handling process is shown in Figure 1. A total of 9 tubes (5 mL each) of blood were obtained from each subject, 7 for plasma and 2 for serum analyses. Needles of 19–21 gauge were used. The blood was collected into vacutainers containing K₂ Ethylenediaminetetraacetic acid (EDTA) as anticoagulant for the preparation of plasma (purple top) or into non-additive tubes for the preparation of serum (red top). Although it is commonly used as an anticoagulant during the collection of blood samples, heparin was not allowed for measurement TGF-β1, as it will bind to and enhance the activity of antithrombin III and lead to a higher TGF-β1 level in plasma due to platelet activation and the release of other proteins stored in platelets. EDTA does not have a direct effect on platelet activation and was thus used as an anticoagulant in blood collection for plasma samples of TGF-β1. Collected blood samples were mixed by gentle inversion and immediately placed on ice or kept at room temperature according to the study design. Specifically, six plasma tubes were kept at room temperature (RT) for 5, 30, or 60 min or on ice for 5, 30, or 240 min before centrifugation at 2,500–3,000 ×g for 30 min (5-min-RT, 30-min-RT, and 60-min-RT plasma; or 5-min-on-ice, 30-min-on-ice, and 240-min-on-ice plasma, respectively). The remaining plasma tube was kept on ice for 180 min until centrifugation at 1,200 ×g for 10 min [low-relative centrifugal field (RCF) plasma]. The two serum tubes were kept at room temperature for 60 min or on ice for 240 min before centrifugation at 2,500–3,000 ×g for 30 min (RT-serum or on-ice-serum, respectively).

Figure 1 Blood collection procedures. All plasma tubes were collected in EDTA pre-coated purple-top tubes, and serum samples in red-top tubes without any additives. EDTA, Ethylenediaminetetraacetic acid.

All centrifugation processes were performed at 4 °C. The upper one-third of the plasma or serum supernatant was collected, taking care not to touch the buffy coat. The plasma or serum samples were aliquoted and stored at −80 °C until sample delivery on dry ice.

Cytokine measurement and proteomic analysis

Samples were kept at −80 °C until delivery in dry ice and then stored at this temperature until measurement of cytokine levels. Human TGF-β1 ELISA kits were purchased from R&D Systems (Quantikine^®, Human TGF-β1 Immunoassay. R&D Systems, Inc. Minneapolis, MN, USA). All plasma and serum samples were activated prior to detection using 2.5 N acetic acid/10M urea and were neutralized with 2.7 N NaOH/1M HEPES before TGF-β1 detection. Since the plasma or serum TGF-β1 was activated before detection, this procedure cannot distinguish between the active and latent forms of TGF-β1. Therefore, unless otherwise specified, the term “TGF-β1 level” refers to total TGF-β1.

PF4 levels were determined using ELISA kits from American Diagnostica Inc. (Stamford, CT). Cytokine profiles were measured in PF4-negative plasma samples. PF4-positive plasma samples were not further tested for cytokine measurement. Microsphere-based sandwich immunoassays for flow cytometry were used. This system uses highly sensitive and selective multiplexed assay platforms to simultaneously measure levels of many cytokines in low volume samples, e.g., 29 human cytokines/chemokines in a 25-µL sample. The technology uses multiple sets of microspheres (5.5-µm outer diameter from Luminex, Fisher Scientific) that are embedded with varying concentration ratios of two fluorophores. One cytokine-specific capture antibody is coated on one set of microspheres with an identical fluorophore concentration ratio and serves as the capture bead for a specific cytokine. These different microsphere sets are pooled together to form the assay array. Cytokines bound to the capture antibodies are then subjected to detection antibodies that have a third fluorophore (or fluorochrome). The entire sample set is then assayed by the Luminex Instrument and a plot of internal bead fluorescent intensity (denoting each cytokine) vs. the concentration of the detection antibody fluorophore is obtained. The Luminex Instrument was available in a Core Facility at University of Michigan Medical School. A human cytokine/chemokine Lincoplex kit (Linco Research, Inc., St. Charles, MO, USA) was used to detect the levels of interleukin (IL)-1α, IL-1β, IL-1ra, IL-2, IL-4, IL-5, IL-6, IL-7, IL-8, IL-10, IL-12(p40), IL-12(p70), IL-13, IL-15, IL-17, epidermal growth factor (EGF), eotaxin, fractalkine, granulocyte colony-stimulating factor (G-CSF), granulocyte-macrophage colony-stimulating factor (GM-CSF), interferon (IFN)-γ, IP-10, monocyte chemoattractant protein (MCP)-1, macrophage inflammatory protein (MIP)-1α, MIP-1β, sCD40L, TGFα, tumor necrosis factor (TNF)-α, vascular endothelial growth factor (VEGF), and RANTES (Regulated on Activation, Normal T Cell Expressed and Secreted). This kit was selected as it included most of the important inflammatory and immunomodulating cytokines of our interest.

The proteomic analysis was performed using a previously described method (19,20). Processed samples were sent to the University of Michigan (US Centers) or Peking Union Medical College (Chinese Centers) for assessment of platelet degradation based on PF4 measurement. The testing centers were blinded to the sample processing method.

Statistical analysis

We hypothesized that plasma cytokine levels differ significantly depending on the technique used to prepare samples for analysis. Our preliminary results showed that plasma PF4 and TGF-β1 levels were 12.5±3.8 and 1.9±0.4 ng/mL for well-prepared plasma samples versus 64.8±60.2 and 2.7±0.9 ng/mL for suboptimally prepared plasma samples, respectively. Well-prepared plasma were those with plasma samples prepared according to Kong’s laboratory manual, i.e., blood collected in EDTA tube, with 19–21 gage needle, with blood samples setting in ice less than 2 hours and spun down using 2,500–3,000 ×g 30 min (2-6,9,21,22). Based on these preliminary data, a sample size of 12 from each center would provide at least a 90% study power at a 1% significant level. Linear regression correlation and Student paired t-test were used to test the significance of differences. P<0.05 was considered to be statistically significant.

Results

Study population

A total of 74 healthy volunteers from six centers, three centers from the US and three centers from China, were enrolled in this study. The mean plasma level of TGF-β1 samples from the Chinese centers was not significantly different from that of samples from the US centers; neither the levels of PF4 differed.

PF4 and TGF-β1 measurement

Serum levels of PF4 and TGF-β1 were about 10–29 times higher than those of plasma samples (Figure 2A), and the PF4 level was highly correlated with the TGF-β1 level (P<0.01, Figure 2B). These results were not significantly different across all the participating centers.

Figure 2 Relationship between TGF-β1 and PF4 levels. There are significant difference in levels of both transforming growth factor-beta1 (TGF-β1) and platelet factor-4 (PF4) between serum and plasma (A), and there is a significant correlation between plasma TGF-β1 and PF4 levels (B).

PF4 levels with different blood sat times and temperatures

Table 1 shows the results for PF4 levels measured in plasma and serum samples prepared using nine different methods. PF4 levels did not differ significantly in samples set on ice for 5 or 30 min and then centrifuged of 2,500–3,000 ×g for 30 min. However, in samples that sat on ice for 240 min, artificial increases in the levels of PF4 and TGF-β1 were seen in samples from some centers, but there were no significant differences in the levels of the other cytokines among samples from all centers (Figure 3A). In blood samples that sat at room temperature, the levels of TGF-β1 and PF4 increased significantly, even after only 5 min (Figure 3B). Inadequate centrifugation (1,200 ×g for 15 min) and sitting on ice at 240 min also led to a significant increase in the plasma PF4 level. Interestingly, in samples from one of the centers, the level of PF4 was significantly greater than levels in samples from other centers (Figure 3C).

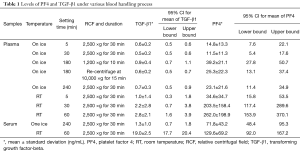

Table 1 Levels of PF4 and TGF-β1 under various blood handling process
Full table

Figure 3 PF4 levels in samples prepared using different procedures. (A) PF4 levels in samples prepared according to the different methods from each center; (B) changes in PF4 levels over time as plasma samples were kept at room temperature; (C) PF4 levels measured after 30 min and 4 hours in individual samples from each center.

Cytokine levels in platelet-poor plasma samples

The levels of 29 cytokines were measured in 38 samples with lowest PF4 concentration, i.e., platelet-poor samples. The results are summarized in Table 2.

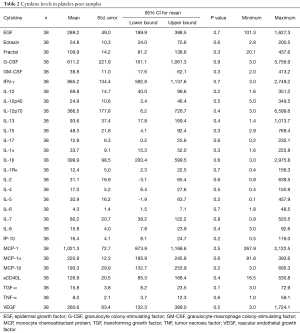

Table 2 Cytokine levels in platelet-poor samples
Full table

EGF, epidermal growth factor; G-CSF, granulocyte colony-stimulating factor; GM-CSF, granulocyte-macrophage colony-stimulating factor; MCP, monocyte chemoattractant protein; TGF, transforming growth factor; TNF, tumor necrosis factor; VEGF, vascular endothelial growth factor.

Sample preparation and proteomic profiles

It is known that there are remarkable differences between serum and plasma proteomes [17–21]. In the present study, poorly prepared plasma samples (as described above with blood samples either sitting at room temperature or inadequately centrifuged) had a different protein profile from that of good plasma samples (Figure 4). Thus, the results of our proteomic analysis indicated that proteomic analyses are also confounded by “malpreparation” of plasma samples.

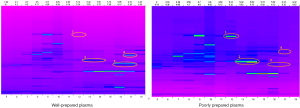

Figure 4 Proteomic profiles of well and poorly prepared plasma samples from the same subject. Well-prepared samples were prepared using the optimal method described above (30 min on ice), and poorly prepared samples were allowed to sit at room temperature for 60 min before blood samples were spun down.

Discussion

This multicenter study including centers from China and United States demonstrated that: (I) the PF4 levels was highly correlated with the TGF-β1 levels in both serum and plasma; (II) serum levels of PF4 and TGF-β1 were approximately 10-fold greater than those in plasma; (III) the level of PF4 in samples remained lower, and no significant difference was seen after 30 min kept on ice, and (IV) many conditions increased the levels of PF4 and TGF-β1, with the variation resulting from various blood processing methods reached over 10 times of the original level (from 1.9 to 20.0 ng/mL). The procedures and steps shown to increase PF4 and TGF-β1 levels included: (I) delayed blood processing with blood samples left at room temperature (1.4-fold increase after 30 min, and 4- to 10-fold increase after 4 h); (II) extended delay in blood processing when samples were kept on ice for 4 h; and (III) inappropriate centrifugal force and duration of centrifugation.

Our results showing a significant correlation between PF4 and TGF-β1 levels are consistent with previous findings (17,18). This confirmed that the source of elevated TGF-β1 was platelet degradation or contamination. PF4 can thus be used as a reliable surrogate marker for platelet contamination/degradation. This is particularly important as kits for PF4 measurement are much less expensive than that of TGF-β1, and the testing procedure for PF4 is simpler.

It is important to note that serum samples had significantly higher levels of PF4 and TGF-β1 than plasma samples. The reason for this may be simple, as the blood clotting process alters the physiological condition, and TGF-β1 and other cytokines may be released from platelets and other blood cells. Nevertheless, it is important to avoid the use of serum for measurement of any biomarkers that may be contained in platelets, such as TGF-β1 and various other cytokines.

The significance of the temperature at which blood samples are kept before plasma preparations as well as the time, even on ice, is extremely important for clinical trials, and the majority of blood biomarker studies have not commented on this important matter and may have obtained misleading results. For example, among studies on the ability of TGF-β1 levels to predict radiation lung toxicity (4,5,8,23,24), two reporting negative results used insufficient gravitational force during the plasma preparation (8,24). These results validated our previous finding from one single Institute that blood sample handing process has significantly impact on the measure level of TGF-β1 in blood (11). This is also in agreement with findings from. Findeisen et al. (25) and Qundos et al. (26) In the former study, they found that the concentration of proteolytic fragments changed in a time-dependent manner. And Qundos’s investigation found that temperature the samples were kept after collection and time intervals between sample collection and centrifugation can significantly influence the proteins profiles. However, Mateos et al. (27) reported that time delay for the first centrifugation of the original blood sample (4 or 24 h) had no significant impact on the distribution of proteins in all samples. But it should be noted that 4 hour’s delayed maybe is enough to cause a complete change of the protein distribution and any time longer has no more effect on it. Of another important note, our results also showed that insufficient centrifugation also increased PF4 levels, suggesting possibilities of platelet contamination.

A variety of pre-analytic factors may affect biospecimen quality and thus biomarker results (28-30). This study was limited in that only sample selection, collection, and processing were studied, without consideration of variations in the physiological conditions of the participants, biospecimen delivery, freezing, storage, and thawing. Systematic studies in Biospecimen Science have been sponsored and conducted by programs such as the US National Cancer Institute’s Biospecimen Research Network [https://biospecimens.cancer.gov/default.asp], and the Standardization and improvement of generic Pre-analytical tools and procedures for In-vitro DIAgnostics project (SPIDIA) [http://www.spidia.eu], a consortium that was funded by the European Union and coordinated by QIAGEN in Germany. We advise researchers particularly cooperative group for clinical trials to follow the best practice proposed by NCI (NCI Best practice for biospecimens https://biospecimens.cancer.gov/bestpractices/2016-NCIBestPractices.pdf), to develop evidence-based practices to guide biospecimen methodology to minimize confounding effect of pre-analytic factors, and mitigate pre-analytic effects when collecting and utilizing stored biospecimens.

In summary, the present study validated an optimal plasma processing method and demonstrated the challenges and feasibility of a multicenter biomarker study. Factors to be considered include collecting blood and preparing plasma samples onsite, delivering specimens for analysis, and having standard assays performed in designated centers for reproducible results. The optimal method should be used for plasma sample preparation. Specifically, to generate platelet-poor plasma for biomarker testing, blood samples should always be stored on ice before centrifugation and should never be left at room temperature. Blood samples should be spun at least 2,500–3,000 ×g for 30 min for plasma preparation. Due to confounding effect of platelets, serum samples are not recommended for testing circulating biomarkers unless it is indicated for a special reason.

Acknowledgements

This study was supported in parts by RTOG translational research program and NIH/NCI R01 CA142840 (FM Kong).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: All centers received approval from their respective Institutional Review Boards prior to subject enrollment. All subjects signed a study-specific, written, informed consent form.
