Augmented fluoroscopy guided transbronchial pulmonary microwave ablation using a steerable sheath

Introduction

Bronchoscopic delivery of microwave energy through the airways using a flexible probe, proposed in 2013 by Ferguson et al. (1), aims to decrease complications related to percutaneous transpleural probe placement, namely pneumothorax (2). Pre-clinical studies (3,4) have demonstrated feasibility and early trials demonstrate encouraging results in humans (5-8). Despite technical advances, such as virtual navigation with electromagnetic navigation bronchoscopy (ENB) (9), robotic bronchoscopy (10), ultrathin bronchoscopy and radial endobronchial ultrasound, transbronchial microwave ablation (MWA) faces two major limitations. Guidance wise, simultaneous visualization of probe delivery and accurate assessment of its position in the target are lacking. Indeed, although this is possible with radial endobronchial ultrasound, most virtual navigation bronchoscopy techniques rely on preprocedural computed tomography (CT) imaging and are thus subject to “CT to body divergence” that decreases navigation accuracy (11,12). Device wise, the bronchoscopic approach is associated with limited stability and flexibility when targeting peripheral lung nodules, despite improvements with robotic bronchoscopy (10,13). These drawbacks become particularly relevant in interventional oncology, where accurate probe placement in the tumor and ability to contemporaneously visualize the ablation zone are key for technical success and local tumor control (14).

Fluoroscopy and cone-beam computed tomography (CBCT) may help overcome these limitations (15,16). CBCT provides intraprocedural three-dimensional imaging from which structures of interest can be extracted and overlaid on fluoroscopy: this augmented fluoroscopy provides a real-time three-dimensional roadmap guidance that has been shown to increase endobronchial biopsies’ diagnostic yield when used with ENB (17,18). In spite of lack of direct visualization, de Ruiter et al. recently showed that augmented fluoroscopy allows the operator to accurately navigate steerable sheaths through the airways and perform biopsies without the use of a bronchoscope (19,20). Contrary to electromagnetic navigation and intermittent cone-beam CT, this real-time fluoroscopy offers the possibility to target moving lesions and/or nodules located outside the airways that would not be directly visualized on bronchoscopy. CBCT can also accurately assess probe positioning with respect to the targeted nodule (11,21) as well as the ablation zone shape and dimensions and monitor treatment effect (22). Additionally, given their smaller outer diameter compared to bronchoscopes, steerable sheaths might offer increased maneuverability in certain specific presentations, and have been shown to offer increased accuracy compared to precurved guiding sheaths (19,20). However, successful MWA of lesions located beyond the airways using this novel approach—i.e., steerable sheaths and augmented fluoroscopy without bronchoscopy—has not been previously evaluated.

In this study, it was hypothesized that navigation under CBCT-based augmented fluoroscopy guidance using a steerable sheath and other common interventional radiologic techniques and supplies allows transbronchial MWA of extra-bronchial targets without the use of bronchoscopy. The primary aim was to evaluate feasibility and accuracy of CBCT-based augmented fluoroscopy guided transbronchial MWA in an in vivo swine lung model with tumor mimicking targets. The secondary aim was to describe histological and correlative radiological findings.

We present the following article in accordance with the ARRIVE reporting checklist (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-21-864/rc).

Methods

Experiments were performed under an animal study protocol (No. 07-11-018) and approved by the Institutional Animal Care and Use Committee. Animals housings were accredited by the Association for Assessment and Accreditation of Laboratory Animal Care International and in compliance with the United States Department of Agriculture Animal Welfare Act and the Guide for the Care and Use of Laboratory Animals.

Procedures and follow-up

Procedures were performed by three interventional radiologists (M.G., F.R., S.B.S.) with 3–20 years of experience in endovascular and percutaneous procedures. Pigs were in a supine position and under general inhalational anesthesia with isoflurane (1–5%). To simulate extra-bronchial lung tumors, two synthetic targets were placed for each pig in separate lobes and outside the airways. Targets were equally distributed between upper/middle and lower lobes and between left and right lungs. Each target consisted of a 0.1–0.2 mL mixture of ethiodized oil: n-butyl cyanoacrylate at 2:1 or 3:1 ratio added to 0.2–0.3 g of Tantalum Powder (Trufill, Cordis, Miami Lakes, FL, USA). The solution was percutaneously injected through a 21G-22G needle under CT guidance. A non-contrast CT scan of the chest was repeated after percutaneous injection of lung targets to rule out eventual complications and confirm target positioning outside the airways.

After target placement, the pig was transferred to the angiosuite (Innova 4100, GE Healthcare, Chicago, IL, USA). A middle inspiration breath hold CBCT of the chest was obtained for navigation planning and processed on a dedicated GE workstation: using a semi-automatic extraction tool, the target lesion, the airways to be navigated and the origins of the other bronchi in the ipsilateral lobe were extracted; the operator then determined a desired final position of the steerable sheath in an airway in proximity to the target, landmarked as “parking point”. Parking point, target volume, and segmented airways were automatically overlaid on live fluoroscopy (ASSIST software, GE Healthcare, IL, USA) to guide the endobronchial navigation. Augmented fluoroscopy provided a real-time three-dimensional roadmap updated automatically with any change in table position, image intensifier rotation, or magnification. Transbronchial MWA navigation planning and guidance steps are illustrated in Figure 1. The interested reader can find imaging acquisition parameters detailed in Appendix 1.

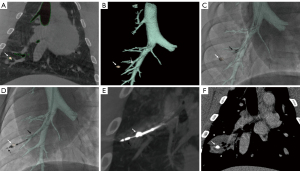

Figure 1 Transbronchial microwave ablation under cone-beam computed tomography based augmented fluoroscopy guidance. Using semi-automatic segmentation on a dedicated GE workstation, the target (white arrow), the targeted airway and the origins of the other bronchi in the ipsilateral lobe were segmented on CBCT (A). The operator determined the desired final position of the sheath in an airway at proximity of the target (white arrow), landmarked as “parking point” (dotted white arrow, B). Extracted structures, here displayed in volume rendering mode (B), were automatically overlaid on live fluoroscopy (ASSIST software, GE Healthcare, IL, USA) to guide the endobronchial navigation (C,D). First step of navigation consisted of parking the steerable sheath’s tip (black arrow) at the parking point (C). Once the steerable sheath’s tip was aimed towards the target, the flexible MWA probe (dotted black arrow, D) was inserted and advanced transbronchially in the target (white arrow), while the sheath remained in the airway (D). CBCT was repeated to confirm the probe’s position in the target (white arrow) before ablation (E). The procedure was successful, with the ablation zone (white arrowheads) covering all the target (white arrow) with ≥2 mm ablation margins, as shown on post-procedural CT coronal section (F). CBCT, cone-beam computed tomography; CT, computed tomography; MWA, microwave ablation.

Endobronchial access was obtained through a 3.5-mm laparoscopic trocar or a 5-mm ENDOPATH XCEL Bladeless Trocar^® (Ethicon, Johnson & Johnson, USA) placed in a T-connector connected to the endotracheal tube. The laparoscopic trocar provided the seal at the endotracheal tube to avoid any air leakage around the steerable sheath. Endobronchial navigation was performed under augmented fluoroscopy only, without bronchoscopy. The primary approach involved navigating through airways to the intended parking point using only a 6.5 Fr steerable sheath (65 or 90 cm length; Destino Twist, Oscor Inc., FL, USA) (Figure 1C,1D). When this approach was unsuccessful, a 4-Fr or 5-Fr vascular catheter with or without 0.035” guidewire was used to navigate the steerable sheath to parking point (secondary approach).

Once at parking point, the catheter’s steerable tip was used to aim for the target under augmented fluoroscopy. While the steerable sheath’s tip remained in the parking position, the flexible probe was introduced through the steerable sheath’s lumen. Once outside the steerable sheath, the probe was advanced through the bronchial wall towards the target under augmented fluoroscopy. Indeed, the MWA probe has a sharp tip that allows to penetrate the wall of the airway and travel across the pulmonary parenchyma. When the probe positioning was deemed optimal based on augmented fluoroscopy, a breath hold confirmatory CBCT was performed (Figure 1E). If the probe position was incorrect, the probe was repositioned at the operator’s discretion under augmented fluoroscopy, and the confirmatory CBCT was repeated. Navigation to technically challenging locations requiring a sharp curve of the sheath is illustrated in Figure 2A,2B.

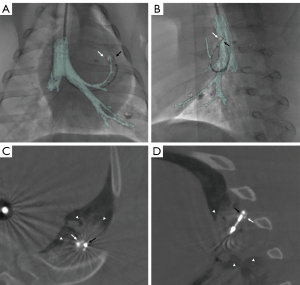

Figure 2 Example of a technically challenging location in left upper lobe. In cases where a sharp curve of the steerable sheath was required, typically for upper lobe targets (white arrow) as shown in this example on real time augmented fluoroscopy images (A,B), the probe was preloaded in the steerable sheath before navigation. Once the parking point was reached, the probe tip was pulled back 1–3 cm upstream of the sheath end to avoid compromising the flexibility of the sheath’s tip. The steerable sheath’s tip was then used to aim for the center of the target as previously described, and the MWA flexible probe (black arrow) was advanced. Once this sharp curve was crossed, the sheath’s tip partially lost its flexibility. In this case, the MWA probe was successfully placed in the target, with a final 5 mm distance from the target center. Post-ablation CBCT (axial in C and sagittal in D) showed complete coverage of the target by the ablation zone (white arrowheads). Note the slight distortion of the bronchial anatomy induced by the introduction of the steerable sheath and the probe (A). CBCT, cone-beam computed tomography; MWA, microwave ablation.

Two types of flexible MWA probes (FLEX4 and FLEX 6, NEUWAVE, Ethicon, Johnson & Johnson) were provided by the manufacturer for the study. The interested reader can find FLEX probe and system presentation, including photos and technical details in Appendix 1. Regardless of target size and location, each target was only ablated once at a power of 100 W for 5 minutes. After the end of MWA, a CBCT was acquired at 10–15 minutes to assess for target coverage by the ablation zone and eventual complications (Figure 2C,2D). The sheath and probe were then removed from the pig’s airways, and the operator navigated and ablated the second target following the same procedural steps. A non-contrast and a contrast enhanced CT scan of the chest were obtained immediately after (Figure 1F), at 24 h, each following week, and before euthanasia.

Clinical parameters including animal’s appetite, cough, and temperature were monitored daily. Pigs were euthanized at the following time points: immediately, 24–48 h, 7–8 days, 13–15 days, and 19 days after MWA, and pathology analysis of the lungs was performed, including measurement of ablation margins (Figures 3,4) and examinations of airways, as detailed in Appendix 1. The aim of the euthanasia at different survival time points was to evaluate the histological modifications of the ablation zone and surrounding lung parenchyma over time.

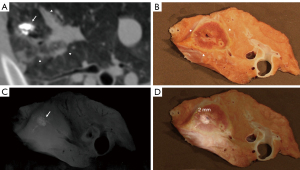

Figure 3 Ablation zone imaging and correlation with histology. Post-ablation CT showing the ablation zone as a ground glass opacity with a peripheral dense rim (white arrowheads) entirely covering the target (white arrow) (A). On the correspondent gross section image, a well-demarcated area of discoloration (coagulation necrosis) surrounded by a fibrotic rim (white arrowheads) is seen (B). Slices were imaged using Faxitron MX20 Specimen Radiography System to confirm target presence in the ablated area (C). Gross image (B) and corresponding radiography (C) were merged and rescaled (D), which allowed to measure minimal and maximal margins using image J software. Here, the minimal ablation margin is illustrated, measured at 2 mm (D). CT, computed tomography.

Figure 4 Macroscopic and histological evaluation of ablation zone. Example of an upper lobe ablation zone examined 24 h after ablation. On macroscopic examination, an ablation zone was immediately apparent as a well-demarcated area of discoloration, with a global ovoid form and a longest diameter parallel to the probe’s tip axis (A). On the corresponding histology section stained with hematoxylin and eosin (B, scale bar =5 mm), three zones were noted from the center to the periphery: coagulation necrosis of all structures (alveoli, airways, and blood vessels) with thermal change (hyalinization of tissues) (a), coagulation necrosis of all structures (alveoli, airways, and blood vessels) with vascular thrombosis, hemorrhage, and edema (b) and viable tissue with acute interstitial inflammation (neutrophils, macrophages, edema) and inflammatory exudate in airways (fibrin, neutrophils) (c). Peripheral lung tissue was normal (d). Note an air-filled cavity seen on both gross image (white arrow in A) and corresponding histology (black arrow in B). Photomicrographs’ scale bar =100 µm (a-d).

Study endpoints

Feasibility was defined as the ability to navigate using only augmented fluoroscopy without a bronchoscope and perform a transbronchial MWA following predefined MWA parameters (100 W-5 minutes). Navigation accuracy was measured on final confirmatory CBCT performed before MWA as the shortest distance in millimeters between the probe and the center of the target. Similarly, the distance between the steerable sheath’s tip, when at parking position, and the target’s center was measured to evaluate the travel distance of the probe outside the sheath and airways through the lung parenchyma. Navigation times were measured as the time interval in minutes between the introduction of the steerable sheath through the endotracheal tube until: (I) reaching the parking point and (II) correct positioning of the probe in the target on final confirmatory CBCT. The number of confirmatory CBCTs performed (excluding initial CBCT used for navigation planning) was recorded. Complications were reported according to the SIR grading system (23).

Ablation zone was defined as the non-enhancing region or the ground glass opacity with a dense rim (24), and was measured on post-procedural CT multiplanar reformatted images (25) created from non- and post-contrast acquisitions: longest axis diameter (LAD) parallel to the probe’s insertion direction, and two orthogonal shortest axis diameters (SAD1 and SAD2). Cavitation on imaging was defined as an air-filled cavity in the ablated parenchyma, excluding the probe’s tract (26). The same ablation zone measurements were performed on gross section images. Since ablation time, power adjustments, and/or a second ablation were not allowed, ablation margins were not study endpoints.

Statistical analysis

Continuous and categorical variables were described as medians [interquartile ranges (IQR)] and raw numbers (proportions, percentages), respectively. Navigation approach (primary vs. secondary) and cavitation on pathology were compared using Fisher’s test. Navigation distances, navigation times, number of confirmatory CBCTs, and ablation zone dimensions on pathology were compared between lobes using Mann-Whitney test. Ablation zone dimensions at imaging time points were compared using Friedman test, and Wilcoxon signed-rank tests with a Bonferroni correction was used for post hoc analysis. Statistical analysis was performed with SPSS (IBM Corp. Released 2019. IBM SPSS Statistics for Windows, Version 26.0). A P value <0.05 was considered statistically significant.

Results

Pigs and targets characteristics

Nine Yorkshire pigs were included in this study. Eighteen synthetic targets with a median largest diameter of 9 mm (IQR, 7–11 mm) were ablated. Ten (10/18, 56%) targets were in the middle third of the lung, and 8 (8/18, 44%) were located at the peripheral third. No CT bronchus sign was observed. Complications after transthoracic percutaneous target placement occurred in 4 (4/9, 44%) pigs: 2 (2/9, 22%) small, asymptomatic and stable pneumothoraxes not requiring chest tube placement, 1 (1/9, 11%) minimal asymptomatic intra-alveolar hemorrhage that resolved without intervention (grade: mild), and 1 (1/9, 11%) complete and symptomatic pneumothorax that required an 8.5-Fr pigtail catheter placement (grade: moderate). The pneumothorax was completely drained before starting the procedure, which did not affect the endobronchial navigation. The chest drain was removed the second day. It is worth mentioning that these complications occurred following target placement in lungs and were not due to the transbronchial MWA procedure. Targets characteristics are detailed in Table 1.

Feasibility, navigation accuracy and time

Transbronchial MWA using augmented fluoroscopy guidance and without a bronchoscope was feasible in all target locations. Median needle to target distance was 2 mm (0–4 mm). Accuracy was higher for lower/middle than for upper lobes [0 mm (IQR, 0–4 mm) vs. 4 mm (IQR, 3–8 mm), P=0.04]. The primary approach using only a steerable sheath allowed adequate navigation in 11 (11/18, 61%) targets, and was more frequently used for middle/lower lobes. Median navigation time to reach the parking point and the target were, respectively, 6.5 minutes (IQR, 3.3–22 minutes) and 27 minutes (IQR, 13–40 minutes). Navigation times were shorter for middle/lower lobes. Similarly, navigation time to target decreased with experience, with a median of 36 minutes (IQR, 20–73 minutes) for the first three pigs vs. 24 minutes (IQR, 12–39 minutes, P=0.3) for the following pigs. Probe positioning was correct the first time in most cases (10/18, 56%), with only one confirmatory CBCT required. The MWA probe was repositioned only once, which required a second confirmatory CBCT, in 5 cases (5/18, 28%). Navigation outcomes and comparisons are detailed in Table 2.

MWA outcomes and imaging findings

On immediate post-procedural CT, the ablation zone consisted of consolidation with hypodense non-enhancing center in 13 ablations (13/18, 72%), ground glass opacity with a dense rim in 2 ablations (2/18, 11%), and only ground glass opacity in 3 ablations (3/18, 17%). On immediate post-procedural CT, median LAD was 38 mm (IQR, 30–40 mm). Ablation zone size peaked on day 7–8 then decreased on day 13–19 (Table 3). Cavitation was immediately observed after 10 ablations (10/18, 56%), and partially decreased in size or remained stable on 1 and 2 weeks follow-up. In 9 ablations (9/18, 50%), there was atelectasis, consolidation, and/or air bronchograms in the parenchyma, downstream from the parking point. No signs of pulmonary infarct were observed.

Complete coverage of the target by the ablation zone was achieved in 17 (17/18, 94%) targets. In the single case where the target was outside the ablation zone, the target was in the anterior part of the left upper lobe, with a final needle-target distance of 10mm. The probe exited a large airway (>5 mm) and was immediately in contact with a large (>5 mm) pulmonary artery, which may have resulted in heat-sink effects and yielded a small ablation zone of 15×12×10 mm³ on CT. The median maximum temperatures reached during ablation and at the end of the ablation were measured through the flexible probe thermocouple at 88.5 °C (IQR, 83–90 °C) and 73.5 °C (IQR, 66.3–79.5 °C), respectively.

Safety

No severe or life-threatening complications occurred during transbronchial MWA, in particular, no pneumothorax or hemorrhage. Post-procedural pain (inappetence) occurred in 1 pig (Pig 8) and was treated medically (buprenorphine 0.005 mg/kg intravenously and meloxicam 0.4 mg/kg injectable or oral). Rib fractures were observed in the ablation zone in 2 pigs (Pigs 6 and 7) and were treated medically (grade: moderate). These ablations were in the apical segment of the right upper lobe, which is particularly narrow in pigs, and both ablation zones covered adjacent ribs (27). A slight pleural effusion was observed in 1 pig (Pig 7) the day following MWA and spontaneously resolved on 1-week follow-up (grade: mild). Pig 7 also had inappetence, intermittent cough and leukocytosis on day 9, but no fever or new consolidation on imaging were observed. Symptoms resolved after 3 days of intramuscular injections of ceftiofur at 4 mg/kg (grade: moderate).

Pathology

Eight pigs had histopathologic analysis for a total of 16 ablated targets. The first study pig only underwent post-procedural CT analysis before euthanasia. At macroscopic examination, ablation zones appeared as well-demarcated areas of discoloration with an ovoid form (Figure 3B, Figure 4A and Figure 5A). Heat sink effect in contact with >3 mm vessels and >3 mm bronchioles occurred in 6 (6/16, 38%) targets. An example of heat sink effect seen on both macroscopic examination and corresponding histology section is shown in Figure 5A,5B. Ablation zone dimensions on gross pathology were larger in upper lobes and peripheral targets (Table 4). LAD on gross pathology correlated well with LAD on the CT done the day of euthanasia (Pearson correlation coefficient =0.80, P<0.01).

Figure 5 Ablation zone with heat sink effect. Example of heat sink effect (arrow in A and B) in contact with a 3-mm artery, here shown on an examination performed 8 days after ablation, on both macroscopic examination (A) and corresponding histology section stained with hematoxylin and eosin (B, scale bar =2 mm). Three zones were noted from the center to the periphery (B): coagulation necrosis with thermal change (a), coagulation necrosis with marked neutrophilic and histiocytic inflammation, hemorrhage, and edema (b) and viable tissue with fibrosis, epithelial hyperplasia, and neutrophilic inflammation of airways and alveoli (c). Peripheral lung tissue was normal (d). Photomicrographs’ scale bar = 100 µm (a-d).

On histology (Figure 4B), ablation zones were composed of three zones in pigs euthanized at 24 h after ablation, from center to periphery: (I) coagulation necrosis with thermal change, (II) coagulation necrosis with vascular thrombosis, hemorrhage, and edema, and (III) viable tissue with acute interstitial inflammation. In pigs that survived 7–8 days (Figure 5B), inflammation zone displayed fibrosis and epithelial hyperplasia of airways and alveoli. Fibrosis was more apparent in pigs euthanized after 2 weeks. The lung tissue outside the ablation zone was normal. Air-filled cavitation (Figure 4A,4B) in the necrotic zone occurred in 10 (10/16, 63%) cases. Additional findings and ablation margins are in Table 4.

Discussion

This is the first study demonstrating feasibility and accuracy of transbronchial MWA under CBCT- augmented fluoroscopy guidance using only a steerable sheath without bronchoscopy. In a swine model with extra-bronchial tumor mimics, the procedure was feasible in all target locations, with a final median distance from the needle to the target center of 2 mm, and no ablation-related pneumothorax or life-threatening complications. This high accuracy is in line with a previous study on CBCT-augmented fluoroscopy guidance that reported a 4.0–4.9 mm error for airway navigation with the same sheath but without tumor targets (19). In comparison, Eberhardt et al. reported a mean error of 9 mm for ENB, and Yarmus et al. reported a median of 4 mm miss with robotic bronchoscopy, despite larger lesions and higher CT bronchus sign rate (10,28). Accuracy comparison to bronchoscopy is however limited given differences in target locations, with 56% targets placed in the middle third of the lung in this study. Accuracy reported in our study reflects “real life” performances with this technique, and is in fact related to augmented fluoroscopy guidance errors and to the flexibility/maneuverability of the devices used for probe positioning.

Most endobronchial navigation systems rely on chest CT performed several days before the procedure. Differences in lung anatomy between the preprocedural CT and the day of the procedure can lead to significant mismatch between the real target location and the virtual navigation map (“CT to body divergence”), decreasing navigation accuracy (11,12). In contrast, CBCT is performed immediately before navigation, in the same position and under the same ventilation and anesthesia parameters. The provided augmented fluoroscopy map is automatically registered to the patient without manual fusion and allows real time assessment of probe positioning relative to the lesion during the procedure. Besides eliminating issues related to “CT to body divergence”, real-time fluoroscopy offers the ability to target lesions located away from the airways that would not be visualized on bronchoscopy. As shown in this study, the bronchus was punctured away from the target, and optimal needle positioning under imaging guidance was not dependent on a bronchus leading to the nodule. Another advantage of real-time imaging is the possibility to target moving nodules, without the need for multiple probe positioning and repeat CBCT. Although this approach does not allow mediastinal staging, most of lung thermal ablations are performed on lung metastasis where lymph node staging is not required. Regarding radiation safety, dose area product per target was measured at a mean of 81.7 Gy.cm², in concordance with the patient dose reference levels proposed for fluoroscopically guided interventional procedures (29).

Although a slight distortion of the bronchial anatomy compared to the augmented fluoroscopy map was sometimes noticed with probe introduction in some challenging locations (Figure 2A,2B), this was less with the sheath than a bronchoscope. A confirmatory CBCT clarified needle position in the target. This confirmatory CBCT can be used to update the augmented fluoroscopy navigation map once the parking point is reached, although this was not needed in this study (19). Navigation time was compatible with regular clinical settings, with a median time to reaching the target of 27 minutes compared to a mean of 116.2 minutes with transbronchial MWA using ENB (7).

As for flexibility of the devices, the obtained high accuracy provides further evidence supporting the use of steerable sheaths and the ability to maneuver them through distal airways (19,20). However, higher accuracy and lower navigation times were obtained for lower lobes compared to upper lobes. Difficulty negotiating upper lobes after a sharp curve was due to a limited maximum delivery angle of the steerable sheath, which was particularly reduced after insertion of the MWA probe. Indeed, the MWA probe has a straight rigid tip of 1 cm that made the sharp turns more difficult. This is similar to maximum needle delivery angle loss previously described after insertion of a biopsy needle through the steerable sheath (22), and emphasizes two main limitations of this technique. First, the operator’s ability to advance the steerable sheath and to steer its tip may be compromised after negotiating the sharp curve required to reach upper lung lobes. Improvements in flexibility of the steerable sheaths may overcome this shortcoming. Second, managing sharp curves with the probe’s straight rigid tip of 1 cm may be challenging. Preloading the probe in the steerable sheath before navigation can be helpful. A less stiff microwave probe would also help facilitate the procedure. Considering these limitations, careful attention must be given to navigation planning.

In comparison to a percutaneous approach, one of the major strengths of transbronchial MWA is that the flexible probe does not transgress the pleura, which resulted in no pneumothorax. Rib fractures within the ablation zone have been previously described following percutaneous ablations performed close to the chest wall (30). These fractures are probably a consequence of bone necrosis induced by high temperature of the MWA (30). Tethering of the rib to the ablation zone resulting in extensive traction on the bone may also be involved (30). Transbronchial access may also facilitate ablation of central tumors in proximity to major airways or major vessels, offering an alternative or complementary approach for nodules difficult to target percutaneously. Regarding hemoptysis, none occurred following transbronchial MWA in our study. Although it is acknowledged that this remains a major concern, and that lack of direct visualization when only using steerable sheaths may be a limitation, it is often asymptomatic in the lungs (31), and life-threatening hemorrhage are very rare (32). If massive hemoptysis occurs after or during ablation, an endobronchial blocker may be placed under fluoroscopic guidance (using the catheter or wire already in place) in order to stabilize the patient before definitive treatment such as arterial embolization (33).

Histology confirmed complete coagulation necrosis, with some cases of susceptibility to heat sink effect (26). Ablation zones were larger in upper lobes and peripheral targets due to regional variations in ventilation and perfusion, again similar to percutaneous ablations (34). However, occlusion of the bronchus by the steerable sheath may induce atelectasis. Putting in communication the lung parenchyma with the airways or ablations proximity to segmental bronchi probably explains the high rate of cavitation observed (26,35,36), although the clinical significance remains uncertain (37). In contrast to transbronchial MWA, percutaneous procedures can be performed under conscious sedation (38).

While the use of CBCT-based augmented fluoroscopy guidance is expected to improve endobronchial navigation accuracy, percutaneous lung biopsy is still associated with higher diagnostic yield compared to endobronchial biopsies (17). This supports the need for prospective randomized clinical trials comparing endobronchial MWA outcomes to the established percutaneous approach that has been associated with high local tumor control rates, in particular for lesions <2–3 cm (39-42).

This study has several limitations. First, this was a small animal study and further data are required to evaluate the safety of this technique. Second, thermal ablations were only performed on synthetic targets in a healthy lung. Effect of tumor histology and density on needle penetration and ablation outcomes could not be assessed. Third, differences in airways anatomy between swine and humans might limit generalization of accuracy results (27). Fourth, no randomization of target locations was performed, although care was taken to equally select bilateral targets, in both upper and lower lobes. Fifth, tool-in-catheter deflection was not measured. Finally, a bronchoscopy was not performed after the ablation to assess for endobronchial complications, but this was ruled out by clinical and imaging follow-up and gross examination of the airways.

Conclusions

In summary, transbronchial MWA under CBCT-based augmented fluoroscopy using a steerable sheath and without bronchoscopy is feasible and accurate. While it offers an interesting alternative that decreases the risk of pneumothorax, comparison to the established percutaneous approach is needed to determine optimal patient selection parameters. Central tumors located near large airways, tumors with a CT bronchus sign or patients who would not tolerate a pneumothorax may be potential targets.

Acknowledgments

The authors thank Govind Srimathveeravalli who provided valuable advice regarding the lungs’ fixation technique; we thank Christopher Cheleuitte-Nieves, Margaret Reilly, Joann Phifer, Yuliana Miranda, Stephanie Harris-Ash, and Brian Cuevas who helped with animal experiments; we thank Jacqueline Candelier who helped with necropsy.

Funding: This work was supported by Johnson & Johnson. This research was funded in part through the NIH/NCI Cancer Center Support Grant P30 CA008748.

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-21-864/rc

Data Sharing Statement: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-21-864/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-21-864/coif). MG is a grant recipient for a postdoctoral research fellowship from GE Healthcare. RD is a GE Healthcare employee. LM is a full-time employee of NeuWave Medical. KR is a full-time employee of NeuWave Medical. EZ has research grants from SIR, RSNA, NANETS, MSK, AACR, Ethicon, Novartis. ALT has research grants funding from Boston Scientific and Johnson and Johnson; receives consulting fees from Boston Scientific, AstraZeneca, Johnson and Johnson, and Endocare. RDS is a consultant and speaker for NeuWave Medical and Varian; a consultant for Ethicon; a speaker for Boston Scientific. SBS is a shareholder and grant recipient from Johnson & Johnson; a consultant for Olympus, Microbot, Varian, Xact Robotics, Aperture Medical and Advantagene; has grants from GE Healthcare, AngioDynamics and Elesta. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Experiments were performed under an animal study protocol (No. 07-11-018) and approved by the Institutional Animal Care and Use Committee. Animals housings were accredited by the Association for Assessment and Accreditation of Laboratory Animal Care International and in compliance with the United States Department of Agriculture Animal Welfare Act and the Guide for the Care and Use of Laboratory Animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
