Ultra-low-dose intraoperative X-ray imager for minimally invasive surgery: a pilot imaging study

Introduction

Lung cancer is the leading cause of cancer-related deaths, and its incidence is increasing worldwide (1). According to epidemiology reports on non-small cell lung cancer (NSCLC), cancer-related deaths mostly occur in people over the age of 65 years (2). With the introduction of lung cancer screening programs with low-dose chest computed tomography (CT) scans, thoracic surgeons frequently encounter incidental findings of lung lesions suspected of malignancy (e.g., solid lesions >8 mm or subsolid lesions ≥6 mm), which require subsequent percutaneous transthoracic needle biopsy for selected populations (3). However, percutaneous biopsy may not provide findings for semi-solid or pure ground-glass nodules, and surgeons cannot access central or perivascular lesions because of serious fatal complications associated with percutaneous procedures (4,5). Video-assisted thoracoscopic surgery (VATS) may be an alternative option to provide tissue specimens for accurate diagnosis, followed by anatomical lobe resection during surgery (6). If indicated, sublobar resection, including wedge resection or segmentectomy, may also be considered to preserve pulmonary function in selected patients with small (<2 cm) peripheral lung cancers (7). Recent studies have shown that sublobar resection performed with an appropriate localization procedure can yield oncological results similar to those of conventional total lobectomy (8-10). Therefore, there has been growing interest in various localization techniques to visualize the exact location of the lesion or provide adequate resection margins during image-guided surgery (11,12).

Direct finger palpation through a small incision or indirect palpation with a surgical instrument can be used to guide the target lesion during VATS. However, the success rate is relatively low (approximately 30–40%) and often results in subsequent conversion to open thoracotomy. Therefore, various image-guided localization techniques have been proposed, including hook wires (13-16), microcoils (17,18), radiocontrast agents (19-21), radioisotopes (13), and fluorescent dyes (22,23). These techniques are applied before surgery under CT or electromagnetic navigational bronchoscopy guidance (24). Surgeons then use C-arm fluoroscopy (25,26), cone-beam CT (27,28), radioprobe (13)^, or near-infrared camera (29,30) during surgery to support the exact identification of lung lesions.

However, real-time fluoroscopy and CT scans cause a high risk of radiation hazard to both patients and surgical teams (31) because the long-term use of heavy radiation-protective garments (32) is associated with the occupational hazard of musculoskeletal pain and fatigue in surgical team members. In addition, fluoroscopic C-arm and CT require additional space in the operating room and personnel to operate them.

To overcome these limitations and improve the localization capability of current techniques used for image-guided surgery, we developed an intraoperative X-ray device. Our proposed device is a hand-held and clamp-shaped endoscopic instrument that employs a carbon nanotube (CNT)-based X-ray source, allowing for a compact design that is optimal for VATS and ultra-low-dose X-ray imaging (Figure 1). We present the following article in accordance with the ARRIVE reporting checklist (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-21-909/rc).

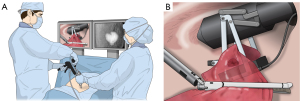

Figure 1 Minimally invasive thoracoscopic surgery for pulmonary nodules. (A) Intraoperative imaging; (B) resection of pulmonary lesion guided by proposed X-ray device.

Methods

Development of intraoperative X-ray imager

The proposed device is a hand-held X-ray device that employs a compact X-ray source (VSI, Korea) based on CNTs. The maximum tube voltage and current of the X-ray source were 60 kVp and 3 mA, respectively. The X-ray source was 15 mm in diameter and 75 mm in length, covered with a ceramic-based material for low-energy X-ray filtering and leakage shielding (Figure S1). Unlike conventional X-ray generators used for CT or C-arm fluoroscopy, our imaging protocol only requires X-ray irradiation for 20 ms; therefore, the X-ray device does not require an additional cooling module. We used a dental X-ray sensor (HDR-600, Handy, China) suitable for low-dose X-ray imaging. The X-ray sensor has a field-of-view (FOV) of 36 mm × 27 mm and offers high spatial resolution of 12 to 14 line-pair/mm.

To explore the feasibility of proximal X-ray imaging, X-ray images were obtained while changing the distance between the radiation source and sensor in the range of 1–5 cm (Figure S2). Proximal X-ray imaging studies have shown that our device requires a sufficient source-to-sensor distance of at least 4 cm to avoid image distortion in terms of the saturation of the X-ray pixel intensity.

The proposed X-ray device is equipped with imaging and tissue clamping modules, as follows (Figure S3):

• Imaging module (X-ray source, sensor, and sensor manipulator): both the X-ray source and sensor are covered with thin acetal-based plastic. The X-ray source is installed on the top of the insertion body to irradiate the X-rays toward the central FOV of the X-ray sensor installed at the bottom of the insertion body. The X-ray source and sensor are designed to be aligned and spaced from each other at a distance of 4 cm inside the human body to achieve uniform irradiation throughout the sensor FOV.
• Tissue clamping module (clamper and clamp modulator): the tissue clamping module includes a clamper made of aluminum. The clamp is designed to fix the tissue slightly and prevent unwanted movement while intraoperative X-ray imaging is performed. The clamper manipulator allows the position of the clamper to be adjusted such that the clamper can move freely between the X-ray source and the sensor.

Figure S3 shows the step-by-step operation of the device. The X-ray imaging device was designed to be inserted into the human body by moving the sensor manipulator forward to achieve a minimal insertion diameter. Next, the X-ray source and sensor are separated from each other by pulling the sensor manipulator inside the human body. Once the target lesion is well placed by adjusting the clamper manipulator, X-ray images are obtained.

The operation of our device based on the CNT source is digitally manipulated based on a digital function generator and a field-emission transistor-based control module for X-ray emission and parameter adjustment (e.g., tube voltage, tube current, and exposure time). X-ray imaging is performed by triggering the X-ray source using an external footswitch. When switched on, the X-ray is emitted for a pre-set exposure time at a fixed tube voltage and current. The acquired images are then transferred to the data acquisition computer via the universal serial bus (USB) 2.0 serial communication protocol, and the acquired images are displayed through the monitor and automatically saved to the computer. The total data acquisition time was less than 5 s, including 20 ms of X-ray irradiation. Custom-made data acquisition software provides post-processing of the acquired X-ray images, including image rotation, color map inversion, and brightness and contrast adjustment.

System characterization

The equivalent radiation dose for a single shot scan was measured using a calibrated radiation dosimeter (RaySafe, Sweden). The dosimeter was installed 1 m from the focal spot of the X-ray source. In the measurements, we averaged the radiation dose for 10 consecutive X-ray shots using the following parameters: tube voltage, 40 kVp; tube current, 2 mA; and exposure time, 20 ms.

The spatial resolution of the X-ray imaging system developed in this study was measured using a standard X-ray lead bar phantom (07-553; Fluke Biomedical, US), which featured multiple lead bars of varying sizes ranging from 0.25 to 10 line-pair/mm. The phantom images were acquired using the same X-ray irradiation parameters used in the radiation conduction measurement experiment, mentioned above (i.e., tube voltage of 40 kVp, tube current of 2 mA, and exposure time of 20 ms).

Animal models

Animal experiments were performed under a project license (No. KOREA-2017-0030) granted by institutional review board of Korea University College of Medicine, in compliance with institutional guidelines for the care and use of animals.

In this study, we used a pig ex vivo lung to create pseudo lung lesions. Under general anesthesia, the pig was then intubated and ventilated with 50% oxygen at a respiratory rate of 18/min with a tidal volume of 10 mL/kg. Continuous isoflurane inhalation (2–3%) was used to maintain an appropriate level of anesthesia. At the left lateral decubitus position, the entire lung was exposed through a left thoracotomy. Pseudonodules were created by direct injection of 1–2 mL of liquid agar mixed with lipiodol into the lung parenchyma at different locations and depths from the pleura, as shown in Figure 2.

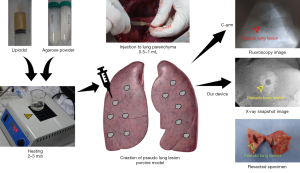

Figure 2 Creation of pseudo lung lesion using agar and lipiodol in porcine model.

The X-ray device was placed on the lung surface, the pseudo lung nodule was grasped, and spot images were obtained using the proposed devices. Various exposure times, voltages, and amplitudes of the X-ray source were tested to derive optimized device settings for lung nodule identification. The lungs were harvested after euthanasia. The lung tissues, including localized pseudo lung lesions, were palpated and bluntly excised. We compared the photographic images of the gross specimen with the radiologic images obtained using the proposed device.

VATS in animal model with pseudo lung lesion

In vivo and ex vivo X-ray imaging studies were performed using an animal model. Under general anesthesia, a double-lumen endotracheal tube was inserted into the trachea through a tracheostomy while maintaining one-lung ventilation. In the lateral decubitus position, VATS ports were created for the simulation. After the lungs were fully deflated, a mixture of agar and lipiodol heated to 150 ℃ was injected to create pseudo lung nodules. The insertion body of the proposed device was placed on the lung surface, and the lung tissue was grasped to examine the nodule. After locating the target, the parenchyma was grasped with clamping jaws, and the nodule was excised with an endoscopic stapler. Finally, we examined the resected lung to identify the lesions and corresponding radiographic images (Figure S4).

Lesion detectability assessment

We assessed lesion detectability depending on the concentration of the radiocontrast agent and depth of the pseudonodules (Figure S5). Pseudonodules were created using heated agar and lipiodol in the whole pig lung. The four pseudonodules were grouped according to the amount of agar and Lipiodol mixture and the depth from the visceral pleura in the deflated pig lung (Table 1).

In group 4, we failed to detect two pseudolesions because the agar with lipiodol was extravasated. We evaluated the lesion detectability of our device in terms of signal-to-noise ratio (SNR) as follows:

SNR=10⋅log⁡(μnoduleσbackground)dB[1]

where μ_nodule is the mean pixel intensity drawn around pseudo lung nodules and σ_background is the standard deviation of pixel values, measured at the image background.

In addition, we preliminarily evaluated the X-ray image quality of 17 lung nodule samples obtained from patients with cancer. Five samples were imaged using radioactive agents and 12 were imaged without injecting a radioactive agent. X-ray imaging of human cancer specimens was performed ex vivo using the proposed device. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and approved by institutional board of Korea University Guro Hospital (No. 2017GR0018). Informed consent has been obtained from all individual participants included in this study.

Results

System characteristics

When measured using a radiation dosimeter placed 1 m in front of the X-ray focal spot, the radiation dose was 129±16 nGy/shot. The radiation dose was 53±10 nGy/shot when the dosimeter was placed behind the X-ray focal spot (Figure S6). In addition, our proposed device clearly resolved the lead bar patterns with a spatial resolution of up to 8.5 line-pair/mm, which was sufficient to determine the resection margin of lung nodules through the X-ray images obtained using the proposed device.

In vivo and ex vivo detection of pseudonodules

X-ray images of the pig models captured with the proposed device are shown in Figure 3. The pseudonodules, created in the lung parenchyma by injecting a mixture of agar and lipiodol, also known as ethiodized oil, are indicated by arrows. In the pig models, in vivo X-ray images were captured and ex vivo X-ray images were captured after lung resection. Figure S7 shows the ex vivo X-ray images obtained using the proposed device and the corresponding CT images (Brilliance 64; Philips, Amsterdam, Netherlands) of pseudonodules in pigs created with different volumes of the agar and lipiodol mixture (1 and 2 mL) and at different pleural depths (0.5 and 1 cm). Four nodules in groups 1, 2, and 3 and two nodules in group 4 were detected on our device. The SNR values of the detected pseudolesions in the X-ray images are summarized in Table S1.

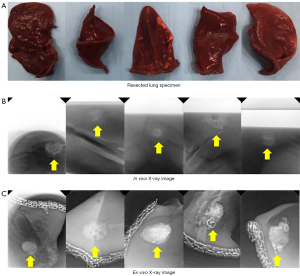

Figure 3 In vivo and ex vivo X-ray images of pseudolesions in the lung samples of pigs. (A) Resected lung tissues; (B) in vivo images; (C) ex vivo images.

The borders of the nodular shadows are clearly shown in the X-ray images taken by our proposed device, except for the images in Figure S7, in which the radiocontrast has been extravasated. No image quality degradation was observed owing to the change in the pleural depth of the nodule.

During the simulation in pigs, the radiation exposure rate of the proposed device was measured using a radiation dosimeter (PM1405, POLIMASTER, Belarus) and compared with that of the conventional C-arm (C-arm Ziehm Vision, Ziehm Imaging GmbH, Nuremberg, Germany) and mini C-arm devices (Star-X Intraoral X-ray, HDX Will, Seoul, Republic of Korea). As shown in Figure S8, the proposed device (0.1±0.0006 μSv/h) yielded significantly lower radiation than conventional C-arm fluoroscopy (41.5±51.8 μSv/h) and mini C-arm for dental or hand surgery (6.9±5.4 μSv/h). In addition, no change in temperature was observed when measuring the temperature of the plastic cover of the clamp body after 12 consecutive irradiations every 5 s, which addressed the potential safety issue owing to thermal damage to normal tissues (Figure S9).

Ex vivo imaging of human lung cancer specimens

To evaluate the clinical applicability of the proposed device for detecting tumors during VATS, solid lesions located deep in the lung parenchyma were resected and X-ray images were obtained. Because our device has not yet been approved as a medical device, in this preliminary experiment, the lung lesions were scanned after resection. In three patients with lung cancer, anatomical resection was performed using a VATS technique, and the specimen was removed. The lesions were then palpated and marked using a needle. In the X-ray images obtained using the proposed device, a solid lesion appeared in the right lower lobe. No radiocontrast or hook wire was inserted before VATS. This case demonstrates that our method can clearly visualize solid tumors in the lung parenchyma without the need to insert preoperative radiocontrast agents (Figure 4).

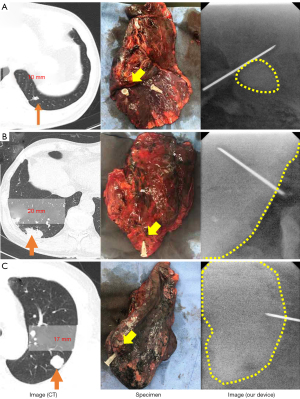

Figure 4 X-ray image of human lung cancer specimens acquired using computed tomography (CT) and our device without injecting radiocontrast agent. (A) Case of a 55-year-old male patient with a 10-mm-sized solid lesion in the left lower lobe of the lung with suspected lung metastasis from colorectal cancer. (B) Case of a 68-year-old male patient with 20-mm-sized primary early lung cancer in the right lower lobe. (C) Case of a 68-year-old male patient with 17-mm-sized primary lung cancer in the left upper lobe. Although no radiopaque contrast agents such as lipiodol were injected before or during the surgery, the X-ray images obtained using the proposed device clearly show the needle-marked solid lesion.

In non-solid lesions of lung specimens, localization might be needed to identify the resection line for accurate resection as the target is not visible and not palpable (Figure 5). The images from our proposed device (Figure 5D) clearly showed a localized lesion with radiocontrast compared with the images from C-arm fluoroscopy (Figure 5E).

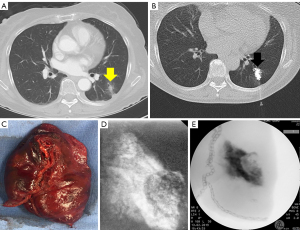

Figure 5 Comparison of intraoperative image taken by our proposed device and C-arm fluoroscopic image in lung cancer specimen localized with radiocontrast. (A) Chest computed tomography (CT) scan of ground glass lesion (yellow arrow); (B) CT-guided injection of radiocontrast to the lung lesion (black arrow); (C) resected lung cancer specimen; (D) image taken by our device; and (E) fluoroscopic image of the lung cancer specimen.

Discussion

In this study, we developed an ultra-low-dose in situ X-ray imaging device that supports VATS in real time. In animal studies, we demonstrated that our device provided X-ray images of the localized lung nodules with a sufficiently high spatial resolution and remarkably reduced radiation exposure to the surgical team. It was also possible to detect solid lesions in lung cancer specimens from patients using the proposed device even without the use of radiocontrast. These results indicate that the proposed method may be useful for identifying the pleural location at which the resection should begin. In addition, this feature allows us to obtain sufficient resection margins for sublobar resection of cancer, which is essential for reducing locoregional cancer recurrence (33,34).

The X-ray device proposed in this study yielded a significant reduction in radiation exposure. The radiation dose of our device was 53–130 nGy, which is only 1/400 of that used with C-arm fluoroscopy. The main reason for the reduced radiation dose and negligible temperature problem using the proposed device is that the distance between the X-ray source and sensor is small and the total thickness of the imaging subject is remarkably low. As the lesion and other organs do not overlap, the amount and penetration power of X-ray photons need not be as high as those of C-arm fluoroscopy and CT (35,36). In addition, high-contrast X-ray images can be obtained because the ratio of the scattered X-ray photons is relatively small. We expect that further technical improvements to the device will be useful for finding small non-calcified pulmonary nodules that are difficult to be detected using C-arm technology. Meanwhile, a fluorescence based imaging technique is also widely used to further reduce radiation exposure during nodule localization. However, this technique still suffers from detecting the exact location owing to the spread of the fluorescent materials, or identifying deep-lying lesions. Moreover, the CT-based prelocalization procedure cannot be skipped as well.

Using the device proposed in this study, an image of a pulmonary nodule of interest can be acquired within 5 s, providing information on the resection margin of the pulmonary nodule in near real-time. Because the approximate margin of resection can be identified through CT images obtained for diagnostic purposes before surgery, gross inspection of lung tissues using C-arm or cone beam CT in the operating room is currently quite redundant.

Moreover, rapid acquisition time and temperature stability allow repetitive scanning with our device, preventing the transition to open surgery, which can be caused by incorrect resection or improper removal of the nodule-of-interest (37).

Our proposed device is worth considering for image-guided surgery using robots. However, as there is no tactile sensation during robotic surgery, palpation of nodules is limited in sublobar resection of lung lesions (38). It is also difficult to use C-arm or cone-beam CT in an operating room equipped with a robotic system. Therefore, combining our new real-time intraoperative imaging device with a robotic device will be useful for localizing lesions and determining surgical margins during robotic surgery. Potentially, our device also might provide a feasible method in laparoscopic gastrointestinal surgery with endoscopic marking to achieve safe resection margin with or without fluorescent dye (39).

Limitation

Our device showed the limitation in detecting non-solid lesions without the use of a radiologic marker. The detection of non-solid lesions, such as ground glass opacity (GGO) lesions, is still challenging even in open surgery with finger palpation. We are currently improving our X-ray device by utilizing an advanced CNT X-ray source (i.e., small but with high X-ray output) and high-resolution digital image sensor. We believe that our next-generation X-ray device would potentially be beneficial in detecting the GGO lesions without using radiologic markers along with the help of an artificial intelligence-based image analysis technology.

To use the proposed X-ray device in clinical practice, an additional research and development to reduce the device size is needed. Currently, in VATS, the size of the incision for the camera and devices is 5–20 mm, or in the case of a wound protector, it has an oval shape of 30–40 mm. The CNT-based source we currently use has a diameter of 15 mm; however, after adding electrical and radiation shields, the diameter increases to 46 mm. Currently, research is underway to minimize the size of the final device by reducing the diameter of the CNT source to 7 mm and lowering the tube voltage required for X-ray imaging. For intrathoracic use, the diameter of the devices should be 20–30 mm. A circular stapler with a diameter of 28–33 mm is used through the narrow intercostal space during thoracoscopic esophageal cancer surgery, which is expected to be the largest diameter of the instrument that can be used without significant interference (40,41).

Careful consideration of radiation and electrical safety is necessary because our devices are used in the body and can directly affect internal organs. There are devices that irradiate X-rays for therapeutic purposes by placing them in a body cavity, and our device is relatively safe because it requires significantly lower X-ray tube voltages and currents than those required for treatment purposes (42). Further investigations on the user convenience of the proposed device based on the requests of thoracic surgeons are also required.

Conclusions

In this study, we introduced a novel concept of an intraoperative X-ray imaging device that can be useful for VATS and demonstrated its feasibility by performing in vivo and ex vivo studies of pseudonodules using animal models and preliminarily acquiring X-ray images of human lung nodules without injecting radiocontrast agents.
