The clinical outcome and risk factors analysis of immune checkpoint inhibitor-based treatment in lung adenocarcinoma patients with brain metastases

Introduction

The brain is one of the most common sites of distant metastasis for non-small cell lung cancer (NSCLC) (1). With improvements in systemic therapy, the longer survival of patients also translates to increased incidence of brain metastasis (BM). A large study, involving 457,481 patients with NSCLC, reported that BM was detected in 26% of patients with stage IV disease at presentation, and adenocarcinoma histology was significantly associated with the presence of BM compared with squamous cell lung cancer (26.8% vs. 15.9%, odds ratio 2.93) (2). BM is traditionally considered a negative factor for treatment efficacy and survival prognosis, but unprecedented achievements in the use of immune checkpoint inhibitor (ICI) in lung cancer patients have propelled this issue into a new clinical practice setting.

ICI was believed to be ineffective for intracranial lesions since brain was thought as an immune-privileged site due to the blood-brain barrier. In addition, the large molecular size of the antibody reduced intracerebral drug availability (3). However, retrospective analysis of clinical trials [KeyNote 024 (4) and KeyNote 189 (5)] suggested that NSCLC patients with brain metastases (BMs) could derive survival benefits from ICI-based treatment compared with chemotherapy. A pooled analysis (6) of KeyNote-001, -010, -024, and -042 studies also indicated that for patients with high programmed cell death ligand-1 (PD-L1) expression, the advantages of overall survival (OS) gained from pembrolizumab over chemotherapy were comparable between patients with and without BMs [hazard ratio (HR) 0.83 versus 0.78]. Nevertheless, the population from clinical trials has been selected by rigorous criteria, much differing from that in real-word practice. Clinically, the presence of neurological symptoms, the use of glucocorticoid and the treatment of intracranial radiotherapy are important for the prognosis of patients with BMs. Some studies have proved that the treatment of glucocorticoid or intracranial radiotherapy had influences on activity of ICI (7,8). But, in fact, only 6.2–17.5% of the patients enrolled in the pivotal NSCLC ICI trials had asymptomatic or previously treated or stable BMs, and none of them allowed patients with symptomatic or untreated BMs (9). Recently, a prospective phase II study (10) examined the efficacy of ICI in advanced NSCLC patients with untreated BMs and showed an intracranial response of 29.7%, but it still required patients be no neurologic symptomatic. The data from real-word practice about efficacy of ICI on patients with BMs remain limited and controversial. For example, a subgroup analysis from Qiao et al.’s study (11) indicated that NSCLC patients with BMs had significantly shorter progression-free survival (PFS) and OS than those without, whereas another real-word study by Sun et al. suggested a comparable objective response rate (ORR), PFS, and OS between patients with and without BMs (12). Therefore, further studies are needed to better clarify the efficacy of ICI for NSCLC patients with BMs and to identify the relevant risk factors in a clinical practice setting.

In addition, the reported risk factors affecting the prognosis of NSCLC patients with BMs include age, Karnofsky Performance Status, extracranial metastases, the number of BMs, molecular subtype, the method of intracranial radiotherapy, carcinoembryonic antigen levels, and so on (13-17), however, there is no study on the correlation between the location of BMs and prognosis. We notice that the tumor microenvironment in BMs is organ-specific as there are some specialized resident immune cells, like astrocytes and microglia that are proved to be crucial in promoting tumor progression and immune evasion in NSCLC BMs (18,19). Previous studies suggested that these cells were much heterogeneous in their morphological and functional properties based on their different spatiotemporal distribution (20,21), existing influences on tumor microenvironment and malignant progression (22). Thus, we speculated that regional heterogeneity of the brain microenvironment might lead to different responses of metastatic tumors to immunotherapy.

Collectively, this real-word study is aimed to evaluate the efficacy and clinical outcome of ICI-based treatment in lung adenocarcinoma patients with BMs and to explore the potential risk factors that affect those patients’ outcome, with a special focus on the spatial distribution of BMs. We present the following article in accordance with the STROBE reporting checklist (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-22-260/rc).

Methods

Patients

Patients with advanced lung adenocarcinoma who were admitted to the Shanghai Pulmonary Hospital between July 2018 and November 2020 were enrolled in this study. The following inclusion criteria were applied: (I) adenocarcinoma diagnosis confirmed by pathology; (II) stage IV disease according to the eighth edition of the TNM classification for lung cancer; (III) measurable lesions according to the Response Evaluation Criteria in Solid Tumors version 1.1 (RECIST v1.1); and (IV) received ICI-based treatment (ICI monotherapy or ICI plus chemotherapy). The exclusion criteria included the followings: (I) patients with oncogene-addicted, including epidermal growth factor receptor (EGFR), anaplastic lymphoma kinase (ALK), and c-ros oncogene 1, receptor tyrosine kinase (ROS1); (II) patient with insufficient data or follow-up time <3 months; (III) patients who had received other immunotherapy, including but not limited to vaccines and adoptive cellular immunotherapy; (IV) presence of active multiple primary malignancies; and (V) patients who was receiving intensive immunosuppressive agents. The patients were followed up by telephone consultation. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee of Shanghai Pulmonary Hospital, Tongji University (No. 201907-0375). Informed consents were obtained from patients whose peripheral blood was collected for further exosome analysis and the other patients were informed by telephone because of the retrospective nature.

Efficacy assessment

Efficacy was assessed according to the standard of RECIST v1.1. An intracranial response was assessed by brain magnetic resonance imaging (MRI), using modified RECIST that defined target central nerve system lesions as lesion ≥5 mm in maximum diameter, with up to five lesions in patients with multiple lesions . The ORR was the proportion of patients who had complete response (CR) or partial response (PR) to treatment. The disease control rate (DCR) was the proportion of patients who had CR, PR, or stable disease (SD) to treatment. The PFS was defined as the interval from the initiation of ICI-based therapy to first RECIST v1.1-defined progression disease (PD) or death from any cause, whichever occurred first. If patient was not followed with PD, the data would be censored at the time of last chest computed tomography. The data of PD-L1 expression were collected which was evaluated by immunohistochemical (IHC) method using E1L3N or 22C3 antibody.

Isolation and analysis of tumor-derived exosome

Exosomes were isolated by size exclusion chromatography (SEC) according to the manufacturer’s instructions (23). Briefly, 1 mL of 0.8 µm-filtered blood plasma was diluted 1.5-fold with phosphate buffered saline (PBS) and further purified using Exosupur^® columns (Echobiotech, China). Next, the samples were eluted with 0.1 M PBS and 2 mL eluate fractions were collected. Fractions were concentrated to 200 µL using 100 kDa molecular weight cut-off Amicon^® Ultra spin filters (Merck, Germany).

Total RNA was extracted and purified from plasma exosome using miRNeasy Serum/Plasma Advanced Kit (Qiagen, cat. No. 217204) according to the kit instruction. RNA concentration and purity were evaluated using the RNA Nano 6000 Assay Kit of the Agilent Bioanalyzer 2100 System (Agilent Technologies, CA, USA). For small RNA libraries, a total amount of 1–500 ng. RNA per sample was used for sample preparations. QIAseq miRNA Library Kit (Qiagen, Frederick, MD) was used to generate sequencing libraries and index codes were added to each sample. Reverse transcription (RT) primers with unique molecular indices (UMIs) were introduced to analyze the quantification of miRNA expressions during cDNA synthesis and PCR amplification. And then, library quality was evaluated on the Agilent Bioanalyzer 2100 and further verified by qPCR. acBot Cluster Generation System was used to cluster the index-coded samples through TruSeq PE Cluster Kitv3-cBot-HS (Illumina, San Diego, CA, USA) according to the instructions. At last, the prepared library was sequenced on an Illumina Hiseq platform to generate paired-end reads.

Firstly raw data in fastq format were processed using in-house perl scripts to filter out reads containing adapter, reads containing ploy-N and low-quality reads. The obtained clean data were used to calculate Q20, Q30, GC-content and sequence duplication level. All the downstream analyses were based on these high quality clean data. Paired-end clean reads were aligned to the reference genome-GRCh38 using TopHat2/Bowtie2 (24). Mapped reads were used for the Quantification of gene expression level and Differential expression analysis. Bowtie tools soft was used to make sequence alignment for the clean reads respectively with Silva database, GtRNAdb database, Rfam database and Repbase database, to filter out ribosomal RNA (rRNA), transfer RNA (tRNA), small nuclear RNA (snRNA), small nucleolar RNA (snoRNA) and other ncRNA and repeats. Known miRNAs were detected and new miRNAs were predicted in the remaining reads by sequencing alignment with miRbase and Human Genome (GRCh38), respectively. Expression matrix of quantified UMI counts of miRNAs was normalized to counts per million (CPM) and calculated to relative log expression via the EdgeR package.

The Kyoto Encyclopedia of Genes and Genomes (KEGG) (25) is a database resource that is used to analyze high-level functions and utilities of the biological system including from molecular-level information, especially large-scale molecular datasets generated from genome sequencing or other high-throughput experimental technologies (http://www.genome.jp/kegg/). The KOBAS (26) software was used to assess the statistical enrichment of the differentially expressed genes in the KEGG pathways.

Statistical analysis

The SPSS software (version 22.0) was used for statistical analyses. Differential expression analysis of two groups was performed using the Mann-Whitney U test with cutoff FPKM >5, P value <0.05, and fold change >1.5 (the FPKM represented the fragments per kilo-base of exon per million fragments mapped, and is calculated based on the length of the fragments and read counts mapped to this fragment). Intergroup comparisons were performed using the Pearson’s χ² or Fisher’s exact tests for categorical variables. The PFS and OS were estimated using the Kaplan-Meier method and compared using log-rank test in univariate analyses. Factors with P value <0.1 in the univariate analysis were included for multivariate analysis using the Cox proportional hazards model, which was also used to calculate the HR and corresponding 95% confidence interval (CI). A two-sided P value <0.05 was considered significant.

Results

Characteristics of the study population

A total of 198 patients with advanced lung adenocarcinoma were enrolled into this study and BM was detected in 20.7% of patients (N=41; Figure 1). Of the 41 patients, 13 had neurological symptoms before ICI-based treatment, but only 2 patients were administered corticosteroid. Brain MRI was performed within 6 weeks prior to ICI-based treatment in 36 (87.8%) patients. Twenty-one (51.2%) patients had received intracranial radiotherapy, 13 of whom received concurrent intracranial radiotherapy with ICI-based treatment, which was defined as less than 3 months between the initial of ICI and intracranial radiotherapy. Majority of patients (63.1%) received ICI plus chemotherapy. Notably, only 6 patients received ICI monotherapy as first-line treatment, while 67 patients were treated ICI monotherapy as posterior-line therapy. Clinical characteristics before ICI-based treatment were compared between patients with and without BMs (Table 1). Patients with BMs had poorer Eastern Cooperative Oncology Group (ECOG) score (P<0.001) and more extracranial metastases (ECM) (P<0.001) compared to those without. Other characteristics such as age, gender, smoking history, gene type, and PD-L1 expression were balanced between the two groups.

Figure 1 Flowchart of the study. NSCLC, non-small cell lung cancer; ICI, immune checkpoint inhibitor; EGFR, epidermal growth factor receptor; ALK, anaplastic lymphoma kinase; ROS1, c-ros oncogene 1, receptor tyrosine kinase; ACT, adoptive cell therapy; BMs, brain metastases.

The outcomes of ICI-based treatment

The median follow-up time was 31.7 months. In total, progression events occurred in 32 (78%) patients with BMs and 125 (79.6%) patients without BMs. Patients with and without BMs had comparable ORR (29.3% vs. 43.9%; P=0.089). However, patients with BMs showed a lower DCR (58.5% vs. 78.3%; P=0.01) and shorter a PFS (3.6 vs. 8.6 months; P=0.069; HR =1.428; 95% CI: 0.924 to 2.207; Figure 2A,2B). Intracranial efficacy was assessed in 31 patients and the majority had concordant responses to ICI-based treatment between intracranial lesion and primary lung lesion (77.4%; Figure 2C), with an intracranial ORR of 35.5% and an intracranial DCR of 71.0%.

Figure 2 Clinical outcomes of ICI-based therapy comparison in patients with or without BMs. Response (A) and PFS (B) comparison. Responses in primary lung lesion and paired intracranial lesion (C). ORR, objective response rate; DCR, disease control rate; PD, progression disease; SD, stable disease; PR, partial response; CR, complete response; ICI, immune checkpoint inhibitor; BMs, brain metastases; PFS, progression-free survival; mPFS, median PFS.

The analysis of risk factors

For patients with BMs, those who presented with neurological symptoms had similar PFS to asymptomatic patients (3.0 vs. 4.4 months; P=0.553; Figure S1A). There was also no difference in PFS between patients who received intracranial radiotherapy and those who did not (Figure S1B). Patients who received combination therapy appeared to have superior PFS compared to patient who received ICI monotherapy (6.3 vs. 2.9 months; P=0.069; Figure S1C), however, it should be noted that there was only 1 patient who received first-line treatment in the monotherapy group, whereas 48.0% in the combination group. Further analysis in patients who received posterior-line ICI-based treatment suggested that there was no significant difference in PFS between the combination and monotherapy groups (Figure S1D).

The progression of intracranial lesion was confirmed in 17 patients (41.5%) and the median intracranial PFS (icPFS) of patients with BMs was 12.9 month (Figure S2A). No difference in median icPFS was observed between patients with symptomatic and asymptomatic BMs (Figure S2B). Neither combination therapy nor intracranial radiotherapy was associated with intracranial survival (Figure S2C,S2D). In addition, the progression of intracranial lesion was more common in patients with BMs than in patients without BMs (40.6% vs. 4.8%; P<0.001). The progression patterns of these two groups are shown in Figure S3.

The impact of BMs’ spatial distribution on ICI-based treatment outcomes

To investigate the impact of different regions involved in BMs on the clinical outcome of ICI-based treatment, five functional lobes were assessed, including frontal, parietal, temporal, occipital, and cerebellum. The distribution of BMs for patients with baseline brain MRI is showed in Figure 3A. The most frequency site of BM was the frontal lobe, followed by the parietal, temporal, occipital, and cerebellum. The impacts of each region involvement on the PFS are shown in Figure 3B-3F. The results suggested that only cerebellum metastasis was significantly associated with shorter PFS of ICI-based therapy (2.8 vs. 13.8 months; P=0.007). However, it was noted that cerebellum metastasis was often accompanied with extensive BMs. Among the 15 patients with cerebellum metastases, 7 (46.7%) patients had concurrent metastases in all the above five regions, and the median PFS for these patients was significantly shorter than those without extensive metastases (less than five functional regions) (2.8 vs. 5.6 months; P=0.021; Figure 3G). Analysis of baseline characteristics also suggested that the number of BMs was greater in patients with cerebellum metastases than that in patients without (P=0.001; Table 2). Nevertheless, when these 7 patients with extensive BMs were excluded, the median PFS of the remaining 8 patients was still 2.8 months. Specifically, PFS of all these patients were shorter than 6 months, except for 1 patient who had a PFS of 13.3 months. Univariate and multivariate analyses demonstrated that cerebellum metastasis was an independent risk factor for PFS of ICI-based treatment (Table S1). As for the impact of different regions on icPFS, the results also suggested that cerebellum metastasis was the only risk factor (Figure S4A-S4F). Together, these data suggested that cerebellum metastasis is a poor factor for the clinical outcome of ICI-based treatment in lung adenocarcinoma patients with BMs.

Figure 3 The region distribution of BMs for patients with baseline brain MRI (A). PFS comparison between patients with or without different region metastases: frontal lobe (B), parietal lobe (C), temporal lobe (D), occipital lobe (E), cerebellum (F), and concurrent the above five regions (G). M, metastases; BMs, brain metastases; MRI, magnetic resonance imaging; PFS, progression-free survival; mPFS, median PFS.

The differences in the tumor-derived exosomes between patients with and without cerebellum metastases

We had collected plasma samples from 15 patients with BMs, including 8 patients accompany with cerebellum metastases and 7 patients without. Considering that the important role of tumor-derived exosomes both in regulating immune cells (27) and promoting BM (28), we performed miRNA sequencing from the tumor-derived exosomes in plasma to explore the underlying mechanisms of the different prognosis between the two groups. In total, 1,113 miRNAs were detected, of which 1,081 were known and 52 were newly predicted. Differential expression analysis revealed that 6 upregulated miRNAs were expressed in patients with cerebellum metastases, including hsa-miRNA-331-5p, -542-5p, 26a-2-3p, -99a-3p, -184, and -3065-5p (Figure 4A,4B). A total of 29 target genes were predicted from these miRNAs (Table S2). The enrichment of differential expression genes in KEGG pathways analysis indicated that the sulfur metabolism pathway was the most significantly upregulated pathway in patients with cerebellum metastases (Figure 4C).

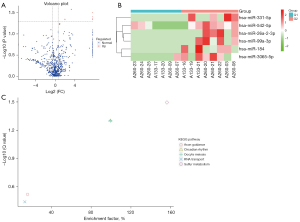

Figure 4 Differential analysis on miRNA of tumor-derived exosomes extracted from patients with or without cerebellum metastases (A,B). (C) Result of the KEGG pathways analysis based on the differential expressed miRNA. KEGG, Kyoto Encyclopedia of Genes and Genomes.

Discussion

The efficacy of ICI on NSCLC patients with BMs remains controversial, since such patients are often excluded from clinical trials, or only patients with stable BMs are selected. The study from Hendriks et al. included a cohort of less-selected NSCLC patients with BMs and demonstrated that such patients had shorter PFS and OS, similar overall ORR, and lower DCR compared to patients without BMs (7). This agrees with our current study demonstrating that patients with BMs had similar PFS and ORR, and higher DCR compared to patients without BMs. However, it worth noting that the former study excluded patients treated with anti-PD-1 inhibitor plus chemotherapy, whereas about 63% of our cohort consisted of such patients. The different response between BMs and primary lung lesion is another focus of concern regarding immunotherapy in NSCLC. The study by Kim et al. (29) suggested that BMs are poorly responsive to anti-PD-1 therapy. Our present study showed major coincident responses of intracranial lesion and lung lesion, though discordant responses existed in minority of patients.

The heterogeneity of functional areas in the brain has been observed from several aspects. Gryglewski et al. discovered that gene expression exhibited a high spatial dependence among the cortical surface, subcortical regions, and cerebellum (30). Kleinridders and colleagues found significant regional differences in glucose metabolism between the thalamus and the cortex (31). However, to date, whether the heterogeneity across different regions of brain affects the intracranial efficacy of ICI-based therapy remains to be elucidated. To the best of our knowledge, the present study is the first to report that cerebellum metastasis is associated with poorer outcome after ICI-based therapy in lung adenocarcinoma patients with BMs. This may be caused by a more suppressive immune microenvironment in cerebellum, as suggested by Ayata et al., who demonstrated that microglia in cerebellum exhibited higher clearance activity than that in the striatal or cortical (32). In addition, it was noted that patients with cerebellum metastases were inclined to develop extensive BMs, suggestive of a more invasive tumor. This newly identified risk factor may be partially responsible for the heterogeneous outcome of NSCLC patients with BMs, which may explain, at least to some extent, the conflicting data regarding the efficacy of CI-based therapy in such patients.

Exosomes derived from tumor cells are now known to play a crucial role in metastatic brain tumors (28,33-35). Fong et al. (36) showed that the level of miR-122 secreted by breast cancer cells into the circulation was associated with brain and lung metastasis. In our study, by performing miRNA-sequencing on exosomes extracted from the peripheral blood of patients, 6 upregulated miRNAs were identified in patients with cerebellum metastases compared to those without, suggesting differences in tumor biological characteristics. Moreover, the KEGG enrichment pathway analysis demonstrated that patients with cerebellum metastases had upregulated sulfur metabolism. Metabolic reprogramming, which is now well documented to be related to immune response (37,38), is also observed in BMs (39-41). However, it remains unknown whether metabolic dysregulation in BMs can affect the response to ICI. Indeed, the results in the present study suggested that sulfur metabolism was upregulated in patients with cerebellum metastases and might correlate with the poor outcome of ICI treatment. Previous studies have reported that sulfur and its intermediate metabolites are important for cellular metabolism, since they are not only required in oxidation/reduction reactions, but also mediate inter- and intracellular signaling, and facilitate the epigenetic regulation of gene expression (42,43). The dysregulation of sulfur metabolism may contribute to tumorigenesis and progress (44). Interestingly, sulfurous compounds are also essential for sustaining neurological functions. For example, disturbances in the hydrogen sulfide and trans-sulfuration pathways have been implicated in neurodegenerative disorders such as Alzheimer’s disease and Parkinson disease (45). Therefore, upregulated sulfur metabolism in patients with cerebellum metastases may lead to more aggressiveness tumors, which may also be related to the neurological symptoms commonly observed in such patients. However, the results of our KEGG analysis are limited by the sample size and the nature of this method, and further cell and animal studies are warranted to verify the role of exosome miRNA and sulfur metabolism in cerebellum metastasis.

In addition, the circadian rhythm and oocyte meiosis pathways were also upregulated in patients with cerebellum metastases as showed in KEGG analysis. Because the cerebellum contains a circadian clock, generating internal temporal signals, we firstly thought that the circadian rhythm pathway upregulation was attributed to occupied effect of metastatic brain tumors. Zhang et al. also found hyperactivated circadian rhythm pathway in lower grade glioma (46). However, many extracranial tumors, such like lung, breast, colorectal cancer, and head and neck squamous cell carcinoma, could also mediate the disruption of circadian rhythm, which influenced cancer development by regulating tumor cell apoptosis, immune infiltration, and tumor cell-host interactions (47-51). But the role of dysregulated circadian rhythms in metastatic brain tumor development and its immune response remains unclear and further studies are in needed. As for oocyte meiosis, although its enrichment was reported in some researches about lung cancer (52,53), further function and mechanism studies are lacked. The role of oocyte meiosis in BM or cerebellum is rarely studied, either.

Biomarkers are urgently needed to predict the efficacy of ICI-based therapy for NSCLC patients, especially those with BMs. Thus far, only PD-L1 expression has been shown to be associated with the clinical outcome of patients with BMs when treated with ICI monotherapy (6,54). Regrettably, the PD-L1 expression status was only available in 9 patients with BMs in our study, and thus we were not able to analysis the predictive role of PD-L1 expression. However, because PD-L1 expression in BMs is different from that in primary lung tumors and sampling for BMs is extremely difficult, the predictive value of PD-L1 expression is actually limited in such patients. Diagnosis-specific graded prognostic assessment (DS-GPA) score is the most widely used prognostic stratification model for BMs. Some studies suggested higher DS-GPA scores were related to improved PFS when treated with ICI (7,15), however, no differences in the ORR nor the PFS based on DS-GPA score stratification were detected in our present study. Therefore, it is necessary to explore potential biomarkers that can predict the efficacy of immunotherapy, especially ICI-based combination therapy for lung cancer patients with BMs. Considering the significant difference in clinical outcome of ICI-based therapy between patients with and without cerebellum metastases, the 6 upregulated miRNAs identified in patients with cerebellum metastases may have potential predictive value to ICI-based therapy, but it needs further investigation.

The limitations of this study are as follows: (I) this study is a retrospective study; (II) the number of patients with BMs and patients with cerebellum metastases were small. Therefore, it was difficult to accurately distinguish whether the cerebellum itself was a poor prognostic factor or whether the prognosis was poor due to its high metastatic tumor burden; (III) we did not analyze the impact of cerebellum metastasis in patient cohort who were treated with only chemotherapy, so it is hard to discriminate whether cerebellum metastasis is an immunotherapy-specific poor prognostic; (IV) only lung adenocarcinoma patients were included in this study, so the results of this study should not be interpreted as an extension of NSCLC.

Conclusions

For lung adenocarcinoma patients, those with BMs have inferior response to ICI-based treatment, but not significantly. Among patients with BM, cerebellum metastasis is associated with an unfavorable outcome of ICI-based therapy, and this may be related to dysregulation of sulfur metabolism.

Acknowledgments

The authors appreciate the academic support from the AME Lung Cancer Collaborative Group.

Funding: This study was supported by the Science and Technology Commission of Shanghai Municipality (No. 19411971100) and the National Natural Science Foundation of China (grant No. 82072568).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-22-260/rc

Data Sharing Statement: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-22-260/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-22-260/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Shanghai Pulmonary Hospital, Tongji University (No. 201907-0375). Informed consents were obtained from patients whose peripheral blood was collected for further exosome analysis and the other patients were informed by telephone because of the retrospective nature.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
