Development and validation of a deep transfer learning-based multivariable survival model to predict overall survival in lung cancer

Introduction

Lung cancer is a concerning global health burden with a 5-year survival rate of 18.6%, much lower than for other leading cancers, such as colorectal (64.5%), breast (89.6%), and prostate (98.2%), according to Surveillance, Epidemiology, and End Results (SEER) Cancer Statistics (1). Given the relatively poor outcome of lung cancer, it is imperative for a precise survival prediction system to risk-stratify patients in clinical practice and research.

The tumor-node-metastasis (TNM) staging is widely used to evaluate prognosis and guide the treatment strategy. However, it classifies patients based on the anatomic extent of the tumor broadly without weighting other prognostic factors (2). Other risk factors have been proved as independent and related to prognosis, including sex, age, and marital status at diagnosis (3-5). Therefore, heterogeneity in clinical outcomes exists even between patients with comparable stages of the disease. Moreover, the standard Cox proportional hazards (CPH) model, which is one of the most popular models used in survival analysis, is a linear regression model that oversimplifies survival analysis for real-world applications because it assumes linearity between variables, which is not valid.

Artificial intelligence (AI) is becoming widely applied in the medical field, driven by a staggering increase in computational power and data volumes. Deep learning is a subset of machine learning that has greatly interested medical practitioners and researchers (6-10). Transfer learning is another subset of machine learning, in which a model developed for one domain can be used for a different but related domain, independent of data size and distribution. In comparison, traditional machine learning is characterized by training data that have the same input feature space and data distribution characteristics (11).

Many deep learning-based models are emerging to predict outcomes in different disease areas (8,9). For example, Bergquist et al. utilized computerized methods such as random forests, lasso regression, and neural networks to predict lung cancer stages with 93% accuracy by analyzing clinical data from the SEER cancer registry (12). Similarly, Corey et al. developed Pythia, a software package based on machine learning models that incorporates various factors including age, sex, clinical baseline, race/ethnicity, and comorbidity history to predict the risk of postoperative complications or deaths (13). However, models integrating deep learning and transfer learning are rare. Deep learning models may have limitations in real-world populations due to differences in variables and characteristics between the training and real-world populations. However, transfer learning, a subset of machine learning, can overcome this limitation by allowing a model developed for one domain to be used for a related domain. In this study, we aimed to integrate deep learning and transfer learning through fine-tuning to develop a new model that can be tailored to different populations worldwide. We present the following article in accordance with the TRIPOD reporting checklist (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-23-84/rc).

Methods

We present an elaborate deep transfer learning-based survival model for lung cancer using a training cohort of 601,480 patients from the SEER database (Surveillance, Epidemiology, and End Results database 2006–15) and a testing cohort of 4,512 patients from the GYFY database (the First Affiliated Hospital of Guangzhou Medical University database 2006–18). The outcome was based on overall survival, the period (in months) between diagnosis and death or loss of follow-up from any cause. The performance of our model was compared with that of a traditional Cox model by C-indexes. We developed the primary model based on the DeepSurv model (14) with a training dataset from the SEER database. The primary model was internally validated with a dataset from SEER, and finally externally validated by transfer learning with the GYFY database. We also explore the model’s performance in the setting of missing data and output the AI certainty of the prediction. More information regarding data collection, data preparation, data coding, deep learning algorithm, model evaluation and statistical analysis can be found in the Appendix 1.

In this study, only de-identified data were used, so ethical review and informed consent were waived by the institutional review board of The First Affiliated Hospital of Guangzhou Medical University. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Statistical analysis

The outcome was measured based on overall survival, the period (in months) between diagnosis and death or loss of follow-up from any cause, as reported in the SEER and GYFY databases. Features were expressed as counts and percentages for categorical variables and as the mean [standard deviation (SD)] or median (range) for continuous variables. Qualitative and quantitative differences between subgroups were analyzed using the chi-squared test or Fisher’s exact test for categorical parameters and Student’s t-test or the Mann-Whitney U test for continuous parameters, as appropriate. Univariable and multivariable Cox proportional hazards regression models were used to estimate the effects of various variables on the hazard of lung cancer occurrence and develop the lung cancer prediction model. The cumulative incidence of death was estimated by the Kaplan-Meier (K-M) method and compared using the log-rank test. The concordance index (C-index) was used to assess the discriminatory powers of the models, and the survival calibration curve was calculated to evaluate the calibration of the probability of survival as predicted by the model versus the observed probability. Statistical analysis was performed with R (Version 4.0.0). P<0.05 was statistically significant, and all tests were two-sided.

Results

Demographics and risk factor analysis

The whole modeling flow of the deep transfer learning-based survival model and its applications are shown in Figure 1. A total of 601,480 patients with lung cancer in the SEER database and 4,521 patients in the GYFY database were included; 52.7% and 56.2% were men in SEER and GYFY, respectively. Additionally, SEER had 82.7% white population, 10.9% black population, and 6.3% others, and GYFY only contained an Asian population. The median ages of diagnosis were 70 and 59 years in these two databases (see Table 1 for details). Univariable and multivariable Cox regression analyses showed that all 18 variables, except race, were significantly associated with outcome in the SEER dataset. In the GYFY dataset, the factors that significantly related to the outcome were sex, age, grade, Collaborative staging (CS) extension (2004–15), CS lymph nodes (2004–15), and CS site-specific factor 1 (2004–) (see Tables S1,S2 in Supplementary for details).

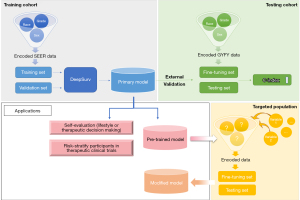

Figure 1 Modeling flow of the deep transfer learning-based survival model and its future applications. The grey block is the training and internal validation step using the SEER database; the green block is the external validation and fine-tuning step using the GYFY database; the white block is the future applications, including self-evaluation, risk-stratification in clinical trials and modified model from the pre-trained model; the yellow block showed how the pre-trained model can be fine-tuned for targeted populations and used to explore other prognostic factors. SEER, Surveillance, Epidemiology, and End Results database; DeepSurv, DeepSurv model [please refer to (14)]; GYFY, The First Affiliated Hospital of Guangzhou Medical University database.

Comparison of DeepSurv and Cox models

The concordance indexes (C-indexes) in the training dataset (SEER full sample) with the DeepSurv and Cox models were 0.792 (0.791–0.792) and 0.714 (0.713–0.715), respectively. The respective values were 0.727 (0.704–0.750) and 0.692 (0.666–0.718) after applying the trained model in the test dataset (GYFY). To better show the difference in the predictive performance of the DeepSurv and Cox models, a variety of comparisons were conducted. The results showed that the all aspects of the predictive performance of the DeepSurv model were better than the Cox model (Table 2).

For example, we treated the GYFY dataset as a training set and the SEER dataset as a test set. To control the difference in data distribution, SEER and GYFY were matched 1:1, 1:2, 1:3, and 1:4 with the propensity score matching method. Next, model verification and remodel verification were performed. The scenario where we used GYFY as the training set and SEER as the test set with the 1:1 matched data, showed the best performance. In this scenario, the C-indexes in the DeepSurv and Cox model trained with GYFY training dataset were 0.751 (0.724–0.777) and 0.705 (0.677–0.733), respectively. After testing with the SEER dataset; the C-indexes in the DeepSurv and Cox model were 0.802 (0.792–0.812) and 0.749 (0.738–0.761) (Table 2).

Credibility assessment

The DeepSurv model not only provided the predicted relative risk but also output the AI certainty of the relative risk of the patient. The higher the certainty, the more confident the model was in the accuracy of the results. As shown in Figure 2, the certainty of the DeepSurv model output was from 0.98 to 1, and the probability of death of the patient suddenly increased after certainty reached a certain point (0.996). It showed that the certainty was proportional to the risk of death, which meant the model might have higher predictive accuracy for patients with a high risk of death.

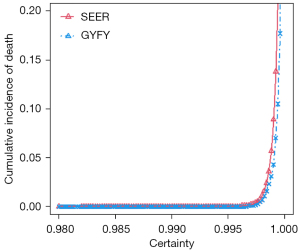

Figure 2 Cumulative incidence of patient death with the development trend of AI certainty. AI, artificial intelligence; SEER, Surveillance, Epidemiology, and End Results database; GYFY, The First Affiliated Hospital of Guangzhou Medical University database.

Performance of transfer learning through fine-tuning

We studied the application of transfer learning in survival prediction. The model was firstly pre-trained on source domain data (SEER) until convergence and then the initialized model was further trained on a subset from the target domain data (GYFY). Table 3 shows the transfer learning result: prediction results with/without pre-training, prediction results with/without fine-tuning (on 20% and 30% of target domain data) on target domain data were compared. The results indicated that experiments with pre-training and fine-tuning operations outperformed the other two settings (no pre-training or fine-tuning). With more fine-tuning of the dataset, the test set (80% and 70% of target domain data) could achieve a higher C-index (20% vs. 30% fine-tuning data).

AI for missing data

The DeepSurv model was more accurate than the traditional Cox model in predicting with missing data. After random data loss of 5%, 10%, 15%, and 20%, and median fill-in missing values, the Cox prediction performance dropped rapidly, and the predictive performance of the deep learning models was more robust than the Cox model (Table 4).

Discussion

Compared with the standard Cox model, the model using the DeepSurv algorithm yielded better performance in all scenarios with higher C-indexes (Table 4). DeepSurv is a non-linear deep learning-based model for survival analysis that is more appropriate for revealing real-world situations (14). Moreover, pre-training and fine-tuning improved the C-index of the model, which implied that our deep transfer learning-based model has a furtherly enhanced performance compared to deep learning-based models and the conventional Cox model.

There are two unique features of the model that highlight its superiority to other survival models. One is that it evaluates the accuracy of its prediction simultaneously by outputting the AI certainty using dropout neural networks (NNs) (15). The higher the AI certainty, the more confident the model is in the accuracy of the results. Additionally, as showed in Figure 2, the certainty was proportional to the risk of death, which meant the model might have a higher predictive accuracy for patients with a high risk of death. The second advantage is that the model showed superior performance with both complete and missing data. After random data loss of 5%, 10%, 15%, and 20%, and median fill-in missing values, the predictive performance of the deep model was more stable and accurate, whereas the performance of the standard Cox model rapidly declined in the same scenarios (Table 4). These two features make the survival model superior for practical applications because it is very common for real-world data to be incomplete. Overall, our model proved that the integration of deep learning and transfer learning achieved better performance in survival analysis than the standard Cox model or a model using deep learning only.

The pre-trained model can also be used to create an evaluation tool and a model frame. The evaluation tool can be used for patient self-evaluation to guide lifestyle planning and therapeutic decision-making. Additionally, the evaluation tool can help risk-stratify participants in lung cancer therapeutic clinical trials, whereas the model frame is best for further fine-tuning according to the target population and exploration of other prognostic factors, which will benefit researchers worldwide (Figure 1).

In clinical practice, the evaluation tool enables patients to self-evaluate survival possibilities in a convenient, precise, and individualized way. Given the relatively miserable outcome of lung cancer, decision making is a grinding process for both physicians and patients (1,16). However, patients’ autonomy and participation during the decision-making process are necessary and contribute to improving patient safety and experience in modern patient-centered healthcare, compared with being passive spectators in traditional paternalistic healthcare (17-19). It is noteworthy that health literacy is central to enhancing patients’ participation in their care because low health literacy and lack of knowledge of the subject decrease confidence and willingness to engage in decision-making (18,19). This evaluation tool can assist patients to weigh the pros and cons of a decision and improve their participation in their healthcare. Additionally, it may ease communication difficulties between physicians and patients. With a more precise survival probability provided, physicians can formulate more individualized and stratified treatment strategy and lifestyle planning for patients.

The evaluation tool can also play a vital role in lung cancer clinical trials. Although randomized controlled trials are considered the most reliable scientific evidence to guide clinical practice, the overall results are not always generalizable to individual patients (20,21). Substantial variation in the individual baseline risk within a trial is common because patients have multiple known or unknown characteristics that can affect the outcome, resulting in heterogeneity of the treatment effect between subgroups of patients in trials (21,22). In other words, the lack of a consistent analytic approach to baseline risk evaluation limits the application of summary results of clinical trials to individual patients. Risk stratification of participants was well powered to minimize bias and explore the most beneficial subgroup for the treatment (23). A multivariate model combining risk factors into a score that describes a single dimension of the risk is the key to baseline risk stratification, rather than one-variable-at-a-time subgroup analysis (21,22,24). Therefore, the evaluation tool developed from the pre-trained model has great potential as a standardized tool for baseline risk stratification in lung cancer trials.

Issues to be addressed in traditional model-building include small sample size, unqualified external validation, and waning performance of the model over time due to changes in diagnosis and treatment (25-27). A rational way to solve these issues is to integrate individual participant data from multiple studies and include new prognostic factors to update the model (28,29). However, collaboration between research groups can be problematic in the sharing of data with all details. Our pre-trained model can be exploited to integrate new data and explore new prognostic factors by other researchers as per request.

In terms of sample size, we used the SEER database, the biggest lung cancer database that includes 601,480 patients, as the training cohort to explore the coefficients of prognostic factors. After pre-training, our model could provide fixed coefficients of the 18 variables that were closest to the real coefficients among the global population, which enabled more accurate predictions compared with current models. Furthermore, researchers can integrate their own data and fine-tune the online pre-trained model to a more applicable one using a dataset from their target population. With the fixed coefficients, overfitting can be minimized, even using a relatively small sample size to study other prognostic factors (30). Therefore, we envision that our deep transfer learning-based model for survival prediction in lung cancer will have great utility in research and clinical practice.

However, there are limitations when it comes to a machine learning-based prognostic model. Firstly, machine learning algorithms may be subject to biases, which include those related to missing data and patients not identified by algorithms, sample size and underestimation, and misclassification and measurement error (31). Moreover, the model requires frequent maintenance even though it is superior to the traditional models. The coefficients of the prognostic factors in the pre-trained model can differ over decades due to the evolution of practice since the current model based on SEER data from between 2006 and 2015. Therefore retraining of the pretrained model with new data from the SEER database will be required. New prognostic factors related to targeted therapy or immunotherapy may emerge, correlated with changes in medical practice in the real world, which also requires modification of the pre-trained model with new prognostic factors. The last challenge for future application is the need for a prospective study of the model in the real world rather than only a retrospective assessment based on historical data (32).

Conclusions

Therefore, we present this new approach of machine learning by combining deep learning and transfer learning. The survival model for lung cancer outperformed the traditional Cox model, was robust with missing data and provided the AI certainty of prediction. It can be used for patient self-evaluation and risk stratification in clinical trials. Researchers can fine-tune the pre-trained model and integrate their own database to explore other prognostic factors for lung cancer in the future.

Acknowledgments

We sincerely thank Chaonan Zhu, Lili Wang, Cong Fang, Wei Shen and Qiang Lin from Yitu Tech for their support in AI modeling.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-23-84/rc

Data Sharing Statement: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-23-84/dss

Peer Review File: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-23-84/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-23-84/coif). WL serves as an unpaid Associate Editor-in-Chief of the Translational Lung Cancer Research from May 2021 to April 2023. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. In this study, only de-identified data were used, so ethical review and informed consent were waived by the institutional review board of The First Affiliated Hospital of Guangzhou Medical University. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
