Efficacy and prognostic factors of stereotactic body radiotherapy combined with immunotherapy for pulmonary oligometastases: a preliminary retrospective cohort study
Highlight box
Key findings
• This study mainly reported that stereotactic body radiotherapy (SBRT) combined with immunotherapy brought better local control rate and long-term survival in patients with pulmonary oligometastases.
What is known and what is new?
• Studies have shown that SBRT can be used as the main treatment for pulmonary oligometastatic tumors, which can improve the survival of patients. However, there are no relevant studies on SBRT combined with immunotherapy in the treatment of pulmonary oligometastases.
• The neutrophil-to-lymphocyte ratio was associated with shorter overall survival (OS) after SBRT.
What is the implication, and what should change now?
• This means that following the changes of patients’ hematological indicators during SBRT combined immunotherapy can predict the OS of patients to a certain extent, and shortening the interval between SBRT and immunotherapy can bring better OS benefits.
Introduction
The lung is one of the most common sites of metastasis of malignant tumors, and the 5-year survival rate of patients with lung cancer is significantly reduced when cancer metastasizes. The term “oligometastasis” refers to a condition in which the patient’s primary tumor has distantly metastasized but remains confined to a certain organ with minimal metastases (1,2). Presently, the definition of oligometastases remains controversial. Generally, it is applicable when the number of metastatic organs ≤3 and when the total number of metastases is ≤5. Pulmonary oligometastases are usually defined as “early” pulmonary metastases involving 1–5 lung metastases (1,2).
Clinical data show that the combination of systemic drug therapy and local therapy can more effectively manage pulmonary oligometastases in patients. This combined approach not only enhances control of the disease but can also achieve prolonged disease management and even clinical cure. Stereotactic body radiotherapy (SBRT), or stereotactic ablative radiation (SABR), is a noninvasive local therapy that plays an important role in the local treatment of early non-small cell lung tumors (3). Studies have shown that SBRT yields a local control (LC) rate similar to that of surgical treatments (4-6). According to the results of a large international database, the duration of LC after SBRT is closely related to widespread progression (WSP) and overall survival (OS) (7). Therefore, SBRT can indirectly affect the long-term efficacy of patients with oligometastatic tumors. Over recent years, SBRT has been gradually applied in oligometastatic radiotherapy for stage IV tumors, especially for pulmonary oligometastases (6,8,9).
However, SBRT serves as a localized treatment approach, and distant metastasis remains the most critical issue in patients with stage IV tumors. Due to its potential effectiveness in reducing the incidence of distant metastasis, SBRT in combination with systemic drug therapy has garnered increased interest (10). Despite immune checkpoint inhibitors (ICIs) being increasingly indicated for the treatment of advanced solid tumors, the majority of patients who benefit from immunotherapy also develop immune resistance, eventually leading to tumor progression. Both SBRT and immunotherapy rely on and have the ability to alter the balance of anti-tumor immune surveillance and immunosuppressive states in the tumor and tumor microenvironment (TME). High-dose, ablative large-segment radiotherapy has the ability to induce immunogenic molecular changes at the cellular level and in the TME (11). Therefore, we think that SBRT and ICI have a synergistic effect when used in combination. Radiation has immunogenic and non-local that can kill tumor cells in non-irradiated fields, this phenomenon is called the “abscopal effect”, as early as in 1953, some scholars accidentally discovered this phenomenon (12). Preclinical studies have shown that the effects of radiotherapy on the body are mainly caused by CD8+ T cell activation mediated, whereas high-dose fractionated radiotherapy induced immune checkpoint expression and programmed death programmed cell death ligand-1 (PD-L1), PD-L2, and cytotoxic T-lymphocyte-associated antibodies cytotoxic T lymphocyte-associated antigen-4 (CTLA-4) is the main regulatory factor of T cell activation. These regulatory factors are associated with dysfunctional CD8+ T cells and severe immunosuppressive microenvironment (13,14). Therefore, removing these barriers to anti-tumor immunity may enhance the distant effects of radiotherapy.
SBRT combined immunotherapy has achieved certain research results in metastatic non-small cell lung cancer (NSCLC), metastatic sarcoma and other diseases, and many studies related to advanced solid tumors are currently in progress (15-18). However, to our knowledge, few studies have been conducted on patients with pulmonary oligometastases. Therefore, our preliminary study analyzed the efficacy and prognostic factors of SBRT combined immunotherapy in patients with pulmonary oligometastases. We present this article in accordance with the STROBE reporting checklist (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-588/rc).
Methods
Patient characteristics

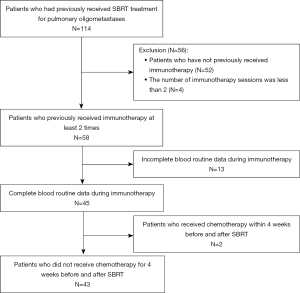

This retrospective cohort study focused on patients with pulmonary oligometastatic tumors receiving SBRT combined with immunotherapy. Data were collected from the Radiotherapy Department of The Affiliated Hospital of Soochow University between October 2018 and October 2022. The inclusion criteria were as follows: (I) patients aged 18 years or older with pathologically confirmed primary lesions, presence of 1–5 measurable lung metastases; (II) all metastases were examined by chest enhanced computed tomography (CT) or positron emission tomography-CT (PET-CT) multiple times. The diagnosis was made jointly by the clinician and the radiologist; (III) the primary tumor and extrapulmonary metastases were stable or showed no signs of activity; (IV) administration of immunotherapy at least twice after SBRT; (V) availability of complete blood routine data throughout treatment in the hospital, and follow-up for more than 1 month after immunotherapy. Meanwhile, the exclusion criteria were the following: (I) incomplete blood routine data; (II) patients with serious and uncontrollable medical disease; (III) administration of fewer than two rounds of immunotherapy after SBRT due to personal reasons or severe adverse immune reactions (Figure 1); (IV) to minimize the effect of myelosuppression after chemotherapy on the neutrophil-to-lymphocyte ratio (NLR) value, patients who received chemotherapy within 4 weeks before and after SBRT were also excluded. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). It was approved by the medical ethics committee of The Affiliated Hospital of Soochow University [No. 440(2024)]. The ethics committee waived the necessity of informed consent due to the retrospective analysis of routine data. Patient records/information were anonymized and deidentified prior to analysis.
The determination of sample size and the collection of clinical data
In order to ensure the statistical efficacy of the sample size, we used G*Power (version 3.1) to calculate the effective sample size needed for our study, and finally set the total sample size to 34 (19). The patients’ baseline information was collected and recorded as follows: (I) general information, including age, sex, Eastern Cooperative Oncology Group (ECOG) score, and smoking history; (II) tumor-related information, including the primary tumor site, pathological type, duration of SBRT, number of target areas, maximum diameter of lung metastasis, planning target volume (PTV), SBRT dose segmentation scheme, and whether antitumor drugs such as chemotherapy, targeted therapy, and immunotherapy were received after SBRT; (III) hematology data, including blood routine indicators 4 weeks before and after SBRT. In instances where multiple blood routine data were available, the values closest to the start time of SBRT (used as blood indicators 4 weeks before radiotherapy) and the values closest to the end of SBRT were recorded. Absolute lymphocyte count (ALC) and neutrophil count (NE) were collected from blood routine data. The NLR is calculated by dividing the NE by the ALC, which are measured simultaneously in each patient’s routine blood examination.
Stereotactic radiotherapy
In this study, 43 patients received local radiotherapy for pulmonary oligometastases, with stereotactic radiotherapy being the chosen modality. During simulated positioning, all patients were fixed in a supine position, lying flat on a vacuum mat, with their hands behind their heads. CT scanning commenced after the respiratory rhythm was stabilized. The scan encompassed the area from the incisor to the lower margin of the second lumbar vertebra, with a scanning layer thickness of 3 mm. Tumor targets of all patients were mapped with the Eclipse 13.6 planning system (Varian Medical Systems, Palo Alto, CA, USA). In combination with the patient’s positron emission tomography-CT (PET-CT) and other imaging data, clinicians delineated the target area and the organs at risk (OARs) on the localization CT scan images. The gross tumor volume (GTV) was outlined within the lung window (window width 1,600, window position −600), while the PTV was formed by expanding 5 mm beyond the GTV. The outline of the OARs included the lungs, trachea, heart and large blood vessels, skin, and spinal cord. According to the number, size, and location of the lesions, as well as the patient’s physical condition and tolerance, clinicians employed corresponding dose segmentation schemes, including 5 Gy × 10 f, 9 Gy × 5 f, 8 Gy × 8 f, 8 Gy × 7 f, 8 Gy × 6 f, 8 Gy × 5 f, 7 Gy × 8 f, 7 Gy × 7 f, 7 Gy × 6 f, 6 Gy × 10 f, 6 Gy × 8 f, 6 Gy × 5 f, 5 Gy × 8 f, 5 Gy × 6 f, and 5 Gy × 5 f. The presence of multiple dose segmentation modes was not conducive to making comparisons between groups. With reference to relevant literature, we employed the Linear-Quadric (LQ) model equation to uniformly convert physical doses in various dose segmentation modes into biologically effective doses (BEDs) using the following formula: BED = n × d × [1 + d/(α/β)], where n is the number of irradiations, d is the single irradiation dose, α/β is the irradiation dose when the killing contribution caused by single-strand breaks and double-strand breaks in the tissue is equal, and α/β is generally set to 10 for solid tumors.
Patient follow-up
All patients were followed up until their death through telephone follow-up and hospital visits. The deadline for the follow-up period was June 30, 2022. The follow-up process included an examination of the patient’s local recurrence, distant metastasis, survival, and incidence of radiotherapy-related adverse reactions. After the completion of SBRT treatment, patients underwent the initial chest CT reexamination so that their condition at 1 month could be evaluated. Subsequent chest CT scans were scheduled every 3 months for the first two years and then every 6 months thereafter. OS was defined as the time between the end of pulmonary oligometastatic SBRT and the date of tumor-related death or the follow-up deadline. Progression-free survival (PFS) was defined as the time between the end of oligometastatic SBRT and the date of the first occurrence of disease progression, including local recurrence, pulmonary progression, distant progression, or the follow-up deadline. LC was defined as the time between the end of pulmonary oligometastatic SBRT and the date of emergence of new lesions within or at the edge of the PTV or the recurrence of the original lesion.
Statistical methods
For baseline data, quantitative variables are expressed as median and interquartile range (IQR), and categorical variables are expressed as counts and percentages. Wilcoxon paired rank sum test was used to compare the changes of ALC, NE and NLR before and after SBRT. Kaplan-Meier (KM) method was used for survival analysis and corresponding survival curve was generated. Cox proportional hazard regression model was used for univariate and multifactor analysis, and it was used to calculate the hazard ratio (HR) and 95% confidence interval (95% CI). Results with P value <0.05 were considered statistically significant. The receiver operating characteristic (ROC) curve of NLR after SBRT was plotted, and the corresponding optimal truncation value was calculated using the Youden index. The corresponding KM survival curve was plotted respectively for the group with NLR greater than or equal to the cut-off value and the group with NLR less than the cut-off value after SBRT, and the difference between the two groups was compared by log-rank method. P value <0.05 was considered as statistically significant. Spearman rank correlation analysis was used to determine the relationship between PTV and ALC before and after SBRT and NE after SBRT. Linear regression was used to analyze the relationship between ALC and clinical factors after SBRT. Statistical analysis was performed using GraphPad Prism version 8.4.0 (GraphPad Software) to plot the survival curve.
Results
Clinical characteristics of patients
We reviewed the clinical data of 43 patients with pulmonary oligometastatic tumors who received SBRT combined with immunotherapy (Table 1). ALC, NE, NLR and other relevant indicators were collected before and after SBRT. The study cohort comprised 31 (72.09%) males and 12 (27.91%) females, with 26 (60.47%) patients younger than 65 years old and 17 (39.53%) patients aged 65 years and above. ECOG scores were 0–1 in 30 (69.77%) cases and higher than 1 in 13 (30.23%) cases. There were 14 (32.56%) cases of primary lung cancer, 7 (16.28%) cases of primary colorectal cancer, 15 (34.88%) cases of primary esophageal cancer, 7 (16.28%) cases of primary head and neck malignant tumors, and 7 cases of other tumors, including 4 cases of cervical cancer, 1 case of endometrial cancer, 1 case of kidney cancer, and 1 case of thymus cancer. The primary tumor pathological type was squamous cell carcinoma in 24 (55.81%) cases and non-squamous cell carcinoma in 19 (44.19%) cases. Among the 39 (90.70%) patients who underwent chemotherapy, the interval between chemotherapy and SBRT was more than 4 weeks, and 4 (9.30%) patients had not undergone chemotherapy prior to SBRT. Of the 43 patients, a total of 55 metastatic lesions were treated with SBRT, 35 patients were single metastases in the lung, 5 patients were irradiated with 2 metastases, 2 patients were irradiated with 3 metastases, and 1 patient was irradiated with 4 metastases. Patients with ≥2 nodules were analyzed for survival by nodule with the largest diameter. There were 29 patients with maximum lesion diameter <2 cm and 14 patients with maximum lesion diameter ≥2 cm. In patients with multiple irradiated lesions, the PTV volume was defined as the sum of the PTV volume of multiple lesions without overlapping. The median PTV volume was 27.80 cm2, and the interquartile interval was 19.7–59.2 cm3. The median BED is 100 Gy, and the interquartile interval is 80–100 Gy.
Table 1
Characteristics | N (%) |
---|---|
Age (years) | |
<65 | 26 (60.47) |
≥65 | 17 (39.53) |
Sex | |
Female | 12 (27.91) |
Male | 31 (72.09) |
ECOG score | |
>1 | 13 (30.23) |
0–1 | 30 (69.77) |
Smoking history | |
Yes | 19 (44.19) |
No | 24 (55.81) |
Primary tumor | |
Lung cancer | 14 (32.56) |
Esophagus cancer | 15 (34.88) |
Colorectal cancer | 7 (16.28) |
Head and neck cancer | 7 (16.28) |
Pathological type | |
Squamous carcinoma | 24 (55.81) |
Nonsquamous carcinoma | 19 (44.19) |
Chemotherapy | |
Yes | 39 (90.70) |
No | 4 (9.30) |
Targeted therapy | |
Yes | 28 (65.12) |
No | 15 (34.88) |
Time interval between radiotherapy and immunotherapy (days) | |
≤21 | 22 (51.16) |
>21 | 21 (48.84) |
SBRT target size (cm) | |
≥2 | 14 (32.56) |
<2 | 29 (67.44) |
Number of targets | |
1 | 35 (81.40) |
>1 | 8 (18.60) |
BED (Gy), median [IQR] | 100 [80–100] |
PTV (cm2), median [IQR] | 27.80 [19.7–59.2] |
ECOG, Eastern Cooperative Oncology Group; SBRT, stereotactic body radiotherapy; BED, biologically effective dose; PTV, planning target volume; IQR, interquartile range.
Analysis of ALC, NE, and NLR changes before and after SBRT
The Wilcoxon paired rank sum test was used to compare the changes of ALC, NE, and NLR before and after SBRT, and the results showed that changes in both ALC and NLR were statistically significant (both P values <0.001), while the change of NE was not statistically significant, as illustrated in Table 2. To determine whether the timing of blood drawing after SBRT affected the NLR value, the Mann-Whitney test was employed. The analysis revealed that varying the blood drawing time after radiotherapy did not yield statistically significant differences in the NLR value after SBRT, as shown in Table 3.
Table 2
Index | Before SBRT | After SBRT | Amplitude of change | P |
---|---|---|---|---|
ALC | 1.22 (0.96–1.42) | 0.98 (0.64–1.12) | −22.73 | <0.001 |
NE | 3.09 (2.38–4.18) | 2.94 (2.19–4.05) | −9.46 | 0.58 |
NLR | 2.71 (2.13–3.64) | 3.16 (2.25–5.34) | 38.04 | <0.001 |
Values are presented as median (range). ALC, absolute lymphocyte count; NE, neutrophil count; NLR, neutrophil-to-lymphocyte ratio; SBRT, stereotactic body radiotherapy.
Table 3
Index | 1–2 weeks (n=23) | 3–4 weeks (n=20) | Z | P |
---|---|---|---|---|
NLR | 3.06 (2.23–4.46) | 3.27 (2.46–6.25) | −0.546 | 0.58 |
Values are presented as median (range). NLR, neutrophil-to-lymphocyte ratio; SBRT, stereotactic body radiotherapy.
Survival analysis

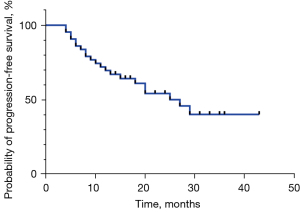

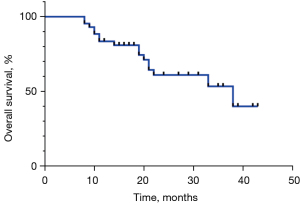

At the cutoff of June 30, 2022, the median follow-up time was 22.00 (IQR, 14.00–31.00) months. The median survival time was 38.00 (IQR, 17.24–58.76) months, and the 1-year and 2-year OS rates were 83.46% and 60.99%, respectively. The median PFS was 27.00 (17.84–36.13) months, and the 1-year and 2-year PFS rates were 69.92% and 54.25%, respectively. Additionally, the 1-year and 2-year LC rates were 90.3% and 87.5%, respectively (Figures 2-4).
Analysis of the prognostic factors of OS in SBRT combined with immunotherapy
Cox regression was used to analyze the association with OS of age, ECOG score, primary tumor site, primary tumor pathological type, smoking status, BED, number of SBRT target areas, administration of targeted therapy postradiotherapy, administration of chemotherapy postradiotherapy, PTV, SBRT interval immunotherapy time, ALC, NLR before SBRT, and ALC and NLR after SBRT. Multivariate analysis revealed NLR to be an independent prognostic factor for OS after radiotherapy [hazard ratio (HR) =1.10, 95% CI: 1.01–1.9; P=0.02]. Furthermore, an SBRT interval immunotherapy duration of ≤21 days, indicative of simultaneous SBRT combined with immunotherapy, was associated with longer OS (HR =0.24, 95% CI: 0.06–0.89; P=0.03), as shown in Table 4.
Table 4
Variables | Univariate analysis | Multivariate analysis | |||||
---|---|---|---|---|---|---|---|
HR | 95% CI | P | HR | 95% CI | P | ||
Age (<65 years vs. ≥65 years) | 0.50 | 0.16–1.55 | 0.22 | ||||
ECOG score (≤1 vs. >1) | 1.61 | 0.51–5.02 | 0.41 | ||||
Primary tumor | 0.99 | 0.66–1.46 | 0.94 | ||||
Pathological type (squamous vs. nonsquamous) | 0.72 | 0.27–1.92 | 0.50 | ||||
Smoking history (yes vs. no) | 0.96 | 0.35–2.62 | 0.94 | ||||
BED | 1.00 | 0.97–1.04 | 0.91 | ||||
Number of targets (1 vs. >1) | 1.43 | 0.32–6.35 | 0.63 | ||||
Chemotherapy (yes vs. no) | 0.76 | 0.17–3.41 | 0.72 | ||||
Targeted therapy (yes vs. no) | 3.07 | 0.87–10.81 | 0.08 | ||||
SBRT target size (<2 vs. ≥2 cm) | 1.28 | 0.41–3.97 | 0.67 | ||||
PTV | 1.03 | 1.00–1.06 | 0.07 | ||||
Time interval between radiotherapy and immunotherapy ≤21 vs. >21 days | 0.18 | 0.05–0.63 | 0.007 | 0.24 | 0.06–0.89 | 0.03 | |
ALC before SBRT | 0.38 | 0.11–1.28 | 0.11 | ||||
NLR before SBRT | 1.23 | 0.89–1.71 | 0.20 | ||||
ALC after SBRT | 0.07 | 0.01–0.37 | 0.002 | ||||
NLR after SBRT | 1.14 | 1.06–1.23 | <0.001 | 1.10 | 1.01–1.9 | 0.02 |
HR, hazard ratio; CI, confidence interval; ECOG, Eastern Cooperative Oncology Group; BED, biologically effective dose; SBRT, stereotactic body radiotherapy; PTV, planning target volume; ALC, absolute lymphocyte count; NLR, neutrophil-to-lymphocyte ratio.
According to the ROC curve analysis, an optimal NLR cutoff value of 4.12 was identified, yielding the largest Youden index of 0.826, with a sensitivity is 68.75 and a specificity of 88.89. The patients were divided into two groups based on the cutoff value. KM survival analysis was used to analyze the OS outcomes for both groups, and the difference was found to be statistically significant. The results showed that the group with NLR ≤4.12 after SBRT exhibited a longer median survival time (log-rank P=0.001), as shown in Figures 5,6.
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/5/articles/89850/public/89850-PB11-2592-R1.jpg/w300)
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/5/articles/89850/public/89850-PB12-9305-R1.jpg/w300)
Correlation analysis between PTV and ALC after SBRT

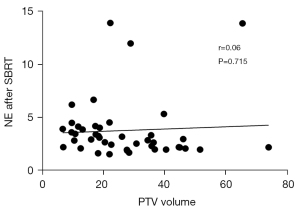

Spearman rank correlation analysis was employed to analyze the relationship between the PTV and various parameters, specifically ALC after SBRT, ALC before SBRT, and NE after SBRT. There was no statistically significant correlation between PTV and ALC before SBRT, and NE after SBRT. However, PTV was negatively correlated with ALC after SBRT (r=−0.41; P=0.006), and the difference was statistically significant (Figures 7-9).
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/5/articles/89850/public/89850-PB13-2517-R1.jpg/w300)
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/5/articles/89850/public/89850-PB14-4927-R1.jpg/w300)
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/5/articles/89850/public/89850-PB15-2537-R1.jpg/w300)
After the normality test, the ALC count after SBRT conformed to a normal distribution (Kolmogorov-Smirnov: Z=0.635, P=0.81). Consequently, linear regression was employed to analyze the association of various factors with ALC after SBRT, including age, primary tumor site, pathological type of primary tumor, administration of chemotherapy post-radiotherapy, administration of targeted therapy post-radiotherapy, PTV, number of SBRT target areas, immunological interval after radiotherapy, and ALC count before SBRT. The analysis revealed a positive correlation between ALC before SBRT and ALC after SBRT (P<0.001). Furthermore, PTV was negatively correlated with ALC after SBRT (P=0.04), and the difference was statistically significant, as shown in Table 5.
Table 5
Variables | Univariate analysis | Multivariate analysis | |||||
---|---|---|---|---|---|---|---|
B | 95% CI | P | B | 95% CI | P | ||
Age | 0.08 | −0.17 to 0.34 | 0.50 | ||||
Primary tumor | −0.04 | −0.14 to 0.06 | 0.42 | ||||
Pathological type | 0.04 | −0.21 to 0.29 | 0.76 | ||||
Chemotherapy | 0.15 | −0.28 to 0.58 | 0.48 | ||||
Targeted therapy | −0.08 | −0.34 to 0.18 | 0.55 | ||||
PTV | −0.01 | −0.02 to 0 | <0.001 | −0.01 | −0.01 to 0 | 0.04 | |
Number of targets | −0.13 | −0.45 to 0.19 | 0.41 | ||||
SBRT target size | 0.01 | −0.26 to 0.27 | 0.95 | ||||
Time interval between radiotherapy and immunotherapy | 0.21 | −0.03 to 0.45 | 0.07 | ||||
ALC before SBRT | 0.54 | 0.33 to 0.74 | <0.001 | 0.26 | 0.26 to 0.68 | <0.001 |
ALC, absolute lymphocyte count; SBRT, stereotactic body radiotherapy; CI, confidence interval; PTV, planning target volume.
Discussion
An increasing number of studies support radiotherapy for improving the immunogenicity of tumor cells. Notably, SBRT has emerged as a prominent modality due to its potential effect on immune function, regulation of the TME, and promotion of the body’s antitumor immune response. For example, it can enhance the release of antigens for immune recognition, regulate the immune mechanism of tumors, and promote the infiltration of immune cells (20). The TME is immunosuppressive and involves multiple mechanisms for achieving the immune escape of tumor cells, which is the main drug resistance mechanism associated with ICIs. SBRT can change tumor cells from a “cold” to “hot” state, rendering them more sensitive to ICI treatment, by regulating the TME. Therefore, SBRT combined with immunotherapy has a synergistic effect, which has been confirmed by multiple preclinical studies (21). At present, many clinical trials investigating the combination of treatment SBRT and ICIs in the treatment of advanced tumors are underway (22,23). Spaas and his team conducted a phase II randomized controlled study, the CHEER study, which investigated SBRT combined with immunotherapy in multiple stage IV tumors. The primary endpoint was PFS, and the secondary endpoints included OS, objective response rate, LC, quality of life, and safety. The study is ongoing, with preliminary results suggesting that SBRT combined with immunotherapy across various advanced solid tumors could not only improve the LC rate but also effectively control the tumor lesions in the irradiation field (24).
In our study, we retrospectively analyzed 43 patients treated with SBRT combined with immunotherapy and analyzed the efficacy through LC, PFS, OS, and other survival indicators. The results showed that the 1- and 2-year LC rates were 90.3% and 87.5%, respectively, the 1-year and 2-year OS rates were 83.5% and 61.0%, respectively, and the 1-year and 2-year PFS rate was 69.9% and 54.3%, respectively; no adverse reactions of grade 3 or higher were observed. In terms of LC rate, compared with the existing SBRT-related studies on pulmonary oligometastatic tumors, the data in our study were similar or achieved a higher LC rate (25). For example, in the study of Sharma et al., the 2-year LC rate of SBRT in the treatment of lung oligometastases was 85%, while in our study it was 87.5% (26). This suggests that SBRT combined with immunotherapy has a high LC rate and survival rate, along with acceptable safety. The results of multivariate analysis for OS indicated that patients who received concurrent radiotherapy and immunotherapy (interval ≤21 days) had longer OS than those who received sequential radiotherapy (interval >21 days). This result was similar to that in previous research. The retrospective study of Woody et al. showed that patients who received SBRT before immunotherapy had notably worse OS outcomes than those who received concurrent or subsequent immunotherapy. This may be attributed to SBRT’s potential to enhance tumor immunogenicity and sensitize ICIs by regulating the TME (27). At present, the optimal dose segmentation mode and the optimal interval time of SBRT combined with ICIs remain unclear. The SAFRON II trial compared the efficacy of single segmentation (28 Gy/1 f) and multi-segmentation (12 Gy/4 f) SBRT in the treatment of pulmonary oligometastatic tumors, and there was no significant difference in OS or disease-free survival between the two groups (28). Preclinical data suggest that immunotherapy is most effective in preventing delayed presentation of antigens in an immune-tolerant setting when combined in parallel or in close sequence with SBRT; however, this has not been proven by clinical studies. Therefore, more large-scale retrospective and prospective studies are imperative to confirm these findings. Our study also showed that NLR is an independent prognostic factor for OS after SBRT. The higher the NLR after SBRT, the poorer the patient’s OS. NLR is defined as the ratio of peripheral blood NE to lymphocyte count. This ratio reflects an enhanced neutrophil-dependent inflammatory response and/or a reduced lymphocyte-mediated antitumor immune response. Platelet-to-lymphocyte ratio (PLR) and peripheral blood lymphocyte-to-monocyte ratio (LMR) are also indicators reflecting the body’s inflammatory response (29,30). Studies have shown that systemic immune-inflammation index (SII), NLR, PLR, LMR, and other inflammatory indicators have certain predictive value in the prognosis of various tumor types, among which peripheral blood SII, NLR and PLR are considered to be negatively correlated with OS and LMR positively correlated with tumor prognosis (31-34). This predictive value is particularly pronounced in patients receiving immunotherapy and radiotherapy, as lymphocyte count is closely associated with the level of radiotherapy and immunotherapy. For example, a retrospective study showed that SII could predict the resection rate and OS of esophageal squamous cell carcinoma patients after neoadjuvant radiotherapy. Low SII (less than or equal to 916.6×109/L) was associated with longer OS. a higher SII was associated with a lower resect ability rate (34). Notably, a high NLR has been shown to be an independent risk factor for survival in patients receiving immunotherapy. Moreover, a meta-analysis suggested that NLR could be used as a prognostic indicator for SBRT patients (35). Analysis results from three phase I–II trials at MD Anderson Cancer Center showed that postradiotherapy ALC predicted the distant effects and survival outcomes of patients receiving combined immunotherapy with radiotherapy. Although these preliminary findings need to be confirmed with additional data, they point to the importance of monitoring ALC in patients receiving combined immunotherapy with radiotherapy and the potential of manipulating this parameter to induce a distant effect (36). In this study, the Wilcoxon paired rank sum test was used to compare the changes in ALC, NE, and NLR before and after SBRT, and the results showed that there were statistically significant changes in ALC (P<0.0001) and NLR (P=0.007) but not in NE. This suggests that the primary factor influencing the change in NLR after SBRT is the reduction of ALC after SBRT; that is, the depletion of lymphocytes, which has also been confirmed by a previous study (37). Lymphocytes play a key role in cancer surveillance. Cytotoxic T cells and natural killer cells are the key mediators of anti-tumor response, activated B cells activate tumor-infiltrating lymphocytes to obtain anti-tumor activity, and lymphocyte depletion reflects the impaired anti-tumor response (38). Programmed cell death protein 1 (PD-1) antibodies induce immunogenic cell death by directly activating cytotoxic T lymphocytes (39,40). Therefore, an increased NLR after SBRT may be interpreted as SBRT-induced lymphocytopenia, with SBRT reducing the body’s response to ICIs and resulting in shortened survival. Although there was no statistically significant difference in NE before and after SBRT in our study, related studies have reported that neutrophils can secrete signaling molecules that promote tumor angiogenesis and escape while inhibiting cytotoxic T lymphocytes, indicating that neutrophils also play a regulatory role in tumor immune response (41,42). Recently, the prognostic value of NLR has been demonstrated in clinical trials involving patients treated with ICIs (43). The study results of Li et al. showed that in patients with advanced solid tumors receiving immunotherapy, an NLR ≥5 during immunotherapy predicted worse OS (44). However, few studies have explored the ability of NLR to predict the prognosis of patients receiving SBRT. A retrospective study with a small sample showed that the higher the NLR and PLR were after SBRT, the worse the survival outcomes of patients with hepatocellular carcinoma. Both the NLR and PLR increased significantly after SBRT and slowly decreased to the pre-SBRT value 6 months later (45).
Our study involved certain limitations that should be mentioned. First, our sample size was small and might have introduced a degree of selection bias. Second, since most patients receiving SBRT combined with immunotherapy lacked previous peripheral blood lymphocyte subsets analyses, indicators related to lymphocyte subsets were excluded, limiting the ability to further determine the correlation between SBRT and lymphocytopenia.
Recently, it has been reported that the PTV may be related to the reduction of lymphocyte count after radiotherapy. Meanwhile, some radiotherapy parameters, such as lung V5, mean lung dose, and heart V5, can also predict radiation-related lymphocytopenia (46,47). However, there are few studies investigating the prediction of PTV for the efficacy of SBRT combined with immunotherapy. It has been reported that in patients with pancreatic cancer receiving SBRT combined with immunotherapy, PTV could predict the reduction of ALC after SBRT, and the reduction of ALC after SBRT was related to shorter OS, with PTV also being associated with OS (38). Chen et al.’s study showed that when combined with immunotherapy, SBRT may better preserve lymphocytes and improve survival outcomes as compared to traditional conventional fractionated radiotherapy (48). In our study, Spearman rank correlation analysis showed that PTV was negatively correlated with ALC after SBRT. Moreover, linear regression analysis also showed that PTV was correlated with ALC reduction after SBRT, aligning with previous findings (38). However, in the OS-related Cox regression analysis, there was no statistical significance between PTV and OS prognosis. This may be due to the small sample size, which failed to fully reflect the difference between groups. Notably, at the data level, the HR in the Cox univariate analysis was greater than 1, indicating a risk factor association, suggesting that a large PTV may be associated with poor OS. Narrowing the PTV range could potentially mitigate the shortening of OS indirectly caused by lymphocytopenia. Further prospective studies are needed to demonstrate the correlation between dynamic changes in PTV, NLR, and survival outcomes in patients treated with SBRT combined with immunotherapy.
Conclusions
According to our preliminary research findings, it can be preliminarily posited that SBRT combined with immunotherapy can achieve satisfactory LC, long PFS and OS, and improve the quality of life of patients with pulmonary oligometastatic tumors, with the side effects being controllable. SBRT and drug therapy, especially immunotherapy, can complement one another in the treatment of lung metastases and enhance clinical efficacy. However, additional prospective randomized controlled studies are needed to confirm their combined clinical value. Furthermore, investigations are needed to identify the optimal segmentation mode of SBRT, determine the interval time of combined immunotherapy, optimize the timing of treatment, and develop individualized and comprehensive treatment plans for patients with multi-tumor lung metastases and other types of tumor.
Acknowledgments
Funding: This work was supported by the grants from
Footnote
Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-588/rc
Data Sharing Statement: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-588/dss
Peer Review File: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-588/prf
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-588/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). It was approved by the medical ethics committee of The Affiliated Hospital of Soochow University [No. 440(2024)]. The ethics committee waived the necessity of informed consent due to the retrospective analysis of routine data. Patient records/information were anonymized and deidentified prior to analysis.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
