Stem-like exhausted CD8 T cells in pleural effusions predict improved survival in non-small cell lung cancer (NSCLC) and mesothelioma

Introduction

Cancers harbour somatic mutations that can be presented as novel antigens to the immune system and engage cytotoxic CD8 T cells (1). The number, location and functional status of intratumoral CD8 T cells has been shown to affect clinical outcomes in multiple solid tumors (2-5).

However, successful elimination of cancer cells by CD8 T cells is hampered by a broad set of immunosuppressive pathways in the tumor microenvironment (TME), one of which is T-cell exhaustion (6,7). Understanding the nature and degree of this exhaustion in tumor-associated T cells is crucial, as it could inform immunotherapy treatment regimens. It is well recognised that tumor infiltrating lymphocytes (TILs) exhibit an exhausted phenotype and impaired effector function, partly driven by long term T-cell receptor (TCR) engagement by cancer antigens (6-10). Based on work in chronic viral infections in mouse models, a nuanced view of T-cell exhaustion has emerged which recognises that T-cell exhaustion is a progressive state. Instead of being a homogenous population, exhausted CD8 T (Tex) cells exhibit a gradient of phenotypic and functional states with distinct transcriptional and epigenetic signatures (11-15). These cell states are delimited by progenitor or ’stem-like’ exhausted T (Tex^stem) cells which retain proliferation and cytotoxic abilities. Following chronic antigenic stimulation, Tex^stem cells gradually transition through a series of poorly defined intermediary states into terminally exhausted T (Tex^term) cells that are functionally inefficient and have limited reinvigoration capacity.

Several studies have identified Tex^stem and Tex^term cells within the TME (16-19), and in animal models, Tex^stem cells are associated with improved tumor control (14). Across a series of cancers, Tex^stem cells are associated with improved outcomes following immune checkpoint blockade (ICPB) (14,18,19), whilst there is evidence in vitro that Tex^term cells can be associated with a poor prognosis (20). In a cohort of 14 non-small cell lung cancer (NSCLC) patients, single cell sequencing was used to demonstrate that a higher ratio of ‘pre-exhausted’ to exhausted T cells was associated with better prognosis (21).

One of the unique TME in advanced cancers, especially thoracic malignancies, is malignant pleural effusions (PE). Malignant PEs usually result from pleural dissemination of cancer cells, they are typically lymphocyte-rich (22), providing an interface between tumor cells and immune cells, and thus a ‘window’ on tumor-immune events. These samples also allow sequential investigation in some patients and have the benefit of requiring minimal laboratory manipulations prior to cell phenotyping. We therefore sought to determine if PE can be used to measure T-cell exhaustion and then to determine if the T-cell exhaustion status can potentially serve as a prognostic biomarker.

The field lacks a single, agreed-upon definition of Tex subsets. Researchers have distinguished Tex subsets phenotypically based on the expression levels of various combinations of inhibitory and costimulatory receptors and transcription factors (15,23-25). In this study, we chose to use the markers employed by Jansen and colleagues when sorting stem-like and terminally exhausted T cells from human tumors (23). Tex^stem cells are defined by intermediate expression of the inhibitory receptor programmed death 1 (PD1), undetectable expression of CD39 and positive expression of CD28, while high PD1 and CD39 co-expression indicated a Tex^term phenotype. CD39 is an ectonucleotidase in the adenosine pathway and is marker of terminal T-cell exhaustion (26,27). In melanoma and kidney cancer, CD39 differentiates terminally exhausted TIM3 expressing cells from TIM3⁻ cells (23,25). CD28 is a costimulatory molecule that is co-expressed with the transcription factor TCF1 in Tex^stem and is a critical marker of functional TCF1⁺ stem-like CD8 T cells in both chronic viral infection and cancer (12,23,28). Using these makers, Tex^stem and Tex^term cells were defined in the malignant PE from NSCLC patients to assess their prognostic relevance and were again used in a validation study in a mesothelioma patient cohort. We also performed mass cytometry and deep single cell RNA and TCR sequencing on Tex^stem and Tex^term cells isolated from the PE of NSCLC and mesothelioma patients to dissect the phenotypic and functional complexities of these cell subsets and examine their antigen specificity. We present this article in accordance with the STROBE reporting checklist (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-284/rc).

Methods

Patients and PE samples

To characterise Tex subsets and their prognostic significance, we accessed the National Centre for Asbestos Related Diseases Biobank which has collected consecutive PE samples from patients attending Sir Charles Gairdner Hospital, Perth, Australia since 2012. For CyTOF analysis, five mesothelioma and three lung cancer samples were selected based on sample availability of each tumor type. For scRNA-seq two samples were selected for each tumor type based on sample availability and adequate frequencies of Tex cell subsets for data analysis. PE samples were processed and cryopreserved in RPMI-1640 media, 50% newborn calf serum (NCS) and 10% dimethyl sulfoxide. For some samples, CD45⁺ cells were positively selected using EasySep Human CD45 Depletion Kit (Stemcell, cat17898) following the manufacturer’s instructions before cryopreservation. For the present study, all cases with a confirmed pathological diagnosis of NSCLC or mesothelioma and a malignant PE sample available within three months of diagnosis and prior to treatment were identified and analysed. No patients had prior pleurodesis. For a subset of cases, multiple PE samples were available.

Clinical data including age, gender, smoking history (ex/current or never), Eastern Cooperative Oncology Group (ECOG) performance status (0–1 or 2–4), Charlson Comorbidities Index (7–9 or 10–13), histological subtype [NSCLC (squamous or non-squamous); mesothelioma (epithelioid, sarcomatoid or biphasic)] and treatment [number of lines of systemic therapy received (0, 1 or ≥2) and treatment regimens] were collected from hospital records. For non-squamous NSCLC cases, epidermal growth factor receptor (EGFR), Kirsten rat sarcoma virus (KRAS), ALK, ROS1 mutation status and PD-L1 total proportion score (TPS) were recorded. The prognostic outcome measure was OS, calculated from the day of histological diagnosis until death or date of census. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). All participants provided written informed consent. This study was approved by the Human Research Ethics Committees of Sir Charles Gairdner Osborne Park Health Care Group (RGS0000001516), the University of Western Australia and the Fred Hutchinson Cancer Centre Human Subjects Committee (IRB file/approval number 10422).

Flow cytometry

PE samples were thawed, washed, filtered using a 100 µm cell strainer to remove clumps and debris, and then resuspended in PBS 1 mM EDTA. Cells were stained with Fixable viability dye eFluor 780 (eBioscience, Carlsbad, USA) for 20 minutes at room temperature (RT) followed by cell surface staining. For cell surface staining, cells were stained with fluorochrome conjugated anti-CD3–BV510 (BioLegend, UCHT1, San Diego, USA), anti-CD4–BV711 (BD Biosciences, SK3, Milpitas, USA) or –BB515 (BD Biosciences, RPA-T4), anti-CD8–BB700 (BD Biosciences, RPA-T8), anti-PD1–PE-Cy7 (BD Biosciences, EH12.1), anti-CD39–PE (BD Biosciences, Tu66), anti-CD28–APC (BioLegend, CD28.2) antibodies prepared in Brilliant Stain Buffer (BD Biosciences, cat# 566349) for 30 minutes at 4 ℃. For intracellular staining, cells were fixed and permeabilised for 20 minutes using the Foxp3 Transcription Factor Staining Buffer Set (eBioscience), and then incubated with fluorochrome conjugated anti-TCF1 antibody–AF488 (Cell Signalling, C63D9, Danvers, USA) in 1x Permeabilization Buffer (eBioscience) for 30 minutes at RT. After washing twice, samples were collected and analysed using LSR Fortessa or FACS Melody. Data were analysed with FlowJo software version 10.6.

Percentages and ratios of Tex^stem (PD1^mid CD39⁻ CD28⁺) and Tex^term (PD1^hi CD39⁺) CD8 T cells were reported. All Tex subsets were gated on live CD3⁺ CD8⁺ CD4⁻ T cells. Gating strategy is shown in Figure S1.

Serum mesothelin

Pre-treatment serum samples were available for 26 patients with epithelioid mesothelioma from the National Centre for Asbestos Related Diseases Biobank. Mesothelin concentrations were determined following the manufacturer’s instructions using the MESOMARK assay (Fujirebio Diagnostics, Malvern, USA).

Mass cytometry

Purified antibodies lacking carrier proteins were purchased as shown in Table S1. Antibody conjugation was performed according to the protocol provided by Fluidigm (Markham, Canada). PE samples were thawed, washed, and stained with cisplatin (5 mM) in PBS for 5 minutes on ice, and incubated with primary and secondary surface antibody cocktails for 20 minutes each on ice and fixed overnight in 2% paraformaldehyde. The next day, cells were washed and permeabilised using permeabilization buffer (eBioscience) and stained with intracellular antibodies for 30 minutes at RT followed by DNA staining (Cell-ID intercalator-Ir, Fluidigm) for 30 minutes at RT. Cells were lastly washed three times with water and run on CyTOF (Helios, Fluidigm). After CyTOF acquisition, any zero values were randomised using a uniform distribution of values between 0–1 using R and the signal of each parameter was normalised based on EQ bead values (Fluidigm). CD8 T cells were manually gated and subjected to UMAP analysis similar to that previously described using customised R scripts based on the ‘flowCore’ and ‘uwot’ R packages. Data were transformed using the logicleTransform function with parameters: w=0.25, t=16409, m=4.5, a=0 to match scaling historically used in Flowjo.

Single cell sequencing

We used scRNA-seq to profile four pre-treatment PE samples from two lung adenocarcinoma and two epithelioid mesothelioma patients (Table S1). PE samples were stained with TotalSeq-C antibody cocktails along with fluorescent antibody cocktails (Table S1). T cells were isolated by FACS sorting and loaded onto the 10x Chromium controller using Chromium Next GEM Single Cell 5’ Reagent Kits v2 (Dual Index) with Feature Barcoding technology for Cell-Surface Protein and Immune Receptor Mapping (10x Genomics) according to the manufacturer’s protocol. Quality of final libraries was assessed using Agilent 2200 TapeStation with High Sensitivity D5000 ScreenTape, quantified using a Qubit Fluorometer (ThermoFisher) and KAPA library quantification kit (Roche), and carried through to sequencing with Novaseq S1 on Illumina sequencer. Raw fastq files were pre-processed through CellRanger Pipeline (10x Genomics) and aligned to the reference genome (refdata-gex-GRCh38-2020-A). Seurat package in R library, was used to remove RNA features that appeared in less than 10 cells: VDJ and BCR genes and cells with less than 200 or more than 4,000 RNA features. Then RNA data was normalised using LogNormalize across features and the FindVariableFeatures function with 500 variables using variance-stabilizing transformation method (29). Antibody-derived tag (ADT) data was normalised using centred log ratio transformation across cells. To account for batch effect, Seurat’s data integration workflow was applied on RNA and ADT data separately (29). We perform weighted nearest neighbour analysis, which entails performing principal component analysis (PCA) on integrated RNA and integrated ADT datasets and using FindMultiModalNeighbors function to define and construct weighted nearest neighbour graphs (29). We used 30 principal components (PCs) from integrated RNA data and 18 PCs from integrated ADT data. Clustering was performed using SLM algorithm on shared nearest neighbour with resolution of 2.0.

Statistics

Descriptive summaries included frequency distributions and means, standard deviations or medians and ranges for categorical and continuous data, respectively. Associations between T-cell subsets and categorical patient or disease variables were analysed using Mann-Whitney U tests or Kruskall Wallis H tests as appropriate. Pearson’s correlation was used to calculate the correlation between T-cell subsets, age and mesothelin. Median OS was estimated using the Kaplan-Meier method and different groups compared via log-rank test. Cox regression analysis was performed with T-cell subset percentages as a continuous variable, as well as a dichotomous variable stratifying into ‘high’ or ‘low’ abundance according to the median value, respectively. Multivariate analyses of the Cox regression model were applied to estimate hazard ratios (HRs) and 95% confidence intervals (CIs). Regression coefficient analysis was performed to analyse the change in Tex over time. Statistical analyses were conducted with IBM SPSS Statistics version 28.0 and GraphPad Prism software version 9. All hypotheses were two-sided and P values <0.05 were considered statistically significant.

Results

NSCLC patient characteristics

Analysis was performed on a cohort of 43 NSCLC patients with histo- and/or cyto-logically confirmed malignant PE. The median age of the cohort was 73 and there were 22 females (51.2%). Most patients were former (55.8%) or current (30.2%) smokers. The majority of patients had non-squamous carcinomas (39 adenocarcinomas, one adenosquamous and one poorly differentiated) and two patients had squamous cell carcinomas. Of the 41 non-squamous carcinomas, molecular testing was performed for 39 patients and 11 (28.2%) had a KRAS mutation, seven (17.9%) had an EGFR mutation and one (2.6%) had a ROS1 fusion. Tumor PD-L1 tumor proportion score was available for 22 patients and was <1%, 1–49% and ≥50% in six (27.2%), eight (36.4%) and eight (36.4%) patients, respectively (Table 1). Twenty patients received at least one line of systemic therapy. The treatment regimens used are listed in Table 1. In the first line setting, 11 patients received platinum doublet chemotherapy with or without maintenance pemetrexed, only five patients received ICPB (four single agent and one chemoimmunotherapy) and four received an EGFR tyrosine kinase inhibitor. In subsequent line therapies, four patient received chemotherapy and five received single agent ICPB.

Distinct T-cell exhaustion subsets can be identified in malignant PEs in NSCLC

In order to assess T-cell exhaustion, we focused on Tex^stem and Tex^term cells defined here, and previously (23), as CD3⁺CD4⁻CD8⁺CD39⁻PD1^midCD28⁺ and CD3⁺CD4⁻CD8⁺CD39⁺PD1^hi T cells, respectively (Figure 1A and Figure S1). We explored the feasibility of using PEs to characterize the phenotype of exhausted T cells. To assess the short-term stability of Tex cell populations, we collected PE from four patients. Each patient underwent serial sampling, where 2–3 samples were collected independently across a period of 4–8 days. In these samples, CD4 and CD8, Tex^stem and Tex^term cell subsets were consistent across the sampling period, indicating remarkable short-term stability of T cells within the PE (Figure 1B).

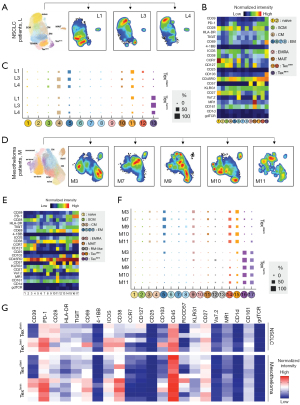

Figure 1 Characterization and clinical significance of exhausted CD8 T cell subsets in malignant pleural effusions of NSCLC patients. (A) Identification of exhausted CD8 T cell subsets in malignant pleural effusions of NSCLC patients. Representative flow cytometry plot of Tex^stem and Tex^term CD8 T cell subsets according to PD1, CD39 and CD28 expression in a NSCLC patient. Gated on live CD3⁺CD4^–CD8⁺ pleural effusion T cells. (B) Frequency of T cell subsets within the PE are consistent over short time periods. Data are T cell subsets from pleural effusions of four patients. (C) Percentages of Tex^stem and Tex^term cells within CD8 T cells from malignant pleural effusions of NSCLC (n=43). The median value is presented. Comparisons made between groups were performed using Mann-Whitney U test. (D) MFI of TCF1 by Tex^stem, and Tex^term cell subsets in NSCLC. Data are presented as mean ± SD. Comparisons made between groups were performed using independent samples t-test. (E) Tex^stem, but not Tex^term or PD1⁺ cells correlate with improved survival in NSCLC patients (n=43). Multivariate Cox regression analysis of overall survival plotted according to abundance of pleural effusion exhausted CD8 T cell subsets dichotomized at the median. NSCLC, non-small cell lung cancer; Tex^stem, stem-like exhausted CD8 T cells; Tex^term, terminally exhausted CD8 T cells; PD1, programmed death 1; MFI, mean fluorescence intensity; TCF1, T cell factor 1; SD, standard deviation.

Next, as TCF1 is a key transcription factor for Tex^stem cells, we analyzed the TCF expression of Tex^stem and Tex^term cells in these samples to confirm that they are representative of the stem-like and terminally exhausted populations, respectively. As expected, Tex^stem cells were enriched in TCF1 expression compared to Tex^term in all patients (Figure S2).

We next sought to survey the Tex^stem and Tex^term cells across the entire cohort of 43 NSCLC patients. Consistent with the short term data, Tex^stem cells were more prevalent than Tex^term cells (mean 10.9% vs. 1.5%) (Figure 1C, Table 2). Again, in this larger cohort, TCF1 expression was significant higher in Tex^stem compared to Tex^term (Figure 1D).

Texstem but not Tex^term T cells correlate with improved overall survival (OS)

Having determined that CD8 Tex^stem and Tex^term cells were present and stable within PE of NSCLC patients, we next sought to determine if the prevalence of either population correlated with OS. In the NSCLC cohort, 41 of 43 patients had died by the date of census, all due to cancer progression. The median duration of follow-up was 55 months (range, 1–117 months). Univariate and multivariate analysis were performed using clinicopathological variables that can potentially influence clinical outcomes, including sex, age, smoking status, ECOG, comorbidities, number of lines of systemic therapy and ICPB treatment (Table 3). We were unable to adjust for histological subtype as there were only two patients with squamous carcinomas in our cohort. As well, we did not include PD-L1 expression levels in the multivariable analysis due to a significant number of missing data (only 22 patients had PD-L1 expression data). Multivariate analysis showed that patients with higher frequency (above median) of Tex^stem cells had significantly higher median OS than those with a lower frequency (below median) (median 9.9 vs. 3.4 months, HR 0.36, 95% CI: 0.16–0.79, P=0.01) (Figure 1E, Table 3). Among the non-squamous subgroup (n=41), we also adjusted for EGFR and KRAS mutation status and targeted therapy. An association between Tex^stem cells and OS was observed irrespective of these characteristics (Table S2, Figure S3). Higher Tex^term cells was associated with worse OS in univariate but not multivariate analyses. Higher Tex^stem to Tex^term cell ratios also predicted longer OS. Notably, PD1⁺ CD8 T cells as a broad population did not correlate with OS (Figure 1E, Table 3).

The prognostic significance of Tex^stem cells is validated in mesothelioma

To validate our findings from NSCLC, we examined Tex^stem and Tex^term cell frequencies in PE from a cohort of 49 mesothelioma patients (Table 4). The median age of the cohort was 70 and the majority (91.8%) were males. Nineteen (44.2%) and two (4.6%) patients were former and current smokers, respectively. Forty-one (83.6%) cases were mesothelioma of the epithelioid subtype and four (8.2%) cases were of the sarcomatoid subtype. Twenty-nine patients received at least one line of systemic therapy. In the first line setting, 21 patients received platinum doublet chemotherapy, five patients received chemoimmunotherapy and three patients received doublet ICPB with ipilimumab and nivolumab. Subsequent line therapies included chemotherapy (n=17), chemoimmunotherapy (n=1), doublet ICPB (n=3), single agent ICPB (n=4), FGFR inhibitor (n=2) and anti-CD80 antibody (n=1) (Table 4).

A representative flow cytometry plot for mesothelioma is presented in Figure 2A. As seen in NSCLC, the percentage of Tex^stem cell was higher than Tex^term cells in mesothelioma (mean 14.9% vs. 3.5%) (Figure 2B). The absolute percentages of Tex^stem and Tex^term cells was greater in mesothelioma compared to NSCLC, however the proportion of Tex^stem and Tex^term relative to total CD8 T cells were similar across both cancers (Table 2). Mesothelioma Tex^stem cells also had higher TCF1 MFI compared to Tex^term cells (Figure 2C).

Figure 2 Characterization and clinical significance of exhausted CD8 T cell subsets in malignant pleural effusions of mesothelioma patients. (A) Identification of exhausted CD8 T cell subsets in malignant pleural effusions of mesothelioma patients. Representative flow cytometry plot of Tex^stem and Tex^term CD8 T cell subsets according to PD1, CD39 and CD28 expression in a mesothelioma patient. Gated on live CD3⁺CD8⁺ pleural effusion T cells. (B) Percentages of Tex^stem and Tex^term cells within CD8 T cells from malignant pleural effusions of mesothelioma (n=49) patients. The median value is shown. Comparisons made between groups were performed using Mann-Whitney U test. (C) MFI of TCF1 by Tex^stem, and Tex^term cell subsets in mesothelioma. Data are presented as mean ± SD. Comparisons made between groups were performed using independent samples t-test. (D) Tex^stem, but not Tex^term or PD1⁺ cells correlate with improved survival in mesothelioma patients (n=49). Multivariate Cox regression analysis of overall survival plotted according to abundance of pleural effusion exhausted CD8 T cell subsets dichotomized at the median. Tex^stem, stem-like exhausted CD8 T cells; Tex^term, terminally exhausted CD8 T cells; PD1, programmed death 1; MFI, mean fluorescence intensity; TCF1, T cell factor 1; SD, standard deviation.

We next sought to determine if high Tex^stem cell proportion was also predictive of increased OS. From these 49 mesothelioma patients, 40 had died from cancer progression by the date of census and the median duration of follow-up was 51 months (6–122 months). In mesothelioma, as in NSCLC, increased Tex^stem cells was an independent predictor of improved OS irrespective of age, sex, histological subtype, smoking history, ECOG, number of lines of systemic therapy and ICPB treatment. Patients with a high abundance of Tex^stem cells had significantly longer OS compared to those with low abundance (median 32.1 vs. 19.8 months, HR 0.31, 95% CI: 0.10–0.96, P=0.04) (Figure 2D, Table 5). Higher Tex^stem to Tex^term cell ratio also predicted longer OS. Increased Tex^term cells was not associated with prognosis in univariate or multivariate analyses (Figure 2D, Table 5). As seen in NSCLC, PD1⁺ CD8 T cells as a broad population did not correlate with OS (Figure 2D, Table 5).

Correlation of exhausted CD8 T-cell subsets with clinical and pathological characteristics

The heterogeneous Tex cell landscape observed between patients indicates that there may be clinical or biological factors that influence the progression to terminal T-cell exhaustion. To explore the potential factors that may affect this pathway, we next asked whether the abundance of Tex cell subsets correlated with clinicopathological features.

In NSCLC, higher Tex^stem was observed in never smokers compared to former or current smokers (mean 20.2% vs. 11.9%, P=0.02) (Figure 3A). No difference in Tex^term was observed between the two groups. Smoking pack years data were available for 28 of the 37 current or former smokers, but no correlation was observed between the number of pack years and Tex^stem cells. Increased Tex^term cells were observed in EGFR wild type non-squamous carcinomas compared to EGFR mutant tumors (P=0.04) (Figure 3B). There was no difference in Tex^stem when stratified by EGFR mutation status. No associations were found between any of the Tex subsets and patient age, sex, or KRAS mutation status. In our cohort, there were only two patients with squamous cell carcinomas so we could not evaluate the correlation between Tex cell subsets with histological subtype. Furthermore, as tumor PD-L1 expression results were only available in 22 patients, we did not examine the correlation between PD-L1 expression and Tex subsets.

Figure 3 Correlation of exhausted CD8 T cell subsets with clinicopathological characteristics. (A) Comparison of frequencies of Tex^stem and Tex^term cells between never smokers (n=6) and ever smokers (n=37) in NSCLC patients. (B) Comparison of frequencies of Tex^stem and Tex^term cells between EGFR mutant (n=7) and EGFR wild type (n=32) non-squamous NSCLC patients. The median value is shown. Comparisons made between groups were performed using Mann-Whitney U test. Tex^stem, stem-like exhausted CD8 T cells; Tex^term, terminally exhausted CD8 T cells; NSCLC, non-small cell lung cancer; EGFR, epidermal growth factor receptor.

In mesothelioma, there were no associations between Tex cell subsets and patient age, sex, histological subtype. Smoking history was available for 43 patients. There was no association between smoking history and Tex cell subsets.

To investigate whether the degree of T-cell exhaustion correlated with tumor burden, we analysed pre-treatment serum mesothelin levels of 26 patients with epithelioid mesothelioma, as a surrogate marker for tumor burden (30). There was a statistically significant correlation between Tex^term cells and serum mesothelin concentration (Pearson’s r=0.525, P=0.006), but this result was mainly driven by a single patient with the highest proportion of Tex^term cells and mesothelin levels (data not shown). There was no correlation between mesothelin levels and Tex^stem cells.

No significant changes in Tex subset frequency in PEs during disease progression

In a smaller cohort of treatment-naïve patients we had access to samples over a 25-month period allowing us to perform an exploratory longitudinal analysis of T-cell exhaustion in the PE in the setting of cancer progression in the absence of any systemic therapy. Samples were collected at diagnosis and at a minimum of 1-month intervals, from eight patients with mesothelioma and two patients with NSCLC. Patient characteristics are described in Table S3. Two to six samples were available from each patient ranging from 1 to 22 months post diagnosis (Figure S4A). The median follow-up was 73.5 months (range, 31–110 months). At the time of data analysis, both NSCLC patients and six mesothelioma patients have died, with survival of 17 and 25 months for the two NSCLC patients and ranging from 18 to 102 months for those with mesothelioma.

Statistical power was limited in this small cohort, but a regression coefficient analysis showed that overall, there was no significant change in the frequencies of Tex^stem cells (Cohens d −0.49, P=0.16), Tex^term cells (Cohens d 0.18, P=0.58) and the Tex^stem:Tex^term cell ratio (Cohens d −0.31, P=0.35) over time (Figure S4B).

Tex^stem and Tex^term cells display distinct phenotypes and intrinsic heterogeneity

To gain a comprehensive understanding of the immunological features of malignant PE, we performed high dimensional mass cytometry (a.k.a., cytometry by time-of-flight; CyTOF) profiling using 30 cellular markers dedicated to T cells of PE samples. We analysed a total of 16 PE samples from eight patients (five mesothelioma and three lung adenocarcinoma), collected at two time points per patient ranging from 1 to 8 months apart. Consistent with previous reports (31,32), our mass cytometry profiling revealed that malignant PE were enriched in T cells; predominantly CD4 T cells (Figure S5A,S5B). The distributions of key immune cell subsets in NSCLC and mesothelioma are presented in Figure S5C. Since we observed conserved immune cell distribution and T cell phenotypes across timepoints, only data from the initial time point was further presented (Figure 4).

Figure 4 Mass cytometry based phenotypic profiling identifies heterogeneity of Tex^stem and Tex^term CD8 T cells in pleural effusions of NSCLC and mesothelioma patients. (A) UMAP projections of CD8 T cell derived from malignant pleural effusions of NSCLC patients (n=3) at the early timepoint. Normalized intensity of individual markers. Gated on DNA⁺cisplatin^–CD45⁺CD14^–CD16^–CD3⁺gdTCR^–. (B) Heatmap depicting normalized mean marker intensity measured by mass cytometry in each cluster of NSCLC patients. (C) Distribution of phenotypes in Tex^term (top) and Tex^stem (bottom) of NSCLC patients. Each bubble represents cells with specific phenotypes, with bubble size reflecting their frequency among total cells, and bubble color indicating distinct cluster types. (D) UMAP projections of CD8 T cell derived from malignant pleural effusions of mesothelioma patients (n=5) at the early timepoint. Normalized intensity of individual markers. Gated on DNA⁺cisplatin^–CD45⁺CD14^–CD16^–CD3⁺gdTCR^– of mesothelioma patients. (E) Heatmap depicting normalized mean marker intensity measured by mass cytometry in each cluster of mesothelioma patients. (F) Distribution of phenotypes in Tex^term (top) and Tex^stem cells (bottom) of mesothelioma patients. Each bubble represents cells with specific phenotypes, with bubble size reflecting their frequency among total cells, and bubble color indicating distinct cluster types. (G) Heatmap depicting normalized mean marker intensity measured by mass cytometry in Tex^term and Tex^stem cells. NSCLC, non-small cell lung cancer; Tex^stem, stem-like exhausted CD8 T cells; Tex^term, terminally exhausted CD8 T cells; UMAP, uniform manifold approximation and projection; SCM, memory stem cell; CM, central memory; EM, effector memory; EMRA, effector memory re-expressing CD45RA; MAIT, mucosal-associated invariant T.

We then examined the detailed profiles of CD8 T cell populations present in malignant PE from NSCLC patients. To accomplish this, we manually gated CD8 T cells and employed Uniform Manifold Approximation and Projection (UMAP) dimensionality reduction, followed by clustering with the Louvain graph-based clustering algorithm (see Methods). This method allowed us to identify and resolve various cell types, including mucosal-associated invariant T (MAIT, MR-1⁺CD161⁺Va7.2⁺), exhausted (PD1⁺CD39⁺), and resident memory-like cells (CD103⁺) (Figure 4A,4B and Figure S6A).

Next, we examined the cellular phenotypes of the different Tex states by manually gating on Tex^stem (PD1^midCD39^–CD28⁺) and Tex^term (PD1⁺CD39⁺) (Figure S6B). Tex^stem cells from NSCLC patients displayed a range of phenotypes, including: canonical Tex^stem (cluster 11, approximately 32.5%), central memory (CM)-like (cluster 4, approximately 23.8%), effector-memory (EM)-like (cluster 5, approximately 21.9%), MAIT-like (cluster 10, approximately 5.0%) and Va7.2⁺ Tex^stem (cluster 12, approximately 3.3%). In contrast, the majority of Tex^term cells clustered into a single group (cluster 13, approximately 76.8%) and exhibited greater expression of immune inhibitory molecules including TIGIT and ICOS. Notably, the Tex^term cell population, characterised by high levels of CD39, also co-expressed tissue resident markers CD103 and CD69 (33-35). Of note, a small fraction of Tex^stem and Tex^term cells were MAIT cells (cluster 10) (Figure 4B,4C and Figure S6C), indicating that both conventional T cells and MAIT cells can exhibit markers of exhaustion, as previously shown in colorectal cancer and in lung cancer tumor infiltrates (36,37).

A similar analysis of malignant PE samples obtained from mesothelioma patients showed comparable findings, reinforcing the consistency of our findings (Figure S7). Tex^stem cells were associated with CD57⁺ Tex^stem (cluster 15, approximately 27.6%), CD57^– Tex^stem (cluster 14, approximately 20.8%), EM-like (cluster 5, approximately 20.2%) and MAIT-like (cluster 11, approximately 3.8%). Meanwhile, Tex^term cells exhibited greater expression of activation/exhaustion markers (e.g., CD38, HLA-DR, TIGIT and ICOS) and tissue resident markers (e.g., CD69 and CD103). Specifically, these Tex^term cells were identified as CD57^– Tex^term (cluster 16, approximately 61.1%) and CD57⁺ Tex^term (cluster 17, approximately 47.9%) (Figure 4D-4F). These consistent patterns indicate distinct phenotypic characteristics of Tex^stem and Tex^term cells.

Interestingly, the phenotypic features of Tex cells varied between NSCLC and mesothelioma. Compared to their mesothelioma counterparts, NSCLC Tex^stem and Tex^term cells displayed a more stem-like phenotype with enrichment of CCR7 chemokine receptor and CD127 (IL-7 receptor) (38), as well as displayed lower expression of the immune inhibitory/senescence marker CD57 (Figure 4G). Longitudinal profiling across the two time points showed that these phenotypic differences persisted consistently over an extended period (Figure S8).

Single cell multi-omics reveals phenotypic and clonotypic heterogeneity of Tex^stem and Tex^term cells

To gain a more comprehensive understanding of phenotypic and clonotypic variation within Tex cells, we performed 10x Genomics Chromium single-cell multi-omics analysis on four patients (two mesothelioma and two NSCLC). By incorporating mRNA sequencing analysis, 50 oligo-tagged (CITE-seq) surface antibodies (39) and TCR sequences, this multimodal analysis facilitated the characterization of T-cell subsets based on gene expression, surface protein markers, and TCR diversity. We performed a weighted nearest neighbour analysis with UMAP to visualise the high-dimensional multi-omics (protein and gene expression) profiles in a lower-dimension embedding (Figure 5A,5B and Figure S9A-S9C) (29).

Figure 5 Single-cell analysis of Tex^term and Tex^stem CD8 T cells in pleural effusions of NSCLC and mesothelioma patients. (A) UMAP projection of single cell gene expression (scRNAseq) and surface protein expression measured with antibody derived tags (scADT). Each point is a single cell colored based on 22 phenotypes derived from Leiden clustering of normalized scRNAseq and scADTseq data across four samples (resolution =2.0). (B) Heatmap depicting normalized mean marker intensity measured scRNA (left) and scADT (right) in each cluster. (C) UMAP projection of Tex^term (violet) and Tex^stem (orange) cells onto total CD8 (grey). (D) Volcano plot of differential gene expression upregulated in Tex^term (purple) and Tex^stem (orange). Genes with 0.5-fold change and –log10(q.value) >1.5 are highlighted. (E) UMAP projection colored by clone size of each cell. (F) Effective number of clonotypes from Tex^stem and Tex^term cells. Wilcoxon test, **, P<0.01. (G) Morisita-Horn indices with non-Tex from Tex^stem and Tex^term cells. Wilcoxon test. (H) Venn diagram showing the numbers of shared and unique clonotypes among VDJdb, Tex^stem, and Tex^term cells. Tex^stem, stem-like exhausted CD8 T cells; Tex^term, terminally exhausted CD8 T cells; NSCLC, non-small cell lung cancer; UMAP, uniform manifold approximation and projection; scRNAseq, single-cell RNA sequencing; scADT, single-cell antibody-derived tag; SCM, memory stem cell; CM, central memory; EM, effector memory; EMRA, effector memory re-expressing CD45RA; MAIT, mucosal-associated invariant T; ex, exhausted; ns, not significant (P>0.05).

Expanding upon our findings from the CyTOF analysis, CD8 T cells infiltrating malignant PE were heterogeneous and Tex^stem and Tex^term cells exhibited differential expression of proteins and genes (Figure 5C and Figure S9D,S9E). Differential expression analysis of Tex^term cells in comparison to Tex^stem cells showed enrichment of genes and proteins related to immune inhibitory receptors (LAG3, ENTPD1, PDCD1, HAVCR2, TIGIT), and cytotoxicity (NKG7) but lower in pluripotent stemness (KLRG1, RORA, IL7R), indicating Tex^stem cells and Tex^term cells are transcriptionally distinct (Figure 5D).

Given that Tex^stem cells are thought to act as progenitors for Tex^term cells (40) and those cells are chronically exposed and proximal to the tumor site, we hypothesise that both Tex^stem cells and Tex^term cells are enriched for cognate tumor-reactive TCRs. To test this hypothesis, we first analysed diversity of TCR clonotypic repertoires of Tex^stem and Tex^term cells. In line with previous findings (23), Tex^stem cells exhibited more diverse TCR repertoires, as indicated by the clone size and effective number of clonotypes, whereas Tex^term cells showed comparatively less TCR diversity (Figure 5E,5F). To understand the developmental relatedness between Tex^stem and Tex^term cell states, we examined the extent of overlap in TCR repertoires between these cell populations using the Morisita-Horn index. Interestingly, though not reaching statistical significance, Tex^stem exhibited a higher degree of overlap with non-Tex cells compared to Tex^term (Figure 5G). There was minimal overlap of TCR clonotypes between Tex^stem and Tex^term cells, suggesting that only a small fraction of Tex cells transition between the Tex^stem and Tex^term phenotypes (Figure S9F).

To extend these findings, we investigated whether TCR sequences from Tex cells exhibited any overlap with TCRs of known cancer-unrelated specificities (e.g., Epstein-Barr virus-, cytomegalovirus-, or influenza virus-specific T cells) in the VDJ database (41). Out of the 153 clones identified from Tex^stem, 61 TCRs were found within the database. In contrast, out of the 209 clones from Tex^term, only 10 clones were detected in the database (Figure 5H). These results indicate that Tex^stem in the TME partially consist of cancer-unrelated antigen-specific bystander T cells, while this phenomenon is not observed to the same extent in the Tex^term cell population.

Discussion

In this study, we demonstrate that an increase in the proportion of Tex^stem cells in PE is associated with improved OS and may present a useful prognostic biomarker. Importantly, our findings were demonstrated in two distinct tumor types, supporting the importance of Tex^stem cells in anti-tumor immunity irrespective of cancer type. In addition, we used mass cytometry and single-cell multi-omics data to explore the phenotype of T cells within the PE of NSCLC and mesothelioma patients in finer detail.

CD8 TILs have been associated with clinical outcomes in several cancers (5,42,43). However, there are limited studies that address the functional heterogeneity of the Tex cell population. In this study, higher frequency of PE Tex^stem CD8 T cells were independently associated with a favourable prognosis in both NSCLC and mesothelioma. The Tex^stem cell population was enriched for TCF1 expression compared to Tex^term cell population, as well as compared to the non-naive PD1^midCD39^-CD28^- T cell population (data not shown). These results are consistent with previous reports of transcriptomic analysis of TCGA lung adenocarcinoma and melanoma cohorts, where increased CD8 TIL expression of TCF7 (encoding TCF1) in combination with PDCD1 (encoding PD1) was associated with improved clinical outcomes (21,44). PD1 expression on TILs has been associated with poor patient survival across a number of different cancer types (45-50). Notably, in our study there was no significant association between PD1⁺ CD8 T cells and OS, demonstrating that the prognostic relevance was specifically associated with the Tex^stem cell subset. Our results are in agreement with studies in other cancer types (14, 18, 19) that demonstrate that Tex^stem can be associated with improved outcomes. Tex^stem, with lower inhibitory receptor expressions, are less differentiated and retain self-renewal capacity and effector function. As a result, the observed improved prognosis associated with an increased frequency of Tex^stem cells is likely be attributed to their ability to generate more effective anti-cancer immune response. These results support the clinical significance of this cell subset and highlight their role as a crucial component of the anti-tumor immune response.

On the contrary, the frequency of Tex^term cells did not impact OS, highlighting Tex^stem and Tex^term as unique Tex cell populations with distinct prognostic relevance. Tex^term are known to lose their expansion capacity and are functionally less efficient (44). Therefore, Tex^term cells may not have prognostic implications because they are functionally impaired and continually deleted from the TME. An additional finding from our study was that in NSCLC, an increased proportion of Tex^term cells was observed in EGFR wild type adenocarcinoma compared to EGFR mutant tumors and an increased proportion of Tex^stem cells was observed in never smokers compared to current or former smokers. This suggests that lower levels of terminal exhaustion and the stem-like exhaustion state of CD8 T cells may be related to the lower tumor mutational burden associated with EGFR mutant and non-smoking related lung cancer (51,52). We did not have genomic sequencing data for our patient cohort and further studies are currently being undertaken to delineate this relationship.

Our longitudinal data demonstrate stability of the frequency of Tex subsets in PE over time, supporting the utility of PE as a sample site for biomarker studies. Our longer term longitudinal exploratory analysis showed no statistically significant difference in Tex frequencies over time but given the small sample size, no conclusions can be drawn from this analysis and further study in a larger population is required.

Within the individual subsets of Tex^stem and Tex^term there is evidence of considerable heterogeneity in phenotype; and this is seen across cancer types and in chronic infection models (53,54). Here in a subset of patients we were able to use multi-dimensional CyTOF and single cell sequencing to interogate the phenotype of cells within the PE in fine detail. We noted considerable heterogeneity within the Tex^stem and Tex^term populations and across cancer types. Tex^stem and Tex^term cells from patients with NSCLC had greater expression of CCR7 and CD127, and lower expression of CD57 compared to those from patients with mesothelioma. A low frequency of circulating CCR7⁺ CD8 T cells is a significant risk factor for tumor recurrence in patients with head and neck cancer (55). CD127, also known as the IL-7α chain, forms part of the IL-7 receptor complex. IL-7 signalling promotes human CD8 T cell generation and cytolytic reactivity (38). Our findings suggest that exhausted T cells in NSCLC patients may have improved functionality compared to those present within mesothelioma patients. These differences may contribute to, or be indicative of the level of immune reactivity in the TME and the responsiveness to immunotherapy of these two cancer types.

High expression of CD39 and CD103 have been suggested as markers for tumor-specific T cells (34,56) within tumors. Previous studies have implicated that those markers are useful in isolating tumor-specific cells in malignant PE as well (33,35). These results suggest that tumor antigen specific CD8 T cells have a Tex^term phenotype. Surprisingly, in spite of the likelihood that Tex^term cells are tumor specific, increased Tex^term cells were not associated with improved clinical outcomes, perhaps due to their hypo-functionality. Our results revealed that a significant proportion of Tex^stem cell population is composed of cancer-unrelated, virus-specific, bystander T cells. The role of bystander T cells in anti-tumor immunity is not yet well understood. However, evidence from viral infection models suggest that T cells lacking disease relevant specificities can also participate in the immune response, driven by proinflammatory cytokines in the immune environment (57-60). These T cells can adopt effector functions, for example through the production of interferon γ (IFNγ) and GZMB, without the need for antigen recognition (61). The abundance of bystander T cells in the TME may also be a proxy for the degree of immune reactivity and T cell recruitment. Lastly, it has been proposed that some bystander T cells also recognise tumor antigens through TCR cross reactivity (62-64), and hence an increased abundance of bystander T cells may lead to direct anti-tumor immunity. Our results however do not exclude the possibility that tumor-specific T cells are also present in the Tex^stem cell population. Our group and others have previously identified T cells directed against tumor neoantigens in PE by testing for IFNγ T-cell responses against bioinformatically predicted neoantigens, using methods such as IFNγ ELISpot assays (65,66) and neoantigen peptide-MHC tetramer staining (unpublished data). Further work is underway to delineate the exhaustion phenotype of these neoantigen-specific T cells.In advanced thoracic malignancies, patients often develop PE during the course of their disease (22,67). PE provides a valuable sample source for translational research because it is proximal to tumor cells and is relatively easy to access compared to tumor biopsies. In addition, some patients require routine drainage of PE which allow longitudinal analysis that could reveal dynamic changes without the need for serial biopsies. Our study provides a proof of concept that PE can be used for immune analysis and that the data generate can have clinical relevance. In addition, PE is an unique immune microenvironment and its immunological characteristics do not necessarily mirror those of tumor tissue or peripheral blood, allowing greater insight into the complex landscape of the anti-tumor immune response. For example, the expression of inhibitory molecules such as PD1, TIM3 and LAG3 are greater on PE T cells compared to peripheral blood, but lower compared to TILs (31,68-74). These data suggest that PE should not at this stage be relied upon as a surrogate for tumor or peripheral blood T-cell analysis but rather as an adjunct for studies into anti-tumor immunity.

Our study has several limitations. Our NSCLC cohort comprised almost entirely of non-squamous cell carcinomas so the results cannot be generalised to the squamous cell carcinoma subtype, in which precursor exhausted T cells have previously been reported to have no effect on prognosis (21). In addition, the retrospective nature of our study predisposes it to potential biases. However, we validated our findings in a separate patient cohort, strengthening the validity of our results. Our multi-dimensional studies, in particular, the single cell sequencing studies were performed on a limited subset of patients. However, these studies are hypothesis generating and allow more focused studies in the future to determine, for example, which subset of Tex^stem cells are most protective in NSCLC and mesothelioma.

Conclusions

Overall, in this study, we demonstrated that increased abundance of Tex^stem CD8 T cells is associated with significantly improved prognosis in NSCLC and mesothelioma. We also further characterised the T-cell exhaustion landscape in malignant PE of NSCLC and mesothelioma patients using mass cytometry and single cell RNA sequencing. Together, these findings suggest that Tex^stem cells are a key population for cancer control and regression.

Acknowledgments

We thank all other members of the Newell lab for their feedback and support for this project. We acknowledge the support of patients and the National Centre for Asbestos Related Diseases Biobank for providing the pleural effusion samples.

Funding: This work was supported by the NHMRC of Australia (to J.C., B.W.R. and A.J.R.); Insurance Commission of Western Australia (to J.C. and B.W.R.); The US Department of Defense (to J.C., B.W.R., A.J.R. and E.W.N.); Western Australian Department of Health (to J.C. and B.W.R.); iCARE Foundation (to J.C. and B.W.R.); Sir Charles Gairdner Research Advisory Committee (to J.C. and B.W.R.); the National Institutes of Health (NIH) grants (Nos. R01CA264646 and R01AI176563 to E.W.N.); IIRC post-doctoral fellowship (No. 224990-99 to H.R.); a post-doctoral training fellowship from the National Research Foundation of Korea (NRF-2020R1A6A3A03037852 to H.R.); the Future Health Research and Innovation Fund scheme through the Biobank Interim Support Program 2021 and the Cancer Council of Western Australia (to J.C. and B.W.R.). The funding sources had no role in the preparation of the manuscript or the decision to submit the article for publication.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-284/rc

Data Sharing Statement: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-284/dss

Peer Review File: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-284/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-284/coif). H.R. reports grants from IIRC post-doctoral fellowship (No. 224990-99, to H.R.) and post-doctoral training fellowship from the National Research Foundation of Korea (NRF-2020R1A6A3A03037852, to H.R.). T.F. reports serving as the board secretary of Mind the Change Inc. Y.C.G.L. is the current NHMRC Leadership Fellow and a recipient of the Investigator Grant (Leadership 2) (since July 2023), and the recipient of the Next Generation Clinical Research Practitioner Fellowship (from 2018 to June 2023). Rocket Med (UK) has provided free pleural fluid drainage kits for patients enrolled in randomized trials that Y.C.G.L. led. B.W.R. reports funding from the NHMRC of Australia, Insurance Commission of Western Australia, The US Department of Defense, Western Australian Department of Health, iCARE Foundation, Sir Charles Gairdner Research Advisory Committee, the Future Health Research and Innovation Fund scheme through the Biobank Interim Support Program 2021 and the Cancer Council of Western Australia. J.C. reports funding from the Australian National Health and Medical Research Council; The US Department of Defense; Insurance Commission of Western Australia; Western Australian Department of Health; iCARE Foundation; Sir Charles Gairdner Research Advisory Committee; Future Health Research and Innovation Fund scheme through the Biobank Interim Support Program 2021; Cancer Council of Western Australia. E.W.N. reports funding from the National Institutes of Health (NIH, Nos. R01CA264646 and R01AI176563 to E.W.N.), US Department of Defense, and Fred Hutchinson Cancer Center. And a cofounder, advisor and shareholder of ImmunoScape; an advisor and shareholder of Neogene Therapeutics; an advisor for NanoString Technologies and InduPro, and a shareholder in Trojan Bio. A.J.R. reports funding from The Australian National Health and Medical Research Council and The US Department of Defense. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). All participants provided written informed consent. This study was approved by the Human Research Ethics Committees of Sir Charles Gairdner Osborne Park Health Care Group (RGS0000001516), the University of Western Australia and the Fred Hutchinson Cancer Centre Human Subjects Committee (IRB file/approval number 10422).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
