Towards the development of next-generation lung cancer immunotherapy

Introduction

Therapies for lung cancer have undergone dramatic changes, with immune checkpoint inhibitors (ICIs) playing key roles. The antitumor immune response that acts locally in the area of the tumor is primed in the regional lymph nodes. However, it is also recognized that there are mechanisms that can maintain the activity of antitumor cells in the locality of the cancer. Examination of the immune tumor microenvironment (TME) has critical prognostic value and can supplement histopathological and molecular biomarkers for the evaluation of patient responses to treatment. The TME refers to the environment surrounding tumor cells; it is dynamic and is constantly subject to various influences from other normal cells and tissues. Humans are inherently equipped with tumor immunity to eliminate tumors; however, in the TME, tumor immunity can be suppressed by various mechanisms. In addition to tumor cells themselves suppressing tumor immunity, the important role of non-tumor cells in the TME is gradually becoming clear, and the effectiveness of ICIs is greatly influenced by the TME. Furthermore, immune responses are multifaceted, with innate and adaptive immunity. Adaptive immunity comprises cellular and humoral immunity. It was reported that CD8+ T cells and M1 macrophages are correlated with a favorable prognosis (1). High levels of CD3+ T cell infiltration in ovarian cancer correlated with favorable progression-free survival (PFS) and overall survival outcomes (2). In colorectal cancer, cases in which there were many TH1 differentiated memory T cells [positive for interferon (IFN) γ expression] and cytotoxic CD8+ T cells (positive for granzyme and granulysin expression) infiltrating into the tumor at the time of diagnosis had a good prognosis (3). Major histocompatibility complex (MHC) I expression on cancer cells was positively correlated with PFS and overall survival in breast cancer cases (4,5). Duhen et al. reported that CD103+ CD39+ CD8 T cells kill cancer cells in an MHC class I-restricted manner in head and neck cancer, and that a high proportion of this population of tumor-infiltrating lymphocytes (TILs) was a good prognostic factor (6). It was reported that in most cancers, including non-small cell lung cancer (NSCLC), pancreatic cancer, breast cancer, renal cell carcinoma, hepatocellular carcinoma, and melanoma, cases with a high infiltration of forkhead box protein P3 (FOXP3)⁺ CD4⁺ CD25⁺ lymphocytes in the tumor have a poor prognosis (1). Most macrophages present in tumors are M2 type, which promotes the progression of cancer cells. Infiltration of M2 type macrophages into tumors was reported to be a poor prognostic factor in breast cancer, bladder cancer, ovarian cancer, gastric cancer, prostate cancer, renal cell carcinoma, and melanoma (1). In patients with NSCLC, cancer growth is associated with increased expression of T cell exhaustion markers on tumor-infiltrating CD8+ T cells, many of which are immune checkpoint proteins that control T cell proliferation [e.g., programmed cell death-1 (PD-1), T cell immunoglobulin domain and mucin domain protein 3 (TIM-3), cytotoxic T-lymphocyte associated antigen-4 (CTLA-4), lymphocyte-activation gene 3 (LAG-3), and B and T lymphocyte attenuator (BTLA)] (7). LAG-3 (CD223) is an immune inhibitory molecule expressed on natural killer (NK) cells, activated T cells, and B cells, and exerts its inhibitory effect by binding to MHC class II. Similar to Treg cells, myeloid-derived suppressor cells (MDSCs) express CD39 and CD73 ectonucleotidases and convert adenosine triphosphate (ATP) to adenosine, which is considered an important mediator of immune suppression in the TME (8). MDSCs expressing CD39 and CD73 are present in the TME of NSCLC patients and are positively correlated with cancer progression, but these cells are significantly reduced by chemotherapy (9). Vascular endothelial growth factor (VEGF) proteins can inhibit the maturation, differentiation, and antigen presentation of professional antigen-presenting cells (APCs), dendritic cells (DCs), NK, and T cells, and enhance the suppressive effects of regulatory T cells (Tregs), tumor-associated macrophages (TAMs), and MDSCs (10) (Table 1).

In current cancer treatments, ICIs have demonstrated excellent efficacy; however, in some cases, they are ineffective. CITYSCAPE was the first phase II randomized controlled trial to evaluate the efficacy and safety of anti-TIGIT and anti-PD-1/PD-L1 combination therapy. The combination arm showed a significant improvement in overall survival in patients with PD-L1 TPS ≥50% [hazard ratio (HR) 0.23, 95% confidence interval (CI): 0.10–0.53], but not in the overall population (HR 0.69, 95% CI: 0.44–1.07) (11). On the other hand, various adverse events associated with ICIs are also known. Atcheley et al. analyzed ICI-associated pneumonitis in 315 patients with lung cancer treated with nivolumab (76.5%) or pembrolizumab (22%). The incidence of ICI-associated pneumonitis was 9.5%. The presence of fibrosis on pretreatment chest CT scan [adjusted OR (aOR), 6.61; 95% CI: 2.48–17.7], degree of obstructive pulmonary disease (aOR, 2.79; 95% CI: 1.07–7.29), and treatment with pembrolizumab (aOR, 2.57; 95% CI: 1.08–6.11) were independent factors for the development of ICI-associated pneumonitis (12). There are also populations in which ICIs are less effective. Ricciuti et al. performed comprehensive genomic profiling and immunophenotypic characterization of samples from 82 NSCLC patients and pre- and post-ICI biopsy samples and compared the results with control patients who received non-ICI interventional therapy. In 27.8% of the ICI-treated group, putative resistance mutations were detected, including acquired loss-of-function mutations in STK11, b-2 microglobulin (B2M), APC, MTOR, KEAP1, and JAK1/2. These acquired changes were not observed in the control group (13). To achieve higher therapeutic efficacy, the development of next-generation lung cancer immunotherapies is essential. However, the effector cells involved in cancer immune responses are highly diverse and many cells and mediator molecules promote or suppress effector cells (Figure 1, Table 2), which complicates our understanding. In this review, we considered each factor thought to be related to next-generation lung cancer immunotherapy.

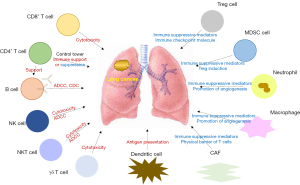

Figure 1 Immune cells involved in antitumor immunity. There are various immune cells involved in anti-tumor immunity. There are interactions, and the functions of individual immune cells can vary, making understanding difficult. Nevertheless, it is necessary to develop next-generation cancer immunotherapy by understanding the basic characteristics of each immune cell. ADCC, antibody dependent cellular cytotoxicity; CDC, complement dependent cytotoxicity; MDSC, myeloid-derived suppressor cells; CAF, cancer-associated fibroblast.

Tertiary lymphoid structures (TLS)

A cycle exists in which activated T cells gather in the interstitium, particularly in the TLS, where immune cells interact to maintain their effector functions. TLS, which represent organized secondary lymphoid organ-like cellular aggregates occur locally (14) and may regulate antitumor immune responses through a mechanism distinct from that of the normal cancer immune cycle. At tumor sites, TLS enable the localized presentation of cancer antigens by DCs and the production of effector T cells and antibody-producing plasma cells, which is associated with a favorable prognosis in a variety of cancer types (15). Within tumors, B cells were not found alone but tended to co-localize with CD4 and CD8 TILs, and cases in which B cells and CD8 T cells were found simultaneously within tumors tended to have a better prognosis than cases in which only CD8 T cells were found (16). TLS are ectopic lymphoid organs that develops in nonlymphoid tissues at sites of chronic inflammation, including tumors. A T-cell zone containing mature DCs is formed around CD20⁺ B cells, plasma cells, follicular helper T cells, and follicular DCs.

In lung cancer, colorectal cancer, pancreatic cancer, oral squamous cell carcinoma, and invasive breast cancer, the presence of TLS have been associated with increased overall and recurrence-free survival (14).

Tumor-infiltrating B cells within the TLS are associated with the therapeutic effects of ICI (17-19).

TILs

TILs are lymphocytes that infiltrate tumors and include tumor-reactive and antigen-specific lymphocytes. A treatment method in which tumor-reactive T cells in TILs were expanded and infused was attempted. It has been suggested that TILs also contain many cell groups that negatively regulate antitumor immune responses, including regulatory T cells. In addition to lymphocytes, regulatory cell groups in the MDSCs, TAMs, cancer-associated fibroblasts (CAFs), and mesenchymal stem cells (MSCs). Depending on the degree of T-cell infiltration, a tumor can be classified into three types: immune desert, immune-excluded, and inflamed. In the immune desert, immune cells in the tumor are clearly depleted, which may be related to immune cell repulsion or migration (possibly due to a lack of attractive chemokines, hypoxia, and lack of nutrients). In immune exclusion, the presence of inhibitory stroma and extracellular matrix (ECM) may prevent T cells from effectively migrating and coming into direct contact with cancer cells, thereby allowing cancer cells to survive. Peritumoral or intratumoral inflammatory cells that promote immune responses may activate TILs and increase their function and proliferation (20).

In TILS, PD-1⁺ CD8⁺ T cells are associated with a good prognosis, while PD-1⁺ Tregs are associated with a poor prognosis, and the balance of the ratio of PD-1 expression between them could be a biomarker (21).

Tumor mutation burden (TMB)

The greater the TMB, the more cancer-specific CD8+ T cells will be present and infiltrate the tumor, which is thought to result in a hot tumor. When cancer cells are exposed to IFN-γ secreted by CD8⁺ T cells that have infiltrated into the tumor, they increase the expression of programmed cell death-ligand 1 (PD-L1), thereby suppressing the antitumor effect of CD8+ T cells via the inhibitory receptor PD-1 expressed on activated CD8⁺ T cells. ICIs are thought to be effective in treating such hot tumors. IFN-γ is a multifunctional cytokine with antiviral, antitumor, and immunomodulatory functions, and plays an important role in controlling both innate and adaptive immunity (22). IFN-γ promotes immune responses and induces the elimination of pathogens. It also prevents overactivation of the immune system and tissue damage, although the regulatory mechanisms remain unclear (23,24). In the tumor TME, IFN-γ consistently controls both pro-tumor and anti-tumor immunity. IFN-γ acts as a cytotoxic cytokine together with granzyme B and perforin to induce apoptosis of tumor cells (25,26), while it promotes the synthesis of ICIs and indoleamine-2,3-dioxygenase (IDO), inducing immunosuppression (27-29).

In some cancers, reduced mismatch repair (MMR) has been observed. In sporadic MMR-deficient (dMMR) solid tumors, the cause is often acquired hypermethylation of the promoter region of the MLH1 gene or reduced expression owing to mutations in the MMR genes (30). The occurrence of a congenital pathogenic variant of the MLH1, MSH2, MSH6, or PMS2 genes, or a deletion of the epithelial cell adhesion molecule (EPCAM) gene (31-33) adjacent to the upstream region of the MSH2 gene in one allele, it is called Lynch syndrome, and dMMR tumors are known as Lynch-associated tumors.

CD8⁺ T cells

CD8⁺ T cells recognize antigen peptides presented on MHC class I by their specific T cell receptor (TCR) and exert their effector functions by releasing perforin, granzymes, etc. However, CD8⁺ T cells become exhausted in cancer and chronic infections, and their cytotoxic activity and proliferative ability decrease. In some cases, CD8⁺ T cells infiltrate the tumor, whereas in others, there is little infiltration. If tumor-specific CD8⁺ T cells are present, they become cytotoxic T lymphocytes (CTLs), infiltrate the tumor, and damage cancer cells. This may make immunotherapy more effective and improve prognosis. It has been reported that CD103⁺ CD8⁺ T cells infiltrating the tumor can be used as biomarkers for ICI effectiveness (34). CD103 is a ligand for the adhesion molecule E-cadherin. E-cadherin is expressed by epithelial cells, forming part of the adherent junctions between epithelial cells. When T cells infiltrate regions with epithelial cells, including cancer cells, they begin to express CD103 (6). Therefore, it has been reported that CD103⁺ T cells have previously encountered epithelial cells, including cancer cells, and are almost identical to tumor-specific T cells.

Using resected specimens from patients with lung cancer, CD103⁺ lymphocytes were confirmed by immunostaining in the local tumor area and associated lymph nodes. It has been reported that prognosis after lung cancer resection is better when there was a high level of CD103⁺ lymphocyte infiltration.

We analyzed the immunological molecular expression in local and regional lymph node microenvironments using resection sections from 50 cases of lung squamous cell carcinoma. The expression of MHC class I and PD-L1 molecules in the tumor did not affect the prognosis; however, CD103⁺ lymphocyte infiltration was a good prognostic factor (35). Furthermore, an analysis of 21 cases of NSCLC suggested that an increase in CD103⁺ CD39⁺ CD8⁺ T cells in the peripheral blood after ICI administration was a favorable prognostic factor, and that an increase in CD103⁺ CD39⁺ CD8⁺ T cells may enhance the cancer immune response (36). PD-1⁺ and CD8⁺ T cells in TILs are associated with a good prognosis, whereas PD-1⁺ Tregs in TILs are associated with a poor prognosis, and the balance of their PD-1 expression ratios can serve as a biomarker (21). In addition, we induced mutant p53-specific CTL clones from lymphocytes of the regional lymph nodes of patients with lung cancer, and demonstrated by TCR analysis [clonotypic polymerase chain reaction (PCR) method] that these CTL clones were present in the tumor locale and were involved in the cancer immune response (37). We also demonstrated that isolating tumor-specific TCR and transferring genes into γδ T cells, in a severe combined immunodeficiency (SCID) mouse model implanted with a human lung cancer cell line, resulted in tumor regression (38). As reviewed in another section, TCR-transduced cell therapy has been applied clinically and is attracting attention as next-generation immunotherapy.

CD4⁺ T cells

CD4⁺ T cells recognize antigen peptides presented on MHC class II molecules via their specific TCRs and are activated. They function as effector cells and participate in B-cell differentiation and proliferation. Kagamu et al. reported that patients whose peripheral blood CD62L^low CD4⁺ T-cell populations decreased after ICI administration had a weakened therapeutic response, whereas those who survived for a long time maintained a high percentage of CD62L^low CD4⁺ T-cells (39). Monitoring the immune status of CD4+ T-cells in the peripheral blood of patients receiving ICIs may predict treatment efficacy.

CD4⁺ T helper (Th) lymphocytes act as key regulators of inflammation specific to the encountered threat, with a large (and expanding) list of Th subsets defined to date, including Th1, Th2, Th17, Th9, and Th22. Th1 responses are characterized by the production of IFN-γ, tumor necrosis factor (TNF)-α, and interleukin (IL)-2 by T cells and are thought to be the essential subset for tumor rejection. IFN-γ generated from Th1 responses may synergize with IL-17 produced by Th17 cells to promote the secretion of the chemokines CXCL9 and CXCL10 that can recruit CTLs to the TME to target tumor cells (40).

In addition to a chronic inflammatory TME, prolonged exposure to tumor antigens induces Th1 and other T cells that lack the typical polyfunctional phenotype (i.e., the ability to secrete large amounts of several cytokines) to express inhibitory receptors, such as PD-L1, LAG-3, and TIM-3 (41). The antitumor efficiency of exhausted T cells is severely limited. Interestingly, a positive correlation was found between the number of CD8⁺ TILs and a favorable clinical prognosis (41,42).

B cells

B cells play a central role in humoral immunity. They express the membrane-type globulin BCR on their cell surface, take up antigens into the cell, and present them to CD4⁺ T cells. Through the interactions between B and T cells, B cells differentiate into plasma cells and produce antibodies.

As the TLS mature, lymphoid follicles are often observed and are thought to contribute to the maintenance of the effector function of immune cells by interacting with T cells and B cells. It is also known that cases in which tumor-infiltrating B lymphocytes (TIBs), as well as CD8⁺ T cells are present in the TLS, the tumor tend to have a better prognosis than cases in which only CD8⁺ T cells are present (43). TIBs directly support antitumor immunity. Microdissection of melanoma TLS revealed clonal proliferation, isotype switching, and somatic mutations in BCR-rare cells, suggesting the induction of antigen-specific antibody responses (44). TIBs may also be involved in the maintenance of TLS by producing CXCL13 and lymphotoxin (45). It was reported that a network of CXCL13⁺ stromal cells within primary follicles promotes B cell migration and follicle formation (46). The CXCL13-producing CD8-LAYN subset appears primarily in tumor tissues and may promote the recruitment and organization of CD20⁺ B cells within TLS (47). TLSs are associated with increased overall survival and PFS in patients with lung cancer, colon cancer, pancreatic cancer, oral squamous cell carcinoma, and invasive breast cancer (14). TIBs in TLS are reportedly related to the therapeutic effects of ICIs (17-19). Activated T cells gather in the interstitium; in particular, in the TLS, immune cells interact with each other, creating a cycle that maintains the effector function of immune cells.

Regulatory T cells

Treg cells suppress immune responses, including the excessive immune responses that cause autoimmune diseases, inflammatory diseases, and allergies. Conversely, when Treg cells work excessively, they suppress immune responses against pathogens such as cancer cells and promote cancer growth.

In 2003, Sakaguchi et al. reported that the transcription Foxp3, identified as the causative gene of the human autoimmune disease immunodysregulation polyendocrinopathy enteropathy X-linked (IPEX) syndrome, is selectively expressed in Treg cells and acts as a “master transcription factor” that controls their development, differentiation, and immunosuppressive functions (48). Since this discovery, extensive research on the mechanisms of Treg cell differentiation and function has been conducted, revealing that Foxp3 forms complexes with over 300 other transcription factors in Treg cells, binds to thousands of locations in the genome, and controls gene expression in Treg cells. Tregs maintain systemic immune homeostasis by regulating peripheral tolerance and attenuating autoimmune diseases (49) via various immunosuppressive mechanisms (50). Treg depletion experiments in mice found that this population potently suppresses antitumor effector T cell responses and blocks tumor elimination by endogenous tumor-specific effector T cells (51,52). Wing et al. reported that CTLA-4 on Tregs reduced the expression of CD80/86, a costimulatory molecule on DCs, thereby suppressing T-cell activation (53). Anti-CTLA-4 antibodies suppress the function of CTLA-4 and can, therefore, control Treg function. Infiltrating Tregs can be classified into two types based on their biological properties: natural regulatory T cells (nTregs) and inducible regulatory T cells (iTregs). nTregs naturally occur in the thymus and their main functions are to maintain normal immune tolerance and control inflammatory responses, and their suppressive effect is achieved through cell-cell contact. iTregs originate from peripheral naive T cells induced by tumor antigens, cytokines such as TGF-β, and other TME signals (54). Cancer stimulates newly generated iTreg cells and recruits nTreg cells to tumor sites, providing a favorable environment for the induction and maintenance of Treg cell characteristics. FOXP3 is ubiquitously expressed in both nTregs and iTregs (55-57). Th17 cells are also a source of tumor-induced FOXP3⁺ T cells. Tumor-induced Th17 cells gradually differentiate into inhibitory IL-17A⁺FOXP3⁺ and ex Th17FOXP3⁺ Tregs during tumorigenesis (58).

The TME is a nutrient-poor, lactate-rich, hypoxic environment that supports the bioenergetic needs of cancer cells that depend on aerobic glycolysis, fatty acid synthesis, and glutaminolysis (59). FOXP3 expression reprograms Treg metabolism to function in a low-glucose, high-lactate environment, making Treg cells more suitable for the TME (60).

NK cells

NK cells kill cancer cells without sensitization. NK cells eliminate cancer cells through effector functions mediated by cytotoxic granule contents such as perforin and granzymes, death ligands such as Fas-ligand and TNF-related apoptosis-inducing ligand (TRAIL), and cytokine production such as IFN and TNF-α (61). MHC class I chain-related protein A and B (MICA/B) are ligands that activate NK cells through the activating receptor natural killer group 2 member D (NKG2D) (62-65), and downregulation of MICA/B expression induces immune evasion (66,67). MHC class I molecules act on inhibitory receptors of NK cells, such as killer cell immunoglobulin-like receptors (KIR), and suppress the effector functions of NK cells (68). Currently, attempts are being made to apply chimeric antigen receptor-T (CAR-T) cells and TCR-transduced T cells in immunotherapy by introducing CAR genes or T-cell receptors into NK cells (69).

Natural killer T (NKT) cells

NKT cells have an invariant TCR, Vα14Jα18 in mice and Vα24Jα18 in humans. The invariant TCR recognizes glycolipids such as α-galactosylceramide (α-GalCer) presented on the MHC class I-like molecule CD1d as a ligand (70). NKT cells are activated by stimulation with α-GalCer, and express cytokines such as IFN-γ and TNF, as well as cytotoxic factors such as perforin, granzymes, FAS ligand, and TRAIL, which can directly damage cancer cells. NKT cells are also activated by DCs (71), and it is known that activated NKT cells subsequently leads to DC maturation and activation, thereby inducing effective adaptive immunity (72,73).

γδ T cells

γδ T cells express various receptors (74). 4-Hydroxy-3-dimethyl-allyl-pyrophosphate produced by bacteria, exogenous antigens derived from viruses, and endogenous phosphate antigens isopentenylpyrophosphate and triphosphoric acid 1-adenosin-5-yl ester 3-(3-methylbut-3-enyl) ester are recognized by γδ TCRs. MICA/B, which is expressed on the cell surface by stress, is recognized by NKG2D receptors. γδ T cell therapy has been administered to patients with treatment-resistant lung cancer, and 6 of 14 patients showed stable disease using RECIST, with a median PFS of 126 days and a median survival time of 586 days. IFN-γ was detected in the blood of seven patients during treatment, and four of these showed stable disease. Although no statistically significant difference was detected, it is thought that an increase in IFN-γ in the blood may affect prognosis (75,76).

It was also reported that dysregulation of the local microbiota stimulated tissue-resident γδ T cells to produce IL-17 and other proinflammatory mediators, promoting neutrophil proliferation and tumor cell growth. IL-17 first gained prominence as a cytokine that drives autoimmune and inflammatory diseases. New studies have revealed that IL-17 plays a key role in maintaining mucosal immunity and barrier integrity (77,78). These two fundamental physiological functions may not only establish host defense but also promote tumorigenesis and cancer progression in pathological situations. These pathophysiological functions rely on IL-17’s ability to induce inflammatory mediators, its mitogenic effects in tissue progenitor cells, and its ability to reprogram cellular metabolism (79). This may further enhance inflammation and microbiota dysbiosis, establishing a vicious cycle that exacerbates tumor growth (80).

TAMs

Macrophages release inflammatory mediators and secrete angiogenic factors. In malignant tumors, macrophages are divided into two categories: M1 macrophages that are involved in the Th1 cell response to pathogens and promote antitumor immunity, and M2 macrophages that are involved in the Th2 cell response and suppress antitumor immunity (81,82). TAMs are primarily composed of M2 macrophages that transform the TME into an immunosuppressive and tumor-progressing state, leading to a poor prognosis (82).

Microparticles released from irradiated tumor cells (RT-MPs) induce a wide range of antitumor effects and immunogenic cell death primarily via iron-dependent pathways. RT-MPs induce DNA double-strand breaks in tumor cells and significantly upregulate MHC-I expression on the membranes of non-irradiated cells, enhancing the recognition and killing of these cells by T cells (83). It was reported that RT-MPs can convert M2-TAMs in the pleural effusion microenvironment into M1-TAMs via the JAK-STAT and MAPK pathways (84).

DCs

When foreign substances enter the body, DCs phagocytose, process, and present fragmented antigen peptides to the MHC. Naïve T cells recognize and are activated by antigen peptides. DCs are essential for initiating immune responses. Tumors DCs infiltrating the TLS induce a Th1-type immune shift and improve lung cancer prognosis (85). Tissue-resident DCs can be divided into two major subsets based on transcription products and function. CD1c⁺ DCs are thought to be generated from monocytes during the invasion of tumor sites, whereas CD141⁺ DCs appear to be generated from DC-restricted precursors (86,87). The expression of lymphotoxin beta transcripts by CD141⁺ DC subsets in lung tumor tissues may reflect the contribution of CD141⁺ DCs to TLS formation, possibly due to HEV-mediated lymphocyte recruitment (88). The expansion of intratumoral CD141⁺ DCs may be an important strategy for inducing potent antitumor immunity. In a multicenter, single-arm, phase I/II study, a combination therapy consisting of anti-PD-L1 blockade and Wilms’ tumor antigen 1-DC vaccination was administered to patients with epithelioid malignant pleural mesothelioma (89). It was also reported that the use of a DC vaccine as postoperative adjuvant therapy in patients with pancreatic cancer resulted in good recurrence-free survival rates (90).

MDSCs

MDSCs, a heterogeneous group of immature myeloid cells, have immunosuppressive properties that increase in the blood and lymphatic tissues of patients with both cancer and infectious diseases (91). MDSCs are classified into polymorphonuclear MDSCs (CD11b⁺CD14⁻CD15⁺ or CD11b⁺CD14⁻CD66b⁺), which resemble neutrophils, and monocyte MDSCs (CD11b⁺CD14⁺CD15HLA-DR^low/−), which resemble monocytes. In patients with cancer, MDSCs suppress the anticancer immune reactions of CD4⁺ T cells, CD8⁺ T cells, and NK cells, inducing tumor progression. Strategies targeting MDSCs in cancer immunotherapy include promotion of MDSC differentiation (92), inhibition of their suppressive function (93,94), and elimination of MDSCs (95). Pan et al. reported that MDSCs induce Tregs via CD40-CD40L (96). The blockade of CD40-CD40L may suppress the functions of MDSCs and Tregs and may have therapeutic effects.

Neutrophils

Neutrophils can also be recruited and infiltrate the TME as tumor-associated neutrophils (TANs) (97,98). TANs may promote tumor development by generating reactive oxygen species (99), releasing neutrophil elastase to accelerate tumor growth (100), secreting matrix metalloproteinase-9 to induce angiogenesis (101), and forming neutrophil extracellular traps to promote tumor metastasis (102). Neutrophil abundance has prognostic significance in NSCLC. Patients with a high neutrophil-to-lymphocyte ratio had reduced PFS and overall survival (103,104). Patients with early stage NSCLC and increased CD66b-positive neutrophil infiltration were more likely to experience recurrence after surgery (105). Approaches that inhibit cytokines and chemokines that promote neutrophil infiltration, or mediators involved in neutrophil function, may be necessary.

CAFs

As central components of the TME in primary and metastatic tumors, CAFs profoundly influence the behavior of cancer cells and are involved in cancer progression through extensive interactions with cancer cells and other stromal cells. CAFs exert immunosuppressive effects by acting as a physical barrier to T cells and releasing immunosuppressive chemical mediators. CAFs secrete matrix metalloproteinases (MMPs), including MMP2, MMP3, and MMP9, or activate YES-associated proteins to promote ECM degradation and remodeling, epithelial-mesenchymal transition, and cancer stem-cell stemness (106-110). In the TME, the hypoxic niche communicates bidirectionally with the mechanical microenvironment mediated by CAFs. Cords et al. found that CAFs are a heterogeneous group with both poor and good prognostic phenotypes. Spatially resolved single-cell imaging mass cytometry (IMC) of CAFs was analyzed in a cohort of 1,070 patients with NSCLC. They identified four prognostic patient groups based on 11 CAF phenotypes with different spatial distributions and found CAFs to be independent prognostic factors. The presence of tumor-like CAFs was an independent poor prognostic factor, whereas inflammatory CAFs and IFN-response CAFs were favorable prognostic factors. High density of matrix CAFs correlated with low immune infiltration and was a poor prognostic factor. CAF phenotypic and spatial features associated with patient outcome in NSCLC were identified. Therefore, it may be necessary to develop treatments that consider the tailored phenotype (111).

Chimeric antigen receptor-T cells

CAR-T and TCR-transduced effector cells are genetically engineered synthetic biological approaches that target tumor-specific antigens and exert remarkable therapeutic effects (112,113). The components of CAR-T cells have been continuously improved and consist of a single-chain antibody (single-chain antibody variable fragment, scFV), a flexible connecting chain (hinge), a transmembrane domain and the signaling domains of the costimulatory molecule CD28, 4-1BB or OX-40 and stimulatory molecule CD3ζ and FcRγchain (Figure 2). CAR-T cell immunotherapy has demonstrated remission rates of 80–100% in hematological malignancies, with CD19-targeted CAR-T cells approved for the treatment of blood cancers. The recent success of CAR-T therapy has transformed the cancer treatment landscape and spurred research efforts to apply these therapeutic effects to solid tumors, such as lung cancer (114). Novel approaches are currently being investigated to test the applicability of CAR T-cell immunotherapy in lung cancer. CXCR4 is upregulated in lung cancer tissues and cell lines (115), and has been validated as a target for NSCLC treatment (116). The MAGE-A1 antigen was selected by analyzing the cancer/testis antigen database, and MAGE-A1-specific CAR-T cell immunotherapy against lung adenocarcinoma has shown to be effective and safe (117).

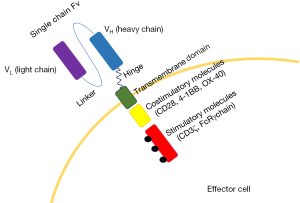

Figure 2 Chimeric antigen receptor-T cells (CAR-T cells). The components of CAR-T cells consist of a single-chain antibody (single-chain antibody variable fragment, scFV), a flexible connecting chain (hinge), a transmembrane domain and the signaling domains of the costimulatory molecule CD28, 4-1BB or OX-40 and stimulatory molecule CD3ζ and FcRγchain.

Disialoganglioside (GD2) is highly expressed in SCLC and is a potential target for immunotherapy. As a novel approach to combat SCLC, iPSC-derived rejuvenated GD2-CART (GD2-CARrejT) has been developed. Compared with conventional GD2-CART, GD2-CARrejT with reduced expression of TIGIT and PD-1 exhibits potent cytotoxicity against SCLC and may be a promising treatment for SCLC (118).

Moles et al. reported that countering CAR downmodulation via CXCR4 co-expression in CAR-NK cell therapy may improve CAR-T effector function, an issue that has not been addressed in NK cells. Longer surface residence time likely delays endocytosis and lysosomal degradation (119). This may be due to (I) recruitment of P-ZAP-70 to synapses via CXCR4, (II) stabilization of synapses and CAR surface deposition, and (III) enhanced antigen-dependent CAR activation by hijacking or conspiring signaling nodes. The homeostatic chemokine receptor CXCR4 is thought to function as a coreceptor during the formation of CAR-mediated immunological synapses, which has been reported to be important in NK cells with low endogenous CXCR4 expression (120).

Mao et al. reported that MAGE-A1 is a promising target for lung adenocarcinoma and that the innovative MAGE-A1-CAR-T cell (mCART) exerts remarkable antitumor activity against MAGE-A1-positive lung adenocarcinoma, which is expected to become a new strategy for lung adenocarcinoma immunotherapy (117).

TCR-transduced effector cells

TCR-transduced effector cell therapy is a promising treatment strategy that induces strong cellular immune responses against lung cancer. However, it has limitations in that it can only be administered to patients with matched cancer antigen expression and HLA types. HLA0802-restricted KRAS mutation-specific TCR-injected autologous T-cell therapy resulted in 72% tumor regression in patients with KRAS mutation-positive pancreatic cancer. Furthermore, TCR-injected autologous T cells were detected in the peripheral blood more than six months after administration (121). Robbins et al. reported that NY-ESO-1-specific TCR-transduced T cells were administered to patients with synovial cell sarcoma and melanoma, and clinical responses were observed in four of six patients with synovial cell sarcoma and five of 11 patients with melanoma (122).

Conclusions

The widespread use of ICIs has caused a paradigm shift in lung cancer treatment, which continues to evolve. ICIs have fewer side effects than traditional chemotherapeutic drugs, improve overall survival rates, and play a central role in lung cancer chemotherapy. Currently, patients with lung cancer have several treatment options, ranging from single-agent immunotherapy to quadruple therapy, which combines immunotherapy with chemotherapy and anti-VEGF drugs. Elucidating the mechanism of resistance to ICIs is important for the development of next-generation immunotherapy; however, as reviewed in this article, the interactions between cells and molecules with the immune system and the immunological environment of the tumor are intricately related, making clarification of resistance mechanisms difficult. Perhaps, we are entering an era in which treatment plans will be individually tailored to each patient’s tumor immunological microenvironment and molecular expression.

Cell therapy has the potential to become a powerful next-generation therapy. With the development of molecular biology techniques, it is becoming possible to obtain ideal immunotherapeutic effects by transferring receptors with higher tumor specificity and affinity to more powerful effector cells. To develop promising treatments for effective lung cancer in the future, it is necessary to continue research to deepen our understanding of lung cancer and the surrounding immune system.
