The impact of previous therapy strategy on the efficiency of anlotinib hydrochloride as a third-line treatment on patients with advanced non-small cell lung cancer (NSCLC): a subgroup analysis of ALTER0303 trial

Introduction

Lung cancer is one of the highest incidences of cancers in the world. It represents 12.9% of the global cancer incident burden and correlates with around one-fifth of the cancer fatalities worldwide (1). Approximately 85% of patients with lung cancer are diagnosed as non-small cell lung cancer (NSCLC) (2). Although the 5-year survival rate in unresectable NSCLC has been greatly improved in recent years due to antiangiogenic treatment and the targeted treatment, according to driver-genes, NSCLC still remains the deadliest cancers in China (3). After receiving the standard first and second-line treatments, Chinese patients seldom have effective drugs to choose from in third-line treatment for further improving their overall survival (OS).

Anlotinib (AL3818) hydrochloride, a novel oral multitarget tyrosine kinase inhibitor (TKI), shows broad anticancer activity in many solid tumors both in vivo and in vitro (4-8). Anlotinib suppressed tumor angiogenesis and proliferation via blocking the receptor of tyrosine kinases in the signaling pathway of vascular endothelial growth factor receptor (VEGFR) 1 to 3, platelet-derived growth factor receptor (PDGFR) α and β, fibroblast growth factor receptor (FGFR) 1 to 4, and stem cell factor receptor (7). In phase 3 of the randomized, double-blinded ALTER0303 clinical trial, anlotinib was used as a third-line or further treatment in patients with advanced NSCLC (stage IIIB to IV) (8). A total of 439 patients from 31 hospitals in China were enrolled in this trial, and 296 patients were randomized into the anlotinib group, and 143 were randomized into the placebo group. The primary endpoint of OS was observed significantly longer in the anlotinib group (median, 9.6 months; 95% CI, 8.2–10.6) than the placebo group (median, 6.3 months; 95% CI, 5.0–8.1), with a hazard ratio (HR) of 0.68 (95% CI, 0.54–0.87; P=0.002). Progression-free survival (PFS) was also improved significantly in the anlotinib group compared with the placebo group [median, 5.4 vs. 1.4 months; HR, 0.25 (95% CI, 0.19–0.31); P<0.001]. This clinical trial revealed that anlotinib had great efficacy and was well-tolerated as third-line and further therapy among Chinese patients in this trial, indicating a potential treatment option for patients with advanced NSCLC.

Like most antiangiogenic drugs, the biomarker for anlotinib is still not very clear. What kind of patients would benefit from anlotinib treatment still remains unknown. In this study, we analyzed the subgroups data in phase 3 of ALTER 0303 clinical trial to evaluate whether different kinds of previous treatments will have an impact on the efficiency of anlotinib.

Methods

Study design and treatment

This double-blind, multicenter, randomized phase 3 clinical trial (ClinicalTrials.gov identifier: NCT02388919) was undertaken in 31 hospitals in China to estimate the efficacy and safety of anlotinib in patients with advanced NSCLC. The trial was conducted according to the principles of the Declaration of Helsinki and Good Clinical Practice requirements.

As reported previously (8), 439 patients were enrolled between March 1, 2015, and August 31, 2016. Inclusion criteria included the following: 18 to 75 years old; histological or cytological diagnosed NSCLC; pathologically confirmed as stage III and IV; Eastern Cooperative Oncology Group (ECOG) Performance status score 0 or 1; expected life of no less than 3 months; having at least one measurable lesion; disease progression after at least 2 lines of chemotherapy or at least 1 line of chemotherapy and TKI therapy for the patients with EGFR mutation or ALK rearrangement; adequate main organ function. Exclusion criteria included brain metastases that were uncontrolled or controlled for less than 2 months; central squamous lung cancer with the cavity; or hemoptysis (>50 mL/d).

The primary endpoint was OS. The key secondary endpoints were PFS, objective response rate (ORR), disease control rate (DCR), and quality of life. The treatments of all patients before entering this trial have been well documented in detail.

Procedures

Patients were randomly divided into the anlotinib group or the placebo group by a 2:1 ratio. Anlotinib (12 mg/d) capsule or matched placebo was administered daily every continuous 14 days with 7 days break. Every 3 weeks were defined as one cycle of the treatment. The treatment terminated if patients had disease progression, toxicity intolerance, or withdrew the consent. The tumor was evaluated by computed tomography according to the Response Evaluation Criteria in Solid Tumors guidelines, version 1.1. Tumor assessment was performed within 2 weeks before treatment once per cycle during the first 2 cycles of the treatment and then assessed once every 2 cycles. The toxicity, efficacy, and survival of patients were followed up every 8 weeks until the death of the patient or until the data cutoff date (January 6, 2017), or whichever came first.

Statistical analysis

PFS was defined as the time from the date of randomizing to the date of disease progression. OS was defined as the time from the date of randomizing to the date of the patient’s death. We used multivariable Cox proportional hazards models for PFS and OS. In model 1, we included 10 variables from the patient characteristics, plus previous antiangiogenic drugs. In model 2, we included the same variables as in model 1 but changed previous chemotherapy history to previous chemotherapy agents. In model 3, we included the same variables as in model 1 but changed the previous target therapy history to previously targeted agents. In model 4, we included the same variables as in model 1 but changed radiotherapy history to previous chest radiotherapy (CRT). Pearson χ², or Fisher’s exact test, was used to comparing the incidence of each group. All the statistical analysis was carried out on the basis of two side α=0.05 and 95% CI by using SPSS 20.0 software. Median PFS and OS for patients were analyzed using Kaplan-Meier analysis.

Results

As described previously (8), a total of 439 patients were randomized in the ALTER0303 clinical trial (NCT02388919). Two patients withdrew their consent after randomization, and 294 patients ultimately remained in the anlotinib group, with 143 patients in the placebo group. It has been demonstrated that anlotinib could prolong PFS (5.37 vs. 1.40 m P<0.0001) and OS (9.63 vs. 6.30 m P=0.0018) significantly as third-line therapy in patients with advanced NSCLC (8). Previous therapeutic strategies were well balanced in both the anlotinib group and placebo group except for tumor surgery history (Table 1).

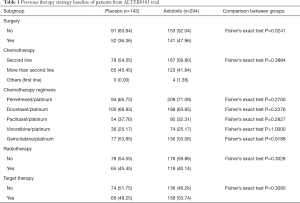

Table 1 Previous therapy strategy baseline of patients from ALTER0303 trial
Full table

In the anlotinib group, 11 patients used bevacizumab, and 16 patients used endostatin as the previous treatment before entering this clinical trial. We divided the patients who received anlotinib into three groups: the bevacizumab group (11 patients), endostatin group (16 patients), and without bevacizumab or endostatin group (268 patients). There was no statistical significance between PFS and OS among patients treated with anlotinib among the three groups (Figure 1): bevacizumab (11 patients), endostatin (16 patients), and without bevacizumab or endostatin group (268 patients). There were 13 patients with the best efficacy of both endostatin and anlotinib that could be evaluated in the endostatin group (Figure 2A), and 10 patients in the bevacizumab group with the valuable best efficacy of both bevacizumab and anlotinib (Figure 2B). After multivariable adjustment, previous antiangiogenic drugs were not associated with PFS and OS in patients with anlotinib (Tables S1,S2). The best efficacy of endostatin, bevacizumab, and anlotinib is shown in Figure 2.

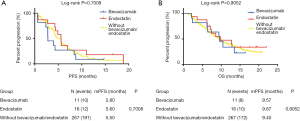

Figure 1 Kaplan-Meier estimates of overall and progression-free survival among different previous antiangiogenic therapy subgroup in patients treated with anlotinib.

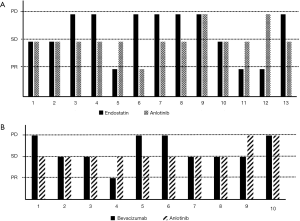

Figure 2 Comparison of efficiency between bevacizumab or endostatin and anlotinib in different patients.

Table S1 Multivariable Cox proportional hazards model 1 for PFS
Full table

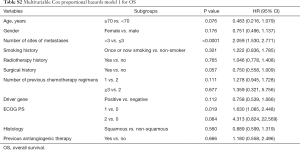

Table S2 Multivariable Cox proportional hazards model 1 for OS
Full table

Sixty-one patients had a history CRT, and they had been treated with lung and/ or mediastinum radiotherapy before using anlotinib. Among these patients, 46 had a recorded dose of radiotherapy. The median months from the CRT to the treatment of anlotinib was 11.87 months (0.92–67.93 months), while 52% (24/46) of patients received radical radiotherapy with 60–65 Gy, while the other 48% (22/46) of patients received palliative radiotherapy with 30–50 Gy. As shown in Figure 3, patients in the CRT group had longer median PFS than the non-CRT group (5.93 vs. 4.63 m, P=0.027) with a hazard ratio (HR) that decreased to 0.68 (95% CI, 0.52 to 0.96). However, no statistical significance was observed in OS data between the two groups. The median OS was 10.67 months (CRT group) and 9.20 months (non-CRT), respectively. After multivariable adjustment, CRT associated with longer PFS in patients with anlotinib, but it was associated with OS (Tables S3,S4).

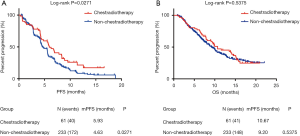

Figure 3 Kaplan-Meier estimates of overall and progression-free survival between previous chest radiotherapy and non-chest radiotherapy subgroups in patients treated with anlotinib.

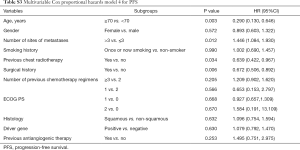

Table S3 Multivariable Cox proportional hazards model 4 for PFS
Full table

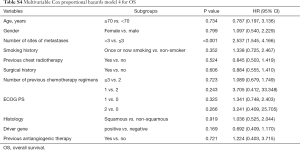

Table S4 Multivariable Cox proportional hazards model 4 for OS
Full table

We also analyzed whether previous chemotherapy or EGFR TKI treatment would have an impact on the efficacy of anlotinib. After multivariable adjustment, previous docetaxel plus platinum was associated with longer PFS in patients with anlotinib. However, previous chemotherapy regimens were associated with OS (Tables S5,S6). After multivariable adjustment, previous EGFR TKI was not associated with the PFS of patients with EGFR mutation in the anlotinib arm. However, the previous afatinib was associated with death, which might have been because of the small sample size (n=4) (Tables S7,S8). As was shown in Table 2, patients were stratified by EGFR mutation, no matter what chemotherapy regimens patients had been treated with, patients from both the EGFR wild type group and the EGFR mutation group could benefit from anlotinib on PFS. Meanwhile, only patients treated with vinorelbine platinum (P=0.030) in the EGFR wild type group, pemetrexed platinum, and vinorelbine platinum (P=0.010) in the EGFR mutation group could benefit from anlotinib on OS. OS had statistical significance between the anlotinib group and placebo group when EGFR TKI used as the first-line therapy (P=0.020), but not for second-line therapy. Among the three EGFR TKIs, the gefitinib (P=0.008), erlotinib, icotinib, and only OS in gefitinib (P=0.008) groups had statistical significance. All patients treated with any of the three EGFR TKIs as first-line or second-line therapy could benefit from anlotinib on PFS compared with the placebo.

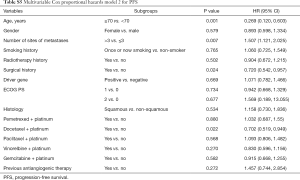

Table S5 Multivariable Cox proportional hazards model 2 for PFS
Full table

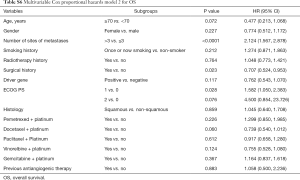

Table S6 Multivariable Cox proportional hazards model 2 for OS
Full table

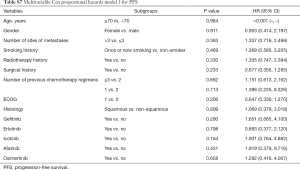

Table S7 Multivariable Cox proportional hazards model 3 for PFS
Full table

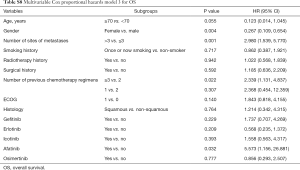

Table S8 Multivariable Cox proportional hazards model 3 for OS
Full table

Table 2 Efficacy of anlotinib in different previous EGFR TKI and the chemotherapy regimen treatment subgroup
Full table

Discussion

In recent years, antiangiogenic therapy has played an increasingly important role in treatments of advanced-stage NSCLC. Bevacizumab, a vascular endothelial growth factor (VEGF) monoclonal antibody, combined with platinum-based chemotherapy has been approved by FDA for use as standard first-line therapy in non-squamous NSCLC according to the results of phase 3 clinical trials (9). Bevacizumab greatly improved median OS from 10.3 to 12.3 months with an HR of 0.80 (95% CI, 0.69–0.93), but in the third-line therapy, none of the previous multi-target TKIs, such as sorafenib (10), sunitinib (11), pazopanib (12) and vandetanib (13), could improve the OS times of patients compared to placebo. However, the ALTER0303 trial proved that anlotinib, a new third-line therapy choice in China, can benefit patients on both PFS and OS as reported previously. As multi-kinase inhibitors, sorafenib, sunitinib, and pazopanib target some receptor tyrosine and serine/threonine kinases, including receptors for a vascular endothelial growth factor (VEGFR), platelet-derived growth factor (PDGFR), and c-Kit. Compare to these multikinase inhibitors, anlotinib has a wider range of targets, which might lead to better PFS and OS in patients with NSCLC. In this paper, the subgroup of previous therapeutic strategies analysis was undertaken to reveal further what kind of patients will benefit from anlotinib treatment.

As shown in Figure 2, 13 patients with endostatin treatment history and 10 patients with bevacizumab treatment history, the best efficacy of anlotinib does not correlate with the efficacy of previously used bevacizumab or endostatin. Among 7 patients who had PD effects of endostatin treatment, anlotinib therapy received 1 PR, 4 SD, and 1 PD. Among 4 patients who had PD effects of bevacizumab treatment, anlotinib therapy received 3 SD and 1 PD. As we know, cancer angiogenesis is regulated by several signaling pathways, including the vascular endothelial growth factor (VEGF), fibroblast growth factor (FGF) and platelet-derived growth factor (PDGF) pathways (14). In recent years, most anti-angiogenesis treatments have focused on the recombinant humanized monoclonal antibody, bevacizumab, which can block the VEGFR signaling pathway by binding to circulating VEGF (15). However, NSCLC cells often acquire resistance to bevacizumab following continued administration. Increasing evidence has indicated that the activation of the bypass signaling pathway, such as the FGF and PDGF signaling pathways, is the main acquired resistance mechanism to Bevacizumab therapy (16). Anlotinib blocks VEGFR 1 to 3, PDGFRα and β, FGFR 1 to 4, and c-KIT (7), while bevacizumab only combined with VEGF (17). Endostatin, a 20-KDa C-terminal fragment of collagen XVIII, inhibits vascular endothelial cell proliferation, and VEGF/VEGFR signal transduction (18). This may be due to these three antiangiogenic regimens having different targets, and even patients who did not benefit from bevacizumab or endostatin treatment can benefit from anlotinib in third-line therapy. However, the number of patients who had received prior bevacizumab and endostatin was very low in this clinical trial, and thus, the findings need to be verified in a larger sample of patients.

CRT is a common strategy to strengthen the stability of local chest tumors. In our study, patients with CRT previously might have had longer PFS times in the anlotinib treatment group, while CRT did not impact patients’ OS time. Radiation therapy (RT) has been proven to have a role in the induction of the antitumor immune response (19). RT could promote increasing antigenic expression, releasing pro-inflammatory cytokine, which recruits immune cells, promoting antigen cross-presentation (20). Also, there is increasing evidence that anti-VEGF therapy might change the tumor microenvironment from an immunosuppressive to an immune permissive status (21). In phase III randomized trial, IMpower 150, the results showed a significant improvement in PFS and OS with the addition of atezolizumab to bevacizumab combined with chemotherapy as first-line treatment for non-squamous metastatic NSCLC (22). In this study, we found patients with CRT had a longer PFS. This may be due to CRT changing the immune microenvironment of cancer, which might increase the efficiency of anlotinib. However, this conclusion was drawn from a retrospective analysis in limited patients. It needs to be verified by prospective clinical research. Chemotherapy and EGFR TKI were the most common strategies used as the first- or second-line treatments in NSCLC patients. In this study, we also discovered that most of the previous EGFR TKI and different chemotherapy regimens have an impact on PFS rather than OS in the anlotinib group. When the previous treatment time was considered, anlotinib may increase OS time around 6 months compared to the placebo group.

Conclusions

This study revealed that previous bevacizumab or endostatin treatments had no impact on the efficacy of anlotinib in third-line treatment. Patients with CRT history seem to benefit more on PFS from anlotinib treatment but not for OS. Also, no matter what kind of EGFR TKI and chemotherapy regimens, all patients would gain longer PFS from anlotinib treatment. However, only patients treated with vinorelbine/platinum in the EGFR wild type group, pemetrexed/platinum, vinorelbine/platinum, and gefitinib EGFR mutation group, along with the EGFR TKI used as the first-line therapy group could benefit from anlotinib on OS compared to the placebo. These findings may help us to find patients who are suitable for anlotinib treatment according to their previous therapeutic strategies. Due to the limited number of patients in every subgroup, these results need to be further verified by a larger population.

Acknowledgments

We thank the patients and their families as well as the investigators and study teams for their participation in the study.

Funding: This work was supported by a grant from the Medical Science and Technology Foundation of Henan Province (No. 201601026) and in part by the National Natural Science Foundation of China (No. 81272600), Henan Provincial Training Abroad Foundation for Leaders of Medical Science (No. 201082), Henan Provincial Special Funds for Health and Technological Innovative Talents (No. 2011020155), Henan Provincial Research Program of Application Foundation and Advanced Technology (No. 112300410033), a project co-sponsored by the Henan Province and Ministry of Health of Medical Science and Technology Program (No. 201601026), the 51282 project Leading Talent of Henan Provincial Health Science and Technology Innovation Talents (No. [2016]32), and Wu Jieping Medical Foundation for Clinical Research (No. 320.6799.15018). It was also supported by the Program for Science and Technology Innovation Talents in Universities of Henan Province (No. 18HASTIT044). The funders had no role in study design, data collection, and analysis, decision to publish, or preparation of the manuscript.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The trial was conducted according to the principles of the Declaration of Helsinki and Good Clinical Practice requirements. All 31 institutions obtained approval from the research ethics board of each site. All the patients were willing to participate and signed informed consent. The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
