T cell immunoglobulin and mucin-domain containing-3 in non-small cell lung cancer

Introduction

Lung cancer is increasingly threating the public health all over the world with relatively high morbidity and mortality among all cancers (1,2). Non-small cell lung cancer (NSCLC) is the commonest pathologic type. Conventional chemotherapy has limited effect on advanced stage NSCLC patients. Targeted therapy successfully improves the prognosis of NSCLC patients with driver gene mutations (2-4). However, the population harbors driver gene mutations accounts for only a small part of NSCLC patients (4). Moreover, drug resistance often occurs after a short period of targeted therapy (4).

Recent years, immunotherapy hits the spotlight with its remarkable breakthrough in cancer treatment (5-7). Unfortunately, the mechanism of tumor immunotherapy is not fully understood. Thus, approximately only one quarter of patients could be benefited from programmed cell death protein-1 (PD-1) or programmed death ligand-1 (PD-L1) blockade therapies. What’s worse, resistance to immunotherapy remains a main obstacle to extending overall survival (OS), and the mechanisms of drug resistance are still largely unknown. Further studies of immune checkpoints and cancer immune microenvironments are required in order to promote the outcome of immunotherapy. Among these studies, approaches focus on other immune checkpoints are considered of great potential.

T cell immunoglobulin and mucin-domain containing-3 (TIM-3) belongs to the Ig superfamily (8). TIM-3, as a cell membrane protein marker, was first discovered on Th1 and Tc1 cells which produce IFN-γ (8). TIM-3 suppressed T cell functions. The impairment of TIM-3 function could cause autoimmune diseases, such as multiple sclerosis and Crohn’s disease (8,9). TIM-3 is often co-expressed with PD-1 and some other inhibitory surface marker in exhausted T cells (10). The frequency of TIM-3(+) CD8(+) T cells, which inhibiting cytokine production, was elevated in human immunodeficiency virus 1 (HIV-1) infection (11). Recently, TIM-3 was reported to be correlated with anti-tumor immunity. Using mouse model, Sakuishi et al. found that over half population of CD8+ tumor infiltrating lymphocytes (TILs) co-expressed TIM-3 and PD-1 (12). The co-expression of TIM-3 and PD-1 marked the most exhausted CD8(+) T cell phenotype (13). Moreover, it was reported that TIM-3 upregulation in NSCLC patients might induce resistance to therapeutic PD-1 blockade (14). Nowadays, several anti-TIM-3 monoclonal antibodies were currently in clinical trials. TIM-3 blockade therapy was considered of high potential in enhancing anti-PD-1/L1 therapy when combined and may overcome the resistance to anti-PD-1/L1 treatment. This study elucidated the correlation between the expression patterns of TIM-3 and other checkpoints in NSCLC, and their correlation with survival.

Methods

Patient samples

We collected 139 surgical resected primary lung cancer specimens from Medical University of Gdansk, Poland (ethical number 15–235), which we mentioned in our published paper (15). Patients had not undergone any kind of treatment before surgery. The surgical histology reports were reviewed and the lymph node and lung cancer stages were categorized by 7th edition International Association for the Study of Lung Cancer (IASLC) TNM staging system. All participants were competent to provide their consent.

Immunohistochemistry (IHC) by Ventana benchmark XT^®

IHC was performed by Ventana benchmark XT^® (15). Primary antibodies (TIM-3, D5D5R, 1:500, Cell Signaling) were applied.

Select the IHC cutoff value

The pathologic tests were completed by two experienced pathologists independently. All samples were reviewed. TIM-3 positive on TILs was confirmed only when there was more than 10% staining. On tumor cells, the cutoff was rather low (>5%) because TIM-3 was rarely found on tumor side. We tested different cutoffs with survival analysis to decide the best cutoff, when the statistical differences of recurrence-free survival (RFS) and OS were maximized simultaneously (15,16).

Evaluation of TILs

According to previous study, we calculated the number of lymphocytes within each histo spots (17). The fraction of TILs was divided into three level: <30% was low, 30–60% was medium and >60% was rather high. Any spot categorized into different level were rechecked by two pathologists together until a consensus was reached (18).

Data analysis

The relationship between TIM-3 expression and clinical pathological parameters was evaluated by Chi-square tests. Expression level of TIM-3 and PD-1/L1 were tested by Spearman’s correlation tests, in order to analyze the association between checkpoints. We also performed logistic regression to analyze the relationship between TIM-3 and factors including age, gender, smoking history, lung cancer stage, grade, PD-1 and PD-L1 level. The survival distributions of different groups were compared using the Kaplan-Meier method. We also performed univariate and multivariate Cox regression. The hazard ratios (HRs) and their 95% confidence intervals (95% CIs) were computed after adjusting by age, gender, smoking status, T stage, N stage, M stage, lung cancer stage and grade. The endpoint for RFS was tumor relapse. The endpoint for OS was death from any cause. All P values were 2-sided, and statistical significance was defined as P<0.05. Statistical analysis was performed using SPSS statistical software package (version 17.0; SPSS, Inc.; Chicago, IL, USA).

Results

Clinical characteristics of patients

From April 2010 to August 2011, Medical University of Gdansk, Poland provided us with 139 surgical resected NSCLC specimens along with their clinical data. In these patients, 109 (78.4%) were male and 30 (21.6%) were female. Average age was 64. Six (4.3%) patients had no smoking history. Fifty-eight (41.7%) patients had stage I NSCLC, 35 (25.2%) had stage II, 39 (28.1%) had stage III, and 7 (5.0%) had stage IV. Forty (28.8%) patients had adenocarcinoma, and 81 (58.3%) had squamous cell carcinoma (SCC) (Table 1).

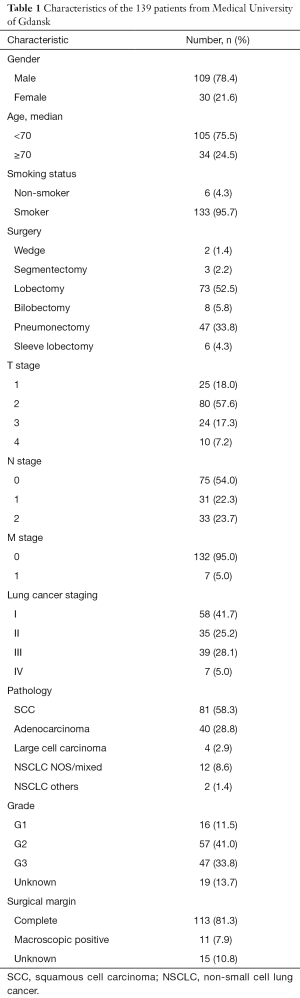

Table 1 Characteristics of the 139 patients from Medical University of Gdansk
Full table

Association between TIM-3 and clinical parameters

In all tested samples, 9 (6.5%) had positive TIM-3 expression on tumor cells (>5% staining), 11 (7.9%) had TIM-3 positive TILs (>10% staining) (Figure 1). TIM-3 positive tumors had higher chance of metastasis, though not statistically significant (5.3% vs. 28.6%, P=0.066). The distributions of other clinical characteristic, including age, gender, smoking history, stage, pathologic type and grade, were even when grouped with TIM-3 on either side. The negative effect of tumor side TIM-3 on the number of TILs was observed but not significant. However, we did find that TIM-3 positive tumors were more likely to have TIM-3 positive TILs, and vice versa (Table 2).

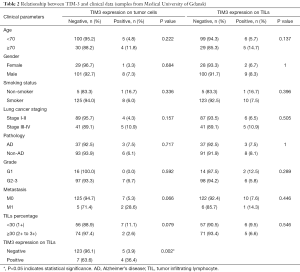

Table 2 Relationship between TIM-3 and clinical data (samples from Medical University of Gdansk)
Full table

Figure 1 Expression of TIM-3 on tumor cells and TILs. (A) Positive staining of TIM-3 on tumor cells. (B) Negative staining of TIM-3 on tumor cells. (C) Positive staining of TIM-3 on TILs. (D) Negative staining of TIM-3 on TILs. TIM-3, T cell immunoglobulin and mucin-domain containing-3; TIL, tumor infiltrating lymphocyte.

Correlation between TIM-3 and PD-1/L1

We use the Spearman’s correlation test to describe the connection between the level of TIM-3 and other checkpoints. All patients were included in this analysis. The IHC scores was evaluated as grade variables. We found thatTIM-3 level on TILs had broad connections with other checkpoints including PD-1 (correlation coefficient =0.346, P<0.001) and PD-L1 (correlation coefficient =0.313, P<0.001). Interestingly, TIM-3 level on TILs also had positive relation with PD-L1 level on tumor cells (correlation coefficient =0.255, P=0.002), TIM-3 level on tumor cells (correlation coefficient =0.262, P=0.002) and TIL percentage (correlation coefficient =0.172, P=0.043). However, TIM-3 level on tumor cells only had correlation with PD-L1 level (correlation coefficient =0.170, P=0.045) (Table 3).

Table 3 Relationship between expression level of TIM-3 and other checkpoints
Full table

Logistic regression for TIM-3 expression

With the logistic regression model, we performed univariate and multivariate analysis. After adjusting for age, gender, smoking status, pathologic type and tumor stage, the OR for TIM-3 expression on tumor cells was 5.318 (95% CI, 1.298–21.785; P=0.02) when samples showed PD-L1 positive on tumor cells compared with those showed negative on tumor cells (Tables S1,S2).

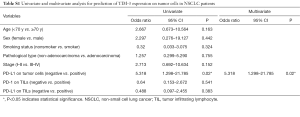

Table S1 Univariate and multivariate analysis for prediction of TIM-3 expression on tumor cells in NSCLC patients
Full table

Table S2 Univariate and multivariate analysis for prediction of TIM-3 expression on TILs in NSCLC patients
Full table

Association between TIM-3 expression and survival in NSCLC

The median PFS of 139 patients was 1.720 years, 92 (66.2%) patients had relapse. Median OS was 2.780 years, 92 (66.2%) patients reached the end event. For 93 stage I–II patients, 52 (55.9%) had the end event for PFS with a median of 3.090 years, 50 (53.8%) had the end event for OS with a median of 3.280 years. For 46 stage III–IV patients, 40 (87.0%) had relapse with a median PFS of 0.660 years, 42 (91.3%) reach the end event of OS with a median of 0.730 years. The cutoff we used for KM test were as aforementioned, >5% on tumor cells and >10% for TILs. TIM-3 level on tumor cells failed in predicting RFS or OS, although the positive group had slightly shorter survival (RFS 1.760 years, 95% CI, 1.246–2.274 vs. 0.760 years, 95% CI, 0.497–1.023, P=0.622; OS 2.790 years, 95% CI, 1.970–3.610 vs. 1.043 years, 95% CI, 0.000–3.505, P=0.615) (Figure 2A,B). TIM-3 status on TILs could help to predict the RFS and OS of patients simultaneously. High level of TIM-3 on TILs indicated shorter RFS and OS (RFS 1.800 years, 95% CI, 1.230–2.370 vs. 0.870 years, 95% CI, 0.212–1.528, P=0.048) (OS 2.960 years, 95% CI, 2.268–3.652 vs. 1.080 years, 95% CI, 0.228–1.932, P=0.034) (Figure 2C,D).

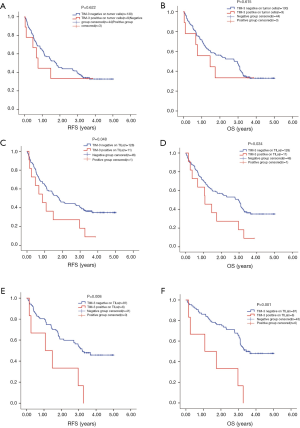

Figure 2 Survival analysis by TIM-3 level on TILs and tumor cells. High level of TIM-3 on TILs indicated shorter RFS (C: RFS 1.800 years, 95% CI, 1.230–2.370 vs. 0.870 years, 95% CI, 0.212–1.528, P=0.048) and OS (D: OS 2.960 years, 95% CI, 2.268–3.652 vs. 1.080 years, 95% CI, 0.228–1.932, P=0.034). TIM-3 level on tumor cells showed no correlation with survival (A: RFS 1.760 years, 95% CI, 1.246–2.274 vs. 0.760 years, 95% CI, 0.497–1.023, P=0.622) (B: OS 2.790 years, 95% CI, 1.970–3.610 vs. 1.043 years, 95% CI, 0.000–3.505, P=0.615). In stage I–II patients: E: RFS 3.210 vs. 1.080 years, P=0.008; F: OS 3.440 vs. 1.080 years, P=0.001.

We then separately analyze the prognostic value of TIM-3 on both sides in stage I–II and stage III–IV patients. Regretfully, the sample size of tumor TIM3 positive was too small to show any positive results (4 at stage I–II; 5 at stage III–IV). However, we did find that the prognostic value of TIM-3 on TILs was more significant in in stage I–II patients for both RFS and OS (stage I–II: mRFS 3.210 vs. 1.080 years, P=0.008; mOS 3.440 vs. 1.080 years, P=0.001, Figure 2E,F) (stage III–IV: mRFS 0.660 vs. 0.607 years, P=0.909; mOS 0.730 vs. 1.060 years, P=0.448).

Cox regression for survival analysis

We computed the HRs of clinical parameters and checkpoint expression levels using univariate and multivariate cox regression. However, the cox regressions showed no correlation with TIM-3 expression on TILs or TCs. Only cancer stage was related with both RFS (P=0.009, HR 2.543, 95% CI, 1.265–5.112) and OS (P=0.001, HR 3.393, 95% CI, 1.686–6.829) (Tables 4,5). But in stage I-II patients, TIM-3 on TILs showed great prognostic value for OS in multivariate cox regression (P=0.002, HR 3.912, 95% CI, 1.646–9.296) (Tables 6,7).

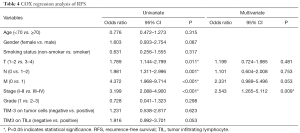

Table 4 COX regression analysis of RFS
Full table

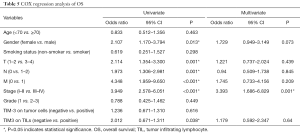

Table 5 COX regression analysis of OS
Full table

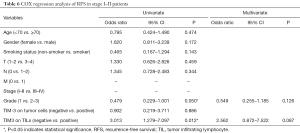

Table 6 COX regression analysis of RFS in stage I–II patients
Full table

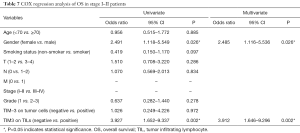

Table 7 COX regression analysis of OS in stage I–II patients
Full table

Discussion

The aim of this research was to evaluate TIM-3 expression status on tumor cells and TILs in NSCLC tumor tissue. This study that underlined that TIM-3 expression level on TILs was associated with the expression of other immune checkpoints and the survival time of NSCLC patients. We found TIM-3 was expressed on tumor cells and lymphocytes in both adenocarcinoma and squamous carcinoma. More importantly, high level of TIM-3 on lymphocytes was correlated with early relapse and shorter survival time on NSCLC patients.

TIM-3 is an immune checkpoint protein which can suppress T cell functions. TIM-3 was first discovered to screen for T helper type 1 cells producing IFN-γ (8). In a previous study, researchers found that TIM-3 blockade therapy could reverse peripheral tolerance in Th1 cells (19). While in TIM-3-knocked out mouse models, high level of antigen could not induce antigen tolerance (19). The study of TIM-3 was extended to tumor immunity. In melanoma patients, TIM-3 marked a group of CD8(+) lymphocyte that display decreased cytokine production (20). When non-Hodgkin lymphoma patients administered with IL-2, TIM-3 was upregulated and contributed to the development of T cell exhaustion (21). Several former studies also showed that TIM-3 had similar function like PD-1 and PD-L1 in the impairment of antitumor immunity. TIM-3 was detected on several kind of tumor cells including melanoma, gastric cancer, cervical cancer and lung cancer (20,22-24). Published data indicated that TIM-3 upregulation on cancer cells had significant correlation with shorter survival in NSCLC patients (22). However, given the fact that TIM-3 mainly serves its immune suppressive function on T cells, to describe the common TIM-3 status on NSCLC TILs is certainly necessary.

Our study indicated that TIM-3 was widely existed in NSCLC tissue, expressed by both tumor cells and TILs. There was no correlation between TIM-3 expression and clinical features as most immune checkpoint did. However, we discovered a co-expression pattern of TIM-3, PD-1 and PD-L1 on TILs. Meanwhile, although TIM-3 level was much higher on TILs than on tumor cells, patients had TIM-3 positive cancer cells were more likely to have TIM-3 positive lymphocytes. This finding was consistent with a recent study using single-cell analysis (25), suggesting high credibility of these results. The co-expression of TIM-3, PD-1 and PD-L1 could lead to various consequences. According to previous study, the co-expression pattern may contribute to the development of PD-1(+) TIM-3(+) CD8(+) phenotype lymphocytes, which was considered the most exhausted T-effector cell phenotype (13). In ovarian cancer, these triple-positive T cells were correlated with poor prognosis (26). More importantly, TIM-3 could cause adaptive resistance to checkpoint blockade therapy (14). A remarkable work by Datar et al. (25) used multiplexed quantitative immunofluorescence to test PD-1, TIM-3 and anti-lymphocyte activation gene 3 (LAG3, CD223) on two large lung cancer cohort. The correlation between PD-1 and TIM-3 was found in their study, as well as the prognostic value of TIM-3, which was similar to our results. Furthermore, they detected the co-expression of PD-1, TIM-3 and LAG-3 was related with makers indicating T-cell activation, proliferation and effect function, but also apoptotic markers. Additionally, a former research also showed that a large fraction of TIM-3(+) CD4(+) T cells expressed FOXP3, which is a protein biomarker for immune suppressive regulatory T cells (27,28). These studies together demonstrated that TIM-3 played an important part in T cell immunity dysfunction and might eventually lead to tumor progression. And the upstream signal pathways causing this co-expression of TIM-3 and PD-l/L1 were also worthy of further investigation. In a recent publication (29) by our group, we analyzed the prognostic value of galectin-9, one ligand of TIM-3, using the same cohort. It was quite intriguing to find that high galectin-9 on tumor side or TILs side could lead to completely diverged outcomes. The association between TIM-3 and galectin-9 expression in situ was also found, suggesting that the main ligand of TIM-3 might be galectin-9 on lymph cells since high galectin-9 on tumor cell led to longer OS.

We also conducted the correlation analysis between TIM-3 and survival. No difference was found when patients who had TIM-3 expression on their cancer cells compared with those whose cancer cells had no TIM-3 expression. However, patients had TIM-3 negative TILs showed notably longer PFS and OS than those had TIM-3 positive expression on TILs. This finding might support the hypothesis that TIM-3 was more functional on TILs, rather than on tumor cells. A study in mouse models showed that a combined therapy of anti-TIM-3 and anti-PD-L1 antibodies could successfully induce tumor shrinkage (12). An expansion of memory precursor- and effector-like CD8(+) T cells was also detected after this combined therapy, suggesting that the combination of these therapies may have more a profound effect on tumor micro environment (30).

Several clinical trials of anti-TIM3 monoclonal antibodies in patients with advanced solid tumors were currently ongoing. Most of these trials combined TIM-3 blockade with other therapies such as anti-PD1 and anti-LAG3 (NCT03311412, NCT02817633). Some added anti-TIM-3 to classical regimen with anti-PD-1, chemotherapy and bevacizumab (NCT03307785). LY3321367, an anti-TIM-3 monoclonal antibody, has shown been well tolerated as monotherapy or combined with anti-PD-L1 antibody. We suggested that these drugs in trails had a promising prospective when combined or in the treatment of PD-1/L1 antibody resistant tumors.

Limitations of our study are obvious. First, this was an exploratory, hypothesis generating retrospective study with a rather small and heterogeneous cohort. Especially when tumor-side TIM-3 positive patients only accounted for 6.5% of total, we had to admit that the data of TIM-3 on tumor cell was insufficient. Second, without a settled cutoff for TIM-3, we ran the survival analysis repeatedly with different cutoffs and decide the optimized cutoffs when the survival difference between groups was maximized. Third, the lack of clinical information like mutation type and treatment data limited the depth of this research. For further investigation, a prospective study with larger cohort is needed and more elaborate experiment design may be expected. What’s more, several recent studies found that co-expression of inhibitory receptors could also indicate a group of activated immune cells, suggesting that IHC test with a larger panel may reveal more comprehensive results (25,31).

Conclusions

In this study, we discovered TIM-3 expression on NSCLC cancer cells and TILs. We also found a synergistic expression pattern of TIM-3, PD-1 and PD-L1 on NSCLC TILs. Furthermore, TIM-3 level on TILs was notably correlated with early postoperative recurrence and shortened survival time. More exploration needs to be conducted to reveal the mechanism behind.

Acknowledgments

Funding: This study was supported in part by a grant from National Natural Science Foundation of China (81802255), Shanghai Pujiang Program (17PJD036) and a grant from Shanghai Municipal Commission of Health and Family Planning Program (20174Y0131), National key research & development project (2016YFC0902300), Major disease clinical skills enhancement program of three year action plan for promoting clinical skills and clinical innovation in municipal hospitals, Shanghai Shen Kang Hospital Development Center Clinical Research Plan of SHDC (16CR1001A), “Dream Tutor” Outstanding Young Talents Program (fkyq1901), key disciplines of Shanghai Pulmonary Hospital (2017ZZ02012), grant of Shanghai Science and Technology Commission (16JC1405900).

Footnote

Conflicts of interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the committee of Medical University of Gdansk, Poland (ethical number 15–235). Written informed consent was obtained from the patient for publication of this manuscript and any accompanying images.
