A pilot study of the ultrathin cryoprobe in the diagnosis of peripheral pulmonary ground-glass opacity lesions

Introduction

Ground-glass opacity lesions (GGOs) are characterized as an elevation of lung opacity on high-resolution computed tomography (HRCT) without obscurement of the bronchi and vessels (1). Any changes that induce partial airspace filling and thickening of the interlobular septa will lead to GGOs, as seen with interstitial pneumonia, inflammation, and preinvasive and invasive carcinoma (2,3). Classification of GGOs into pure and mixed types is made according to whether there is involvement of solid components (4). Pulmonary GGOs require unique consideration apart from solid lesions, because they are more likely to be malignant yet paradoxically indicate a better prognosis (5). The unique structures of pulmonary GGOs have also challenged the effectiveness of traditional non-surgical diagnostic tools that have been widely used for solid lesions.

Transthoracic needle aspiration (TTNA), despite having a diagnostic sensitivity of 90% for lung cancer (6), may not be very efficient in the diagnosis of GGOs. Apart from the multiple complications induced by TTNA (7), problems are posed by the small size of GGOs, that they appear to change position with respiratory motion, and their loose structures are easily obscured by bleeding; all of these features increase the difficulty of a second biopsy. Advanced bronchoscopy, including endobronchial ultrasound (EBUS), virtual bronchoscopic navigation (VBN), and guide sheath (GS), have been conducted to improve the diagnostic yield of GGOs (8-11). Cryobiopsy, which has been commonly used to identify interstitial pulmonary diseases and endobronchial tumors, presented unique value in collecting large and well-preserved specimens, thus expanding its diagnostic scope to peripheral pulmonary lesions (PPLs) (12-15). But until now, study has not been conducted to explore the value of transbronchial cryobiopsy (TBCB) for diagnosing peripheral pulmonary GGOs.

We innovatively used an ultrathin cryoprobe, with an outer diameter of 1.1mm, incorporated with VBN or electromagnetic navigation bronchoscopy (ENB), as well as EBUS-GS and X-ray fluoroscopy to diagnose peripheral pulmonary GGOs. As far as we know, this was the first time the ultrathin cryoprobe has been clinically applied for this diagnostic purpose. We present the following article in accordance with the STARD reporting checklist (available at http://dx.doi.org/10.21037/tlcr-20-957).

Methods

Participants

From October 2018 to November 2019, 20 consecutive patients with 23 GGOs that underwent TBCB by the ultrathin cryoprobe in the Shanghai Chest Hospital were prospectively recorded and retrospectively analyzed. Inclusion criteria: (I) patients >18 years-old with GGOs suspicious of malignancy. (II) The GGOs were located at inferior segmental bronchus. Exclusion criteria: (I) GGOs with endobronchial concomitant. (II) Patients with contraindications to bronchoscopy, such as bleeding diathesis, anticoagulation treatment, severe cardiopulmonary dysfunction, pregnancy, etc. (III) Patients’ refusal of this intervention. The protocol was approved by the local ethics committee of the Shanghai Chest Hospital (KS1829). All patients provided written informed consent. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki.

Each patient underwent HRCT before bronchoscopy to evaluate lesion size, lobar location, bronchus sign, nodule numbers, and the proportion of GGO component. Lesion size was defined as the longest diameter on the largest section of HRCT. The ratio of GGO component refers to the diameter of a GGO element attenuated at the mediastinal window compared to the diameter of the lesion at the lung window. Bronchus sign describes the positional relationship of the lesion and nearby bronchus on HRCT, and a lesion with a bronchus directly leading into it is defined as a positive bronchus sign.

Patients underwent bronchoscopy with general anesthesia. Scanning data of the HRCT were transferred into a LungCare navigation system (LungCare Medical Technologies Ltd., Inc., Suzhou, China) to construct virtual image and determine the biopsy route before insertion of the bronchoscope. We routinely applied VBN and ENB in accordance with the previously reported instructions (16). We adopted 3 kinds of modalities, as shown in Figure 1. The standard bronchoscope (BF-1T260 or BF-1TQ290, Olympus, Tokyo, Japan) was incorporated with a K-203 GS (Olympus) and an UM-S20-20R probe (Olympus). The thin bronchoscope (BF-P290 or BF-P260F, Olympus), was incorporated with a K-201 GS (Olympus) and an UM-S20-17S probe (Olympus). The ultrathin bronchoscopy (UTB, BF-XP290, Olympus) was performed without EBUS or GS. Navigation (VBN or ENB) and bronchoscopes were applied according to individual judgment of the operators. Once the bronchoscope reached the targeted bronchus, the combined ultrasound probe and GS were inserted, and their position and orientation were adjusted under the fluoroscope, until EBUS images of the GGOs were able to be obtained.

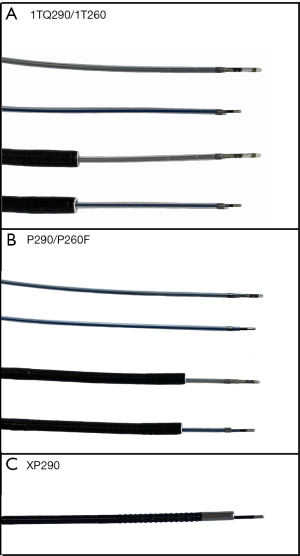

Figure 1 Different assembly of bronchoscope, endobronchial ultrasound (EBUS), guide sheath (GS), and ultrathin cryoprobe. (A) The standard bronchoscope (BF-1TQ290/BF-1T260, distal end outer diameter 5.9 mm, working channel 3.0 mm), EBUS (UM-S20-20R, outer diameter 1.7 mm), GS (K-203, outer diameter 2.55 mm), and the ultrathin cryoprobe (outer diameter 1.1 mm) were used together. (B) The thin bronchoscope (BF-P290/BF-P260, distal end outer diameter 4.2 mm, working channel 2.0 mm) was engaged with EBUS (UM-S20-17S, outer diameter 1.4 mm), GS (K-201, outer diameter 1.95 mm), and the ultrathin cryoprobe. (C) The ultrathin bronchoscope (UTB, BF-XP290, Olympus, distal end outer diameter 3.1 mm, working channel 1.2 mm) was directly combined with the ultrathin cryoprobe.

The ultrasound signal was recorded as “Blizzard sign” and “Mixed blizzard sign”. The blizzard sign usually appeared at pure GGOs, as an increase in intensity and radius of the whitish acoustic shadow of the normal lung tissue (>1 cm) (17,18). The mixed blizzard sign appeared in mixed GGOs as a combination of blizzard sign and a diffuse heterogeneity scattered with hyperechoic dots, linear arcs, and vessels (17). We divided the lesions into 3 groups, “within”, “adjacent to”, and “invisible”, by the relationship between the probe position and the localization of the lesions (19). If the GGO was invisible on the EBUS image, biopsy would be applied under navigation bronchoscopy with fluoroscopic guidance.

The ultrasound probe would be withdrawn after localizing the targeted lesions, then a 1.1 mm cryoprobe (Erbe, Tuebingen, Germany) was inserted, and after freezing for 3–5 s, it was removed with a specimen inside it. The cryoprobe was small enough to be removed from the working channel of the thick GS (K-203), leaving the standard bronchoscope and GS in situ. However, for a thin bronchoscope, the cryoprobe would be removed en bloc with the thin GS (K-201) and a specimen. For UTB, the cryoprobe worked alone without EBUS or GS due to its very small working channel; the cryoprobe and the UTB were removed together out of the airway (Figures 2-4). The procedure was repeated several times from the remote to distal ends of the targeted bronchus based on former localization under fluoroscopic guidance, without being rechecked by EBUS. The frozen specimens from each lesion were thawed first in saline at room temperature, next transferred to formalin for fixation, and then collected as one sample; the sample size was recorded. After TBCB, if deemed necessary by the operators, forceps, bronchial brush, and sheath wash were introduced for histological and cytological examination.

Figure 2 Representative case 1 of (TBCB) using the standard bronchoscope (BF-1TQ290) with electromagnetic navigation bronchoscopy (ENB). (A) The axial section of high-resolution computed tomography (HRCT) showed that the GGO was located in the apical segment of the right upper lobe (RUL). (B) The coronal plane of HRCT showed where the GGO was located. (C) The ENB presented a real-time interface where the tracking wire reached the target. (D) The endobronchial ultrasound (EBUS) image showed the blizzard sign. (E) The location of the EBUS probe (UM-S20-20R) was visualized by X-ray fluoroscopy to confirm its arrival. (F) After confirming arrival of the bronchoscope, the EBUS probe was retracted and cryobiopsy was performed via the K-203 GS. (G) H&E staining of the specimen with the magnification of ×4. (G1) Magnification of the right upper corner of the specimen showed acinar adenocarcinoma (magnification, ×20). (G2) Magnification of the left lower corner of the specimen displays adenocarcinoma with lepidic pattern (magnification, ×20).

Figure 3 Representative case 2 of transbronchial cryobiopsy (TBCB) using the thin bronchoscope (BF-P290) with ENB. (A) The high-resolution computed tomography (HRCT) axial section showed that the ground-glass opacity (GGO) was located in the apical segment of the right upper lung (RUL). (B) The HRCT coronal plane showed where the GGO was located. (C) Electromagnetic navigation bronchoscopy (ENB) showed the real-time interface where the positioning wire reaches the target. (D) Endobronchial ultrasound (EBUS) displayed “Blizzard sign”. (E) Location of the ultrasound probe (UM-S20-17S) was visualized by X-ray to confirm its arrival. (F) After confirming the arrival of bronchoscope, the ultrasound probe was retracted and cryobiopsy was performed via the K-201 GS. (G) Hematoxylin and eosin (H&E) staining of the specimen with the magnification of ×2. (G1) Magnification of the pointed area displays the transition from normal pulmonary alveoli to atypical hyperplastic area (magnification, ×10). (G2) Magnification of the left lower parts of the specimen showed adenocarcinoma with lepidic pattern (magnification, ×10).

Figure 4 Representative case 3 of transbronchial cryobiopsy (TBCB) using the ultrathin bronchoscope (UTB) (BF-XP290) guided by virtual bronchoscopic navigation (VBN). (A) The high-resolution computed tomography (HRCT) axial section showed a pure ground-glass opacity (GGO) located in the anterior segment of the left upper lobe, with blood vessel involvement. (B) The HRCT coronal plane showed the GGO location. (C) Bronchial path and virtual bronchography of VBN. (D) The ultrathin cryoprobe was inserted into the target bronchus under the direct vision of the UTB. (E) Cryobiopsy was conducted under X-ray fluoroscopy. (F) Hematoxylin and eosin (H&E) staining of the specimen with the magnification of ×4. (F1) Enlarged picture displays atypical hyperplasia (magnification, ×20). It was confirmed as adenocarcinoma in situ by surgery.

The final diagnosis was confirmed by comprehensive analysis of evidence, including histology (surgery, TBCB, forceps), microbiology, and clinical follow-up. The diagnostic yield of TBCB was defined as the number of GGOs correctly diagnosed by cryobiopsy out of the total number of GGOs that received cryobiopsy, which means either a definitive malignancy, or a specific benign result (e.g., granuloma, fibrosis, inflammation, or definitive microbiological evidence), both of which should be consistent with the clinical outcomes of a >6-month follow-up. If the sample was non-specific (e.g., bronchial mucosa and normal lung tissue), it was considered to be unqualified.

Statistical analysis

Descriptive statistics were recorded as frequency, percentage, median (range), and mean ± standard deviation. Factors affecting the diagnostic yield were evaluated by Fisher’s exact test. Univariate analysis was adopted to identify the parameters that variated the diagnostic yield of TBCB. All P values were bilateral. A P value <0.05 was considered statistically significant. The statistical analysis was conducted within SPSS version 20.0 statistical software (IBM, Armonk, NY, USA).

Results

A total of 20 participants with 23 GGOs (12 pure GGOs and 11 mixed GGOs) received TBCB, of which 3 patients underwent biopsy at 2 sites (Table 1). The average diameter of the GGOs was 21.58±11.88 mm. All GGOs were found to be bronchus sign positive, of which 21 had ground-glass composition of >50%, and 14 (10 pure GGOs and 4 mixed GGOs) could not be visualized by fluoroscopy.

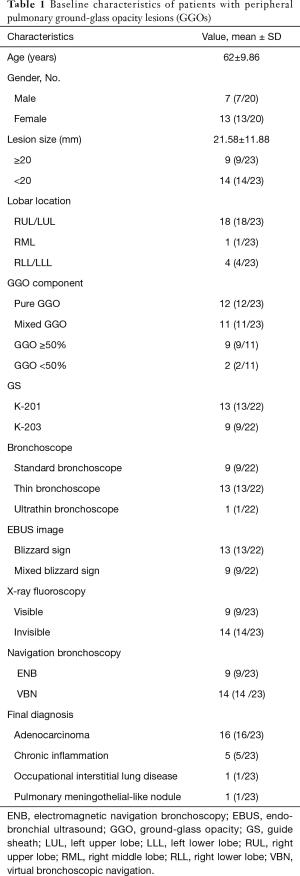

Table 1 Baseline characteristics of patients with peripheral pulmonary ground-glass opacity lesions (GGOs)
Full table

We adopted ENB in 9 lesions and VBN in 14 lesions. Except for 1, which underwent TBCB without EBUS, all the other 22 lesions (11 pure GGO and 11 mixed GGO) were identified by EBUS, and all the ultrasound probes were located “within” the GGOs. Of the 11 pure GGOs revealed on EBUS, 10 showed blizzard sign, and 1 showed mixed blizzard sign. The mixed blizzard sign may have resulted from the bronchial lavage with 20 mL normal saline having been conducted before TBCB in this case, and the residual water in the lesion changed the ultrasound image. Of the 11 mixed GGOs, 8 showed the mixed blizzard sign, and 3 showed the blizzard sign, which was probably due to the probe being positioned in the vicinity of the GGO component.

Each lesion underwent 3 [1–7] cryobiopsies, and we acquired 3 [1–5] pieces of specimen from each. The average sample size was 3.65±1.27 mm. Non-specificity was shown on 2 samples, and the qualified rate was 91.30% (21/23). There were 19 GGOs diagnosed by TBCB, with a diagnostic yield of 82.61% (19/23), of which 12 were adenocarcinoma, 5 were chronic inflammation, 1 was occupational interstitial lung disease, and 1 was a pulmonary meningothelial-like nodule. Of the 4 cases undiagnosed by TBCB, 2 were characterized as chronic inflammation by TBCB but turned out to be adenocarcinoma (1 indicated adenocarcinoma by cytology, and 1 was diagnosed by clinical and radiological manifestation), 2 provided unqualified samples, 1 was diagnosed as adenocarcinoma by clinical and radiological manifestation, the other presented nuclear atypia by a second biopsy (cytology and pathology), and was eventually diagnosed as adenocarcinoma based on clinical and radiological evidence (Table 1). Of the 16 cases finally recognized as adenocarcinomata, 12 underwent TBCB as well as cytology (brush and/or sheath wash), of which 5 were diagnosed by both of them, 3 were undiagnosed by either TBCB or cytology, 3 were diagnosed by TBCB but not cytology, and 1 was identified by cytology but not TBCB. The diagnostic sensitivity of cytology was 50% (6/12), while it was 75% (12/16) for TBCB. There were 3 cases, whose final diagnosis were adenocarcinomas, that adopted forceps as well as TBCB simultaneously, of which 2 were identified by both of them, and 1 was diagnosed by TBCB but not forceps biopsy.

Univariate analysis was adopted to test multiple factors that may have affected the diagnostic yield. Although there is a tendency for large GGOs (GGOs ≥20 mm) and fluoroscopically visible GGOs to have a higher diagnostic yield, the diagnostic yield was not altered significantly by any of the variables, including lesion size (GGOs ≥20 mm and GGOs <20 mm), navigation (VBN and ENB), fluoroscopic visibility (visible and invisible), GGO component (pure GGOs and mixed GGOs), and type of GS (K-201 and K203) (Table 2).

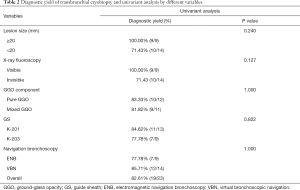

Table 2 Diagnostic yield of transbronchial cryobiopsy and univariant analysis by different variables
Full table

Complications

No pneumothorax or severe hemorrhage were presented in this study.

Discussion

It is very difficult to diagnose GGOs, as compared to solid nodules, by transbronchial lung biopsy (TBLB). Previous studies have reported that the diagnostic yield of TBLB with guided instruments for GGOs is 57–69% (8,9,11,20). We innovatively adopted TBCB using a 1.1 mm ultrathin cryoprobe, engaged with navigation bronchoscopy (VBN/ENB), EBUS-GS and fluoroscopy, to achieve a diagnostic yield of 82.61%. The majority of cases we enrolled was small solid nodules less than 30mm, and 60.87% (14/23) of them were less than 20mm; Of the 23 GGOs, 21 were GGO dominated lesions, including 12 pure GGOs; All of them were risk factors for a poor diagnostic yield (20,21). As a result, the powerful diagnostic efficacy of the ultrathin cryoprobe was prominently illustrated by the cases that otherwise were hard to operate and deemed a poor diagnostic yield by conventional TBLB.

Yarmus et al. conducted an animal study to evaluate the efficacy of the 1.1mm ultrathin cryoprobe and found it provided comparable specimens with conventional TBCB in a comparable freezing period, of a much larger size than those obtained by TBLB (22). In this study, the average sample size we collected from each lesion was 3.65±1.27 mm, with well-preserved cellular architecture, and almost devoid of crush artifacts. The large samples provided by TBCB are very helpful in making histologic diagnosis, especially for benign lesions and highly differentiated malignancies with minimal histologic heterogeneity, as they are capable of presenting a mix of pathology types (Figure 2G), along with normal tissues that contrast the pathological area (Figure 3G). A previous study indicated that malignancy predicted a higher diagnostic yield (23). In this study, the diagnostic yield of benign GGOs was 100% (7/7), and the diagnostic yield of malignant GGOs was 75% (12/16), the difference was not statistically significant. TBCB may be more competent in diagnosing GGOs than TBLB, since they usually suggests an early stage of malignancy with minimal changes in histology that not easy to be confirmed (2,4). For example, there was 1 case that was identified as slightly atypical by TBLB, which was insufficient for a definitive diagnosis, but was diagnosed as a highly differentiated adenocarcinoma by TBCB.

Hemorrhage and pneumothorax are major complications of conventional cryoprobe and it has reportedly induced more bleeding than forceps (14,24-26). We must stress that they are also considerable problems for the ultrathin cryoprobe. The specimen size obtained by the cryoprobe is increasing with increased freezing time, while larger specimen means severer damage to the lung tissue and more complications be indued. In this study, we set the freezing time at 3–5 s to make a balance between large samples and less complications. In large-scale application, however, an optimum freezing time is still in need to explore. Notably, unlike the conventional cryoprobe needed to be withdrawn along with the bronchoscope after biopsy and left the airway non-surveilled (27), the ultrathin cryoprobe can be retreated from the working channel of a standard bronchoscope or a thin bronchoscope, so that the operator can earlier monitor and quickly handle the bleeding. What’s more, the ultrathin cryoprobe can easily bend and extend to the distal bronchus, facilitating peripheral pulmonary biopsy. Remarkably, we adopted 3 kinds of modalities according to different situations as they presented. For a standard bronchoscope, the cryoprobe was small enough to be removed from the working channel of the K-203 GS, retaining the bronchoscope and GS in situ, so the GS could act as a locator to provide a simple and precise avenue for repetitive biopsy without requiring constant location verification by EBUS. The GS also blocked the airway and prevented potential bleeding; no additional insertions of a rigid bronchoscope or balloon catheter was needed. The thin bronchoscope was useful in dealing with remote targets, and although it required en bloc removal of the ultrathin cryoprobe and the K-201 GS, the bronchoscope remained on guard, which enabled a quick handling of potential complications. Additionally, there was 1 case in which we engaged the ultrathin cryoprobe with UTB under the guidance of VBN and fluoroscopy. The ultrathin cryoprobe is the first cryoprobe which can be incorporated with UTB. Both the UTB and the cryoprobe were very thin, and flexible enough to handle the complicated and sharp angles of the far distal left superior bronchus where the GGOs were located. The advantages offered by the combination of the UTB and cryoprobe allowed us to nearly conduct a direct vision biopsy.

In the univariant analysis, neither lesion size, fluoroscopic visibility, GGO component nor navigation system were identified as risk factors for a poor diagnostic yield. While GGOs ≥20 mm and fluoroscopically visible GGOs trend to yield higher than GGOs <20 mm and fluoroscopically invisible GGOs. When compared the diagnostic yield of the ultrathin cryoprobe with previous records of TBLB for diagnosing GGOs <20 mm, the biopsy forceps yield 56.3–65.4%, combined with guided bronchoscopy (8,9,11,20), however, we yielded higher with 71.43%. Fluoroscopically invisible GGOs often contribute to a lower diagnostic yield (20), because X-ray is unsubstituted for instructing biopsy instruments after EBUS was retreated (28). Meanwhile, GGOs beyond EBUS detection often frustrated in biopsies (8,29). Navigation bronchoscopy, including VBN and ENB, facilitate confirmation of the targets by visualizing GGOs with image reconstruction and navigating bronchoscope to targeted bronchus, thus improving the diagnostic yield (9). In this study, 60.87% (14/23) of GGOs were fluoroscopically invisible, but with the help of navigation bronchoscopy, all GGOs, except 1 that did not adopt EBUS (21/22), were localized by EBUS. Moreover, we selectively adopted ENB for GGO-predominant lesions (GGO ≥50%), and lesions that were difficult to operate on. There were 9 GGOs which adopted ENB, of which 5 were fluoroscopically invisible, 8 were GGO-predominant; and the diagnostic yield was 77.78%. A comprehensive use of navigation, EBUS, and fluoroscopy made up for the deficiency of using only 1 single technology.

Cytology examination, with a diagnostic sensitivity of 50%, was not very effective for detecting malignancy in this study, because GGOs, that seldom infiltrate bronchus, made it difficult for malignant cells to be retrieved by the usual brushing and sheath wash. It is usual to adopt cytology after TBCB to improve its sensitivity, since TBCB penetrates the bronchus and destroys the integrity of GGOs, which makes the retrieval of cytological samples easier. Cytology is an essential complement for histology, as highlighted by 1 case that remained undiagnosed by TBCB as a cavitary lesion, yet presented as malignancy in brushing and cytopathology of sheath wash. Cavitary lesions with very little cellular structure were not easily localized, while brushing expanded the sampling area, and washing conducted after TBCB increased the probability of accurate lesion identification.

Our study involved some limitations. Firstly, this was a retrospective study with a limited sample size. Large-scale research is needed to further explore the diagnostic value and safety profile of the ultrathin cryoprobe. Secondly, bronchoscopes and sampling devices (e.g., cryoprobe, biopsy forceps, brush and sheath) were not fully randomized but applied based on the operator’s individual experience, which made it difficult to confirm the diagnostic efficacy of each devices and their complementarity. Randomized tests are required to confirm whether the ultrathin cryoprobe is more efficient than forceps. Lastly, as a pilot study, we mainly adopted navigation bronchoscopy, EBUS and fluoroscopy for TBCB, but we also changed bronchoscopes, guide sheath and navigation according to different situations to explore the best combination. As a result, it is more difficult to deprive of the multiple confounding factors and find out the variables that had a definitive effect on the diagnostic yield. A large-scale, multi-center, randomized study should be arranged to explore the variables that altered the diagnostic yield.

Conclusions

We confirm that TBCB using the novel ultrathin cryoprobe can be engaged with a variety of bronchoscopes and guided instruments, to carry out peripheral pulmonary GGOs diagnosis. This is a feasible and safe approach, with a high diagnostic yield and few complications, especially for patients who are suspected to be at an early stage of pulmonary cancer.

Acknowledgments

Funding: This work was supported by National Key R&D Program of China (2017YFC0112700), Shanghai Municipal Health and Medical Talents Training Program (2018BR09), Shanghai Municipal Education Commission-Gaofeng Clinical Medicine Grant Support (20181815).

Footnote

Reporting Checklist: The authors have completed the STRARD reporting checklist. Available at http://dx.doi.org/10.21037/tlcr-20-957

Data Sharing Statement: Available at http://dx.doi.org/10.21037/tlcr-20-957

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tlcr-20-957). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The protocol was approved by local ethics committee of Shanghai Chest Hospital (KS1829). All patients provided written informed consent before undergoing the procedure. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
