Integrating radiomics and deep learning for enhanced prediction of high-grade patterns in stage IA lung adenocarcinoma

Introduction

Current epidemiological data show that lung cancer remains the leading cause of human mortality worldwide (1). Adenocarcinoma, the most common subtype of lung cancer, is characterized by significant heterogeneity in its histological features. In 2011, the International Association for the Study of Lung Cancer (IASLC), American Thoracic Society (ATS), and European Respiratory Society (ERS) categorized invasive pulmonary non-mucinous adenocarcinomas into five pathological subtypes: lepidic, acinar, papillary, micropapillary, and solid. These subtypes were histologically graded according to their predominant features and recorded at 5% of the incremental semi-quantitative recording (2). Micropapillary and solid subtypes were defined as high-grade patterns (HGPs) due to their poor prognosis (3). Subsequent studies later identified complex glandular patterns (cribriform and fused glands), which was associated with high mitotic grade, tumor necrosis, and lymph node metastasis. This growth pattern had a similar prognosis to the micropapillary and solid subtypes and was an independent prognostic factor for the poor recurrence-free survival and overall survival (4-7). In 2020, IASLC introduced a novel grading system that included complex glandular patterns in the HGP category and defined tumors with ≥20% HGPs (micropapillary, solid, complex gland) as poorly differentiated cancers (8). The new grading system was adopted by the World Health Organization (WHO) Classification of Thoracic tumors (5^th edition) in 2021 (9), and its more favorable prognostic stratification value has been validated in several large cohorts (10-12).

Several recent studies addressing surgical options for smaller diameter peripheral lung cancers have favored segmentectomy over lobectomy (13,14). However, in patients undergoing limited resection, a micropapillary component of 5% or greater was correlated with recurrence (15). Even a small percentage of micropapillary, solid, and complex glandular patterns can adversely affect recurrence and prognosis (16-19). Therefore, for lung adenocarcinomas with HGPs, undergoing more extensive resection and systematic mediastinal lymph node dissection may be necessary. In addition, a grading system based on HGPs can also be effective in stratifying patients who need to receive adjuvant chemotherapy (10,20). Therefore, it is essential to accurately identify the presence of HGPs preoperatively. Currently, preoperative biopsies and frozen sections do not provide a complete response to the histological differentiation of lung adenocarcinoma due to the inadequacy of sampling and poor quality of frozen sections (21). The detection of HGPs mainly relies on paraffin-embedded histopathology after complete tumor resection (9), which, however, is invasive and lagging. Therefore, it is urgent to develop a new technique that can effectively identify the presence of HGPs before treatment to guide clinicians through the entire diagnostic and treatment process and predict recurrence survival of patients.

Radiomics is a technique that uses machine learning to integrate features for prediction after extracting high-throughput features from medical images. It has been widely used in the field of lung cancer for screening, staging, recurrence prognosis, and prediction of treatment response (22,23). While deep learning is different from traditional radiomics, it is a neural network with multiple hidden layers that can utilize complex multi-layer neural network architectures to create more intrinsically effective deep features. It has recently been shown that fusion models combining radiomics features and deep learning features can improve preoperative diagnosis of high-risk subtypes of lung cancers (24). So, radiomics features and deep learning features may be complementary at some levels. Although some studies predicted certain high-risk subtypes by radiomics or deep learning (24-27), there are currently no studies predicting the presence of complete HGPs (micropapillary, solid, complex gland) according to the novel IASLC classification. If the identification works, the clinician may favor a more extensive surgery or more aggressive adjuvant treatment for the tumor with HPGs to avoid the recurrence.

In this study, we aimed to predict the presence of HGPs in invasive pulmonary non-mucinous adenocarcinoma based on preoperative computed tomography (CT) images for better treatment development and monitoring strategies. In the meantime, we explored the integration of both radiomics features and deep learning features to enhance prediction performance. We present this article in accordance with the TRIPOD reporting checklist (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-24-995/rc).

Methods

Inclusion and exclusion criteria

The study subjects were patients with lung adenocarcinoma who were admitted to Taizhou Hospital of Zhejiang Province from January 2023 to January 2024 for surgical treatment. The inclusion criteria were as follows: (I) patients with complete surgical resection and pathologically confirmed invasive adenocarcinoma (IAC) cancer; (II) Pathology reports containing complete percentages of each HGP; (III) chest CT scans performed 2 weeks prior to surgery, and digital image and communication in medicine (DICOM) files of the CT images were available; and (IV) patients with clinical staging of stage IA. Initially, 487 patients were included. The exclusion criteria were as follows: (I) pathologically confirmed variant adenocarcinoma, such as invasive mucinous adenocarcinoma, colloid carcinoma, etc., or mixed lung carcinoma containing other lung cancer types (n=24); (II) pathologically confirmed to contain multiple primary invasive lung adenocarcinoma (in order to avoid the clustering effect) (n=9); (III) poor image quality due to severe respiratory artefacts, etc. (n=19); (IV) CT image layer thickness >2.5 mm (n=27); and (V) preoperative history of radiotherapy and chemotherapy (n=5). Finally, 403 patients were enrolled in our study.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the Ethics Review Committee of Taizhou Hospital, Zhejiang Province (No. KL20240438), and the requirement for informed consent has been waived due to the retrospective nature of the study.

Study cohort

The 403 patients were split into three cohorts using the inclusion and exclusion criteria. Patients admitted from January 2023 to October 2023 were defined as the training and internal validation cohort for improvement and evaluation of our models. The training and validation cohorts were randomly split in a 7:3 ratio. Patients admitted from November 2023 to January 2024 were defined as the test cohort. It should be mentioned that throughout the experiment, we transferred all patients with CT layer thickness of 2.5 mm (n=32) into the training and validation cohort to the test cohort for testing the generalization performance of the model under high automation. The specific study process is shown by the flowchart in Figure 1.

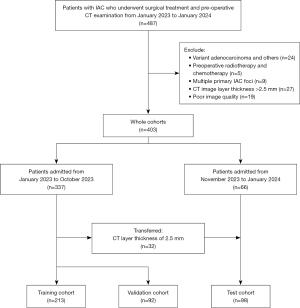

Figure 1 Flowchart showing the recruiting process. CT, computed tomography; IAC, invasive adenocarcinoma.

CT data acquisition

Chest CT images were obtained from two different scanners: the Discover CT750 HD (General Electric, Boston, MA, USA) and the UCT 530 (Shanghai United Imaging Medical Co., Ltd., Shanghai, China). All imaging data were taken with a layer thickness ≤2.5 mm. All CT scans were downloaded from the image archive and communication system as DICOM images. Patients’ personal information, including name and hospital number, were removed from the CT images.

Clinical and radiological characteristics

The electronic medical records of the patients were reviewed to collect clinical characteristics relevant to the study including age, gender, smoking history, tumor stage, site, and mode of surgery. Tumor staging was performed according to the IASLC tumor-nodes-metastasis (TNM) staging system version 8 (28). In addition, two radiologists with more than 10 years of experience and expertise related to CT diagnosis of lung adenocarcinoma, recorded each of the nine radiological features without the clinical and pathological information: max diameter, lobulation sign, spiculation sign, vacuole sign, air bronchogram sign, vascular convergence sign, pleural retraction sign, density and consolidation/tumor ratio (CTR). The controversial parts were discussed until a consensus was reached. The interpretation of CT radiological features is described in Table S1.

Histopathology evaluation

Pathological specimens were routinely fixed in 10% formalin and embedded in paraffin. Tissue sections of the maximum section of the tumor, 4 µm thick, were stained with hematoxylin and eosin (HE). Two pathologists with more than 10 years of experience in diagnostic lung pathology, without knowledge of clinical and radiological information, made pathological diagnoses of all 403 patients. Consensus on controversial diagnoses was reached through discussion. Diagnoses were described with reference to HGP in the novel IASLC grading system (8) and the percentage of HGPs was calculated in 5% increments. All patients were divided into two groups: the HGP⁺ group (percentage of HGP ≥5%) and the HGP⁻ group (percentage of HGP <5%). The novel IASLC grading system of invasive lung adenocarcinoma is described in Table S2.

Region of interest (ROI) segmentation

ROIs within the training and validation cohorts were outlined by one radiologist with more than 10 years of experience, without the pathological and clinical information. Tumor contours were manually outlined in the horizontal cross-section of the CT images by ITK-SNAP software (version 3.8.0; http://www.itksnap.org/).

However, the use of manual delineation for such tasks significantly restricts its applicability in clinical settings due to its time-consuming nature. The study shows that the deep learning-based auto-segmentations has achieved acceptable accuracy in multi-site tumor analysis (29). So, we leveraged the annotated data from the training cohort to train our segmentation algorithm, subsequently applying it to delineate the ROI areas within the test cohort’s data. Detailed training methodologies are delineated in Appendix 1.

Feature extraction and selection

From the delineated ROI regions, we extracted a total of 256 deep learning features and 1,836 handcrafted features. The deep learning features were derived through transfer learning algorithms, specifically from the penultimate layer (Avgpool) of ResNet101, capturing a 2,048-dimensional feature space. To mitigate the risk of overfitting, we applied principal component analysis (PCA) to reduce this dimensionality to 256. The handcrafted features encompassed shape, first-order statistics, global texture, and local texture metrics. The training process for the deep learning model and the feature extraction methodology are further elaborated in Appendices 2,3, respectively.

To address the model’s complexity and minimize the overfitting risk inherent in high-dimensional data, we initially standardized all features using z-score normalization. This was followed by a multifaceted feature screening process. The process began with t-test-based P value calculations, selecting features with P values less than 0.05 for further analysis. We then assessed feature redundancy through Pearson correlation coefficient, opting to retain a single feature from pairs with correlations above 0.9, thus implementing a greedy recursive elimination strategy to diminish redundancy. Further refinement of our feature set was achieved using the least absolute shrinkage and selection operator (LASSO) regression, which effectively minimized the impact of less relevant features. The optimal regularization parameter λ was identified via 10-fold cross-validation.

Development and assessment of models

For the adjustment of model hyperparameters, we employed 5-fold cross-validation on the training dataset, utilizing the Gridsearch algorithm for the optimization of hyperparameters. The parameters showing the best median performance were chosen for the final model’s training. After the LASSO-based feature selection, the deep learning radiomics (DLR) model was developed by both linear [logistic regression (LR) and support vector machine (SVM)] and tree-based models (RandomForest, ExtraTrees, XGBoost), in addition to a deep learning-based multi-layer perceptron (MLP) model. The deep learning model was represented by the output probabilities generated by the CNN. For the radiomics, we exclusively utilized handcrafted features for machine learning algorithm modeling, following a procedure analogous to the DLR model. In addition, the diagnostic accuracy of our models was gauged by receiver operating characteristic (ROC) curves. Calibration performance was evaluated through calibration curves and Hosmer-Lemeshow (HL) tests to assess the models’ calibration quality. Decision curve analysis (DCA) was employed to determine the clinical utility of our predictive models.

Statistical analysis

Our analyses were performed using Python version 3.7.12 and statsmodels version 0.13.2. Machine learning model development was facilitated by the scikit-learn version 1.0.2 interface. Deep learning training was conducted using an NVIDIA 4090 GPU, within the MONAI 0.8.1 and PyTorch 1.8.1 frameworks.

Results

Clinical and conventional radiographic characteristics

A total of 305 patients were randomly assigned to the training and validation sets in a 7:3 ratio. The training set consisted of 213 patients (129 in HGP⁻ group, 84 in HGP⁺ group). The validation set totaled 92 patients (62 in HGP⁻ group, 30 in HGP⁺ group). The test set comprised 98 patients (61 in HGP⁻ group, 37 in HGP⁺ group). The clinical baseline characteristics of the 403 patients in the training, validation, and test sets are shown in Table 1. All clinical baseline characteristics did not differ statistically between the data sets.

Multivariable analysis showed that density [odds ratio (OR) =2.27; 95% confidence interval (CI): 1.23–4.21; P=0.009] and CTR (OR =2.50; 95% CI: 1.54–4.04; P<0.001) were independent risk factors of HGP⁺. The detailed results of univariate and multivariable analysis are shown in Table S3. However, considering the subjectivity of decision-making for relevant radiological features and to improve model automation, clinical and radiological features were not included in the model analysis in this study.

Feature analysis and classifier selection

Before constructing the model, we need to screen for optimal features to improve the model’s accuracy and avoid over-fitting. So, we utilized the LassoCV method, incorporating 10-fold cross-validation, to select features. After LASSO feature selection, we finally extracted seven deep features and 10 radiomics features from 256 deep learning features and 1,836 radiomics features. These features have significantly higher weights. This process is graphically illustrated in Figure 2A-2C. For the optimization of hyperparameters within the model, we conducted 5-fold cross-validation on the training dataset and applied the Grid search algorithm as illustrated in Figure 2D.

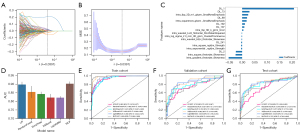

Figure 2 The process of feature selection and construction of the DLR model for prediction of HGPs. The LASSO method (A) across 10-fold cross-validation phases (B). The retained features (C) for the model construction. The outcomes of 5-fold cross-validation (D) for hyperparameter optimization via the Gridsearch algorithm. ROC results for DLR model in the training (E), validation (F), and test (G) cohorts. AUC, area under the curve; CI, confidence interval; DL, deep learning; DLR, deep learning radiomics; HGP, high-grade pattern; LASSO, least absolute shrinkage and selection operator; LR, logistic regression; MLP, multi-layer perceptron; MSE, mean squared error; ROC, receiver operating characteristic.

To select the most suitable classifier for the model construction, we applied six classifiers and compared their performances in each cohort. Finally, in the validation cohort, XGBoost outperformed other models with an area under the curve (AUC) of 0.862 (95% CI: 0.779–0.944), demonstrating its superior ability in the classification of tumors with and without HGPs. Random Forest, ExtraTrees, and LightGBM also presented competitive results, with AUCs of 0.837, 0.793, and 0.834. However, LR and MLP lagged slightly behind with AUCs of 0.752 and 0.748. The detailed results are shown in Figure 2E-2G. XGBoost’s performance in the validation cohort underscores its efficacy in predictive modeling. This suggests that XGBoost may be the most suitable classifier in the challenge of identifying whether the tumor contains HGPs. So, we chose it as the standard classifier to construct the fusion model in each cohort for further comparative analysis.

Model construction and performance comparison

After selecting XGBoost as the standard classifier, the fusion model combining radiomics and deep learning features denoted as DLR, demonstrated superior predictive performance across all cohorts. In the training, validation, and test cohort, DLR achieved impressive AUCs of 0.983 (95% CI: 0.969–0.996), 0.862 (95% CI: 0.779–0.944), and 0.832 (95% CI: 0.744–0.920), which means the fusion model can effectively distinguish patients with or without HGPs. The ROC curves for different models across each cohort are shown in Figure 3A-3C. Details of the AUC, accuracy, sensitivity, and specificity of each model are presented in Table 2. For instance, in the test cohort, the DLR has a sensitivity of 0.649, a specificity of 0.902, a negative predictive value of 0.809, and a positive predictive value of 0.800. It means when the model identifies a tumor as HGP⁺ or HGP⁻, the probability that it matches the pathological result is more than 80%, which has exceeded any currently known model. These findings also underscore the potential of integrating radiomics features and deep learning features to enhance the predictive accuracy in this classification.

Figure 3 Comparison of performances of the radiomics model, deep learning model and DLR model applied to the three cohorts. ROC curves for different models across training (A), validation (B), and test (C) cohorts, offering a visual comparison of their diagnostic abilities. Calibration curves for different models in the training (D), validation (E), and test (F) cohorts. These curves are instrumental in understanding how well the predicted probabilities of the models match the actual outcomes. Different models’ decision curve in the training (G), validation (H), and test (I) cohorts. AUC, area under the curve; CI, confidence interval; DCA, decision curve analysis; DLR, deep learning radiomics; ROC, receiver operating characteristic.

For comparative analysis, we selected the best-performing classifiers based on their validation set performance to construct the other models. Detailed results for the radiomics model and deep learning model are provided in Appendices 4,5, respectively. In the training set, the discrimination performance of the fusion model outperformed the radiomics model (AUC: 0.983 vs. 0.886; DeLong’s test, P<0.001) and the deep learning model (AUC: 0.983 vs. 0.939; DeLong’s test, P=0.005). The fusion model was comparable to the deep learning model in the validation set (AUC: 0.862 vs. 0.870; P=0.79) and the test set (AUC: 0.832 vs. 0.814; DeLong’s test, P=0.59). Detailed results for DeLong’s test are shown in Figure S1.

The HL test is key for assessing a predictive model’s calibration. It compares predicted probabilities with actual outcomes. A higher HL statistic indicates better calibration, showing closer alignment between model predictions and observed outcomes. In our study, the DLR shows good coherence between model prediction and the actual observation, evidenced by HL test statistics of 0.886 and 0.845 in the validation and test cohorts, suggesting its high effectiveness in the prediction (Figure 3D-3F). Figure 3G-3I also illustrates the DCA for the training, validation, and test sets. These curves reveal that our fusion model provides a higher clinical benefit in terms of the identification between the tumor with and without HGPs.

Discussion

In this study, we attempted to develop an optimal model to predict HGPs in clinical stage IA invasive non-mucinous cancers. The results show that the fusion model, which utilizes the XGBoost classifier, exhibits stronger predictive performance in the training set (AUC: 0.983), validation set (AUC: 0.862), and test set (AUC: 0.832) compared to the single radiomics model or deep learning model. In addition, the good calibration curve and DCA curve also demonstrate its excellent consistency and clinical application value.

Although the novel IASLC grading system defines poorly differentiated invasive lung adenocarcinoma as HGPs ≥20% (8), studies by Nitadori et al., Wang et al., and Kadota et al. have all found that the smaller percentage of high-risk subtypes affects prognosis as well (15,18,19). It is the reason why we defined the presence of HGPs (≥5%) as the main predictive variable. Several studies have utilized frozen sections to diagnose high-risk subtypes, however, their sensitivity remained limited. For instance, Yeh et al. reported diagnostic sensitivities of 37% and 69% for micropapillary and solid patterns, respectively (30). Zhao et al. improved the sensitivity (from 56.8% to 81.1%) of diagnosis for micropapillary patterns by including the concept of a filigree pattern (31). In contrast, the radiology model we conducted not only provides more integrated sensitivity and specificity, but also avoids the invasiveness and latency, Moreover, it plays an important role in decision-making regarding the need for more extensive resection and more aggressive adjuvant therapy for patients.

Although some studies have predicted high-risk subtypes of invasive lung adenocarcinoma based on imaging, such as Zhou et al. who used radiomics to predict micropapillary/solid type based on 18-fluorine-fluorodeoxyglucose (¹⁸F-FDG) positron emission tomography (PET)/CT images (32), PET/CT is not as prevalent as CT for preoperative screening in the clinic, especially for early-stage lung cancers with small diameters. Secondly, the study did not limit the clinical staging to stage IA, and the guidance for the diagnosis and treatment of invasive lung adenocarcinoma at stage IA is more practical in clinical practice. He et al. used four machine learning algorithms: a generalized linear model (GLM), Naïve Bayes, SVM, and random forest classifiers, to predict the presence of micropapillary/solid phenotypes, which proved that a radiomics-based machine learning approach is a powerful prediction tool (33). However, the study’s AUC of each algorithm in the internal validation set was only 0.74, 0.75, 0.73, and 0.72, which is much lower than the AUC (0.862) in the validation set of our study. Therefore, we avoided the disadvantages mentioned above by limiting our prediction to lung cancers of clinical stage IA in preoperative CT images, which also demonstrated the potential value of our model for clinical applications.

It is worth mentioning that the test set in our study is a special dataset. The well-known human cost of outlining ROIs greatly restricts the clinical application of related techniques. To improve the clinical applicability and the degree of model automation, we used the developed auto-segmented VNet model in the test set. The average Dice coefficients in the training and validation sets are 0.900 and 0.836, respectively. The auto-segmentation algorithm not only avoids the burden of manual outlining but also demonstrates the automation of our predictive models. As we know, the more automated a model is, the more potential it will have for widespread clinical application.

In addition, the effect of different CT layer thicknesses on model efficacy is controversial. Park et al. concluded that there was no difference between different CT layer thicknesses in survival prediction of NSCLC (34), but the prediction performance of thick CT for lung adenocarcinoma with EGFR mutations was significantly lower than that of thin CT model in Li et al.’s study (35). In our study, there were more thick-layer CT images in the test set, which were transferred from the training and validation sets. The AUCs of the validation set vs. the test set for this were 0.862 vs. 0.832, with a slight but insignificant decrease in performance. This demonstrates that we still have the generalization ability on different thickness CT images when we achieve a high degree of automation by automatic segmentation.

Although we compared many algorithms, many of them are known as black box methods, which automatically select the data features that contribute most to high-performance outputs without providing easily interpretable implications of the results (36). Therefore, to investigate the deep learning models’ recognition abilities on various samples, we used the gradient-weighted class activation mapping (Grad-CAM) technique for visualization. Figure S2 illustrates Grad-CAM’s application, highlighting the activations in the final convolutional layer relevant to the results. This helps identify image regions that significantly impact the model’s decision-making, offering insights into its interpretability.

Limitation

Although we demonstrated the performance and clinical value of our prediction model, there are still some limitations in this study. Firstly, it is a single-center retrospective study with a limited sample size and unavoidable selection bias. A prospective multi-center study is needed for further validation before its application to clinical practice. Secondly, there may be inconsistency in the assessment of pathological subtypes by pathologists, especially when multiple subtypes coexist and HGPs account for a smaller proportion. Thirdly, early fusion is used in our study, it is the fusion of information from all modalities at the input stage, uniformly fed into the classifier. Whether other fusion modalities applied to our study would have superior results deserves more in-depth research in the future. Finally, while tools such as saliency and attention maps generated by algorithm may aid interpretation, the lack of true transparency and interpretability may have a negative impact on the prospects for clinical application.

Conclusions

In summary, we built a fusion model that combines radiomics features and deep learning features to predict the presence of HGPs in invasive lung adenocarcinomas. It demonstrates a more prominent discriminative ability compared to the radiomics model and deep learning model. Compared to previous studies, it not only improves the prediction performance but also enhances the automation and generalization capabilities, which make it more suitable for clinical application. Although more extensive prospective studies are deserved for further validation, the model is still worth generalizing.
