Nanoassemblies loaded with low-dose paclitaxel can enhance the response of lung cancer immunotherapy by activating dendritic cells

Jianlin Long1# ORCID logo, Dairong Li1#, Wei Zhao2#, Guanzhong Liang1, Lumi Huang1, Shuangyi Lei1, Yan Li1

1Department of Medical Oncology, Chongqing University Cancer Hospital & Chongqing Cancer Institute & Chongqing Cancer Hospital, Chongqing, China; 2Oncology Radiotherapy Center, Chongqing University Cancer Hospital & Chongqing Cancer Institute & Chongqing Cancer Hospital, Chongqing, China

Contributions: (I) Conception and design: J Long, D Li; (II) Administrative support: J Long, D Li; (III) Provision of study materials or patients: W Zhao, Y Li; (IV) Collection and assembly of data: W Zhao, G Liang, L Huang, S Lei; (V) Data analysis and interpretation: W Zhao, G Liang, L Huang, S Lei; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Jianlin Long, MD. Department of Medical Oncology, Chongqing University Cancer Hospital & Chongqing Cancer Institute & Chongqing Cancer Hospital, No. 181 Hanyu Road, Shapingba District, Chongqing 400030, China. Email: jianlin_long@163.com.

Background: The immune tolerance of the tumor immune microenvironment (TIME) restricts the response to immune checkpoint inhibitors (ICIs). Targeted activation of dendritic cells (DCs) in the TIME seems to be a scheme for improving the therapeutic effect of ICIs treatment. The purpose of this study was to utilize nanotechnology to reprogram the immunosuppressive tumor immune microenvironment in situ, improving the response of ICIs to lung cancer.

Methods: In this study, a folic acid (FA)-modified nanoassembly (NA) loaded with low-dose paclitaxel (PTX) (FA-PTX NA), self-assembled by distearoylphosphatidylethanolamine-methoxy polyethylene glycol 2000-folic acid (DSPE-mPEG2000-FA) and PTX, was designed to reprogram the DC function of the TIME to sensitize cells to cancer immunotherapy. The characteristics of FA-PTX NAs were studied, and the cytotoxicity, cellular uptake, and DC stimulation of FA-PTX NAs were evaluated in vitro using a Lewis lung carcinoma (LLC) cell line and bone marrow-derived cells (BMDCs). Following this, the effect of the reprogrammed TIME and on the sensitization to immunotherapy in vivo were examined in a C57BL/6 mouse LLC subcutaneous xenograft model.

Results: The prepared FA-PTX NAs exhibited a slightly negative surface charge, appropriate size and shape, good drug release profiles, and high drug encapsulation efficiency and blood compatibility. The FA-PTX NAs were effectively uptaken by bone BMDCs, increasing the activation and expression of the costimulatory factor of BMDCs in vitro. In the LLC xenograft model treated with intravenous injection of FA-PTX NAs, the numbers of CD4+ and CD8+ T cells in the TIME increased significantly, the killing activity of tumor-specific cytotoxic T lymphocytes (CTLs) was significantly enhanced, and at the same time, the concentration of transforming growth factor β (TGF-β) decreased significantly. Furthermore, the infiltrated CD8+ T cells in TIME were mainly distributed in the tumor parenchyma. The combination of FA-PTX NAs and ICIs effectively inhibited the growth of LLC xenograft tumor, demonstrating a greater effect than that of ICIs alone. Moreover, it was found that apoptosis induction, increase in CD4+ and CD8+ T-cell infiltration, and improvement in the distribution of CD8+ T cells were involved in the anticancer mechanism of this combination treatment.

Conclusions: The NA loaded with low-dose PTX can reprogram the DC function in the TIME and exert a synergistic anticancer effect with ICIs in lung cancer treatment. Increased sensitization to ICI therapy as stimulated by PTX-enhanced NAs has potential applications in lung cancer immunotherapy.

Keywords: Lung cancer; immunotherapy; paclitaxel (PTX); nanoassemblies (NAs); tumor immune microenvironment (TIME)


Submitted Feb 19, 2025. Accepted for publication Apr 08, 2025. Published online Apr 23, 2025.

doi: 10.21037/tlcr-2025-180


Highlight box

Key findings

• Nanoassemblies (NAs) targeting folate receptors can effectively deliver drugs to the tumor microenvironment.

• NAs loaded with low-dose paclitaxel (PTX) can reprogram the immunosuppressive tumor microenvironment by activating dendritic cells.

• NAs loaded with low-dose PTX can enhance the antitumor effect of immune checkpoint inhibitors (ICIs) in the treatment of lung cancer.

What is known and what is new?

• The therapeutic efficacy of ICIs is closely related to the immune status of the tumor microenvironment. Reprogramming the immunosuppressive tumor microenvironment can enhance the efficacy of ICI therapy.

• A drug-delivery system using a lipophilic lipid prodrug targeting folate receptors delivers drugs to the tumor microenvironment. NAs loaded with low-dose PTX enhance the efficacy of ICIs by reprogramming the immunosuppressive tumor microenvironment.

What is the implication, and what should change now?

• Our study indicates that combining PTX-enhanced nanoparticles with ICI treatment could be a viable, novel strategy for cancer immunotherapy, providing a synergistic antitumor effect but no significant cytotoxicity. This strategy has also prompted the design of a combined therapy of chemotherapeutic drugs and immunotherapy.


Introduction

Lung cancer is the leading cause of cancer-related death worldwide (1). Cancer immunotherapy harnesses the host’s own immune system to fight cancer and has robust and durable tumor remission effects. Therapeutic antibodies against the programmed cell death protein-1/programmed death-ligand 1 (PD-1/PD-L1) pathway have been approved in use alone or in combination with chemotherapy for first-line treatment in patients with non-small cell lung cancer (NSCLC) without alteration of driver genes. However, only approximately 20–40% of patients with NSCLC respond to immune checkpoint inhibitor (ICI) treatment (2-5). Therefore, novel therapeutic strategies for lung cancer immunotherapy are urgently required.

Immune tolerance of the tumor immune microenvironment (TIME) remains the most significant challenge in cancer immunotherapy. The specific antitumor immunotherapy response relies on the number, function, and distribution of infiltrating lymphocytes in the tumor microenvironment (6-8). As important antigen-presenting cells (APCs), dendritic cells (DCs) play a pivotal role in initiating this specific antitumor immunity. The maturation and activation of DCs can trigger an adaptive antitumor immune response (9,10). However, the immunosuppressive tumor microenvironment suppresses the activation and maturation of DCs.

Paclitaxel (PTX), a microtubule-disrupting chemotherapeutic drug, has been used to treat various cancers, including lung cancer, by inhibiting the proliferation of cancer cells. However, the traditional dosage of PTX used in clinic could lead to the death of immunogenic tumor cells while also causing apoptosis of immune cells due to the lack of specific targeting ability, which greatly affects the efficacy of cancer immunotherapy (11). Some recent studies have shown that a low-dose of PTX, as an immunomodulator, can enhance anticancer effects by stimulating the immune system without exerting obvious cytotoxicity to immune cells (12,13). Zhong et al. found that the application of noncytotoxic low-dose PTX promoted the maturation and activation of DCs in vitro. Meanwhile, it significantly reduced the inhibition of DC maturational ability caused by tumor cells (13). Therefore, targeting the activation of DCs in the tumor microenvironment may be a feasible approach to improving the efficacy of immunotherapy.

Nanotechnology provides a platform for potent payloads to act on target cells and anatomical locations and has been used for the development and delivery of therapeutics (14,15). In recent years, it has been found that highly hydrophobic lipophilic prodrugs (LPs), obtained by combining hydrophobic drugs with hydrophobic elements (e.g., fatty acids and squalene), can be dispersed in water and self-assembled into stable nanoassemblies (NAs) without the aid of surface stabilizers (16,17). More importantly, functionalized components can be modularly embedded in LP-NAs to improve their tumor-targeting efficacy (18,19). The LP strategy has been used to deliver a variety of chemotherapeutics (e.g., PTX and docetaxel) with the advantage of high drug-loading capability (20-22). In addition, apart from being used for drug delivery, the multifunctional platform based on various nano-carriers can also be applied to cancer treatment (23). For example, the glycation reaction, especially the accumulation of advanced glycation end products (AGEs), is an important factor contributing to the occurrence and development of cancer. The synthesis of titanium dioxide (TiO₂) nanoparticles using the methanolic extract of medicinal plants and multimodal NAs have demonstrated good antiglycation and anticancer effects (24,25).

Inspired by the findings mentioned above, we designed a conjugate of lipophilic oleyl alcohol (OA) and PTX to form the lipophilic prodrug OA-PTX. OA-PTX and distearoylphosphatidylethanolamine-methoxy polyethylene glycol 2000-folic acid (DSPE-mPEG2000-FA) self-assemble to form folic acid-modified NAs, namely FA-PTX NAs. Incorporating DSPE-mPEG2000 during the self-assembly process further improves the colloidal stability of the prepared FA-PTX NAs. The FA-PTX NAs obtained exhibited a slightly negative surface charge, appropriate size and shape, good drug release profiles, and high drug encapsulation efficiency. Folic acid-modified NAs loaded with low-dose PTX can effectively reprogram the immunosuppressive tumor microenvironment and significantly enhance the efficacy of ICIs in the treatment of Lewis lung carcinoma (LLC). We present this article in accordance with the ARRIVE and MDAR reporting checklists (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-2025-180/rc).


Methods

Materials

PTX was purchased from Meilun Biology Technology Co., Ltd. (Dalian, China); DSPE-PEG2000 was purchased from Lipoid GmbH (Ludwigshafen, Germany); DSPE-PEG2000-FA was purchased from AVT Pharmaceutical Tech Co., Ltd (Shanghai, China); 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) and coumarin-6 were purchased from Sigma-Aldrich (St. Louis, MI, USA); and Dulbecco’s Modified Eagle’s Medium (DMEM), fetal bovine serum (FBS), penicillin, and streptomycin were purchased from HyClone (GE Healthcare, Chicago, IL, USA). All solvents used in this study were of analytical grade.

Cell line and culture

The LLC cell line was purchased from the American Type Culture Collection (ATCC; Manassas, VI, USA) and cultured in DMEM medium supplemented with 10% FBS, 2 mM of L-glutamine, 100 U/mL of penicillin, and 100 µg/mL of streptomycin in a humidified chamber containing 5% CO2 at 37 ℃.

Animals

Female C57BL/6 mice (4–6 weeks old) and male Sprague-Dawley (SD) rats (5–7 weeks old) were purchased from Beijing HFK Bioscience Co. Ltd (Beijing, China). Animals were housed under specific pathogen-free conditions with food and water in a laboratory animal room for animal experiments. All animals were cared for in accordance with the guidelines outlined in the Guide for the Care and Use of Laboratory Animals, 8th edition. The animal experiments were approved and supervised by the Institutional Animal Care and Treatment Committee of the Chongqing University Cancer Hospital. A protocol was prepared before the study without registration.

Synthesis of OA-ACSS-PTX

Dithiodiglycolic acid (1 g) was dissolved in 40 mL of dichloromethane (DCM). 1,3-Dicyclohexylcarbodiimide (DCC) (1.0 equivalent), oleyl alcohol (OA) (1.0 equivalent), and 4-Dimethylaminopyridine (DMAP) (~25 mg) were added and stirred at room temperature overnight. After the DCM was removed, 50 mL of ethyl acetate (EA) was added, and the solution was filtered to remove Dicyclohexylurea (DCU). The filtrate was further purified by silica gel column chromatography (200 mL petroleum ether (PE), 100 mL of PE–EA at 5:1, 100 mL of PE–EA at 4:1, and 200 mL of PE/EA at 2:1) to produce OA-ACSS-COOH.

To synthesize OA-ACSS-PTX, the OA-ACSS-COOH. (200 mg) was dissolved in anhydrous DCM (20 mL). DCC (1.2 eq), PTX (1.0 eq), and DMAP (~1 mg) were added and stirred at room temperature overnight. After DCM was removed, EA was added, and the solution was filtered to remove DCU. The filtrate was purified by silica gel column chromatography (400 mL PE–EA at 20:1) to obtain the OA-ACSS-PTX.

Preparation and characterization of PTX-loaded DSPE-mPEG2000-FA NAs

The FA-PTX NAs were prepared via the nanoprecipitation method. Briefly, a predetermined amount of OA-PTX, 10 mg of DSPE-mPEG2000 (10 wt%), and 1 mg of DSPE-mPEG2000-FA (1 wt%) were co-dissolved in ethanol to obtain a clear solution, which was then added dropwise to distilled water under vigorous stirring. The FA-PTX NAs were then evaporated under vacuum at 50 ℃ to the desired concentration. Fluorescence-labeled FA-PTX NAs were prepared by additionally incorporating 0.1 mg of coumarin-6. FA NAs were produced in a similar manner, free of encapsulation of OA-PTX.

The particle size and zeta potential of the FA-PTX NAs were measured by dynamic light scattering (DLS) via a Zetasizer Nano ZS (Malvern Instruments Ltd., Malvern, UK). The surface morphologies of the FA-PTX NAs were examined using a transmission electron microscope (TEM) (H-6009IV; Hitachi Ltd., Tokyo, Japan).

Hemolytic and aggregation assay of erythrocytes in vitro

Briefly, fresh blood from Sprague-Dawley rats was collected in heparinized tubes and washed with normal saline (NS) until the supernatant was colorless. Different concentrations (equivalent concentrations of PTX were 10, 20, 40, 80, and 160 µg/mL, respectively) of FA-PTX NAs in 0.5 mL of solution were added to 0.5 mL of rat erythrocyte suspension (4%) at 37 ℃. An erythrocyte suspension containing normal saline or distilled water was used as the negative or positive control, respectively. After 3 hours of incubation, all groups were centrifuged at 724 ×g for 3 minutes, and the supernatant was collected to determine the light absorbance value. The red supernatant solution indicated hemolysis, whereas the absolute achromatic supernatant solution indicated no hemolysis.

To detect erythrocyte aggregation, 100 µL of FA NAs or FA-PTX NAs (containing a PTX equivalent of 160 µg/mL) was coincubated with 100 µL of erythrocyte suspension (4%) in 12-well plates (Corning, Corning, NY, USA) at 37 ℃. After 2 hours of culture, erythrocyte aggregation was observed with an optical microscope (Olympus, Tokyo, Japan).

Encapsulation efficiency of FA-PTX NAs

To study the drug encapsulation efficiency of FA-PTX NAs, the concentrations of PTX were measured using high-performance liquid chromatography (HPLC) instrument (1100 HPLC, Agilent Technologies, Santa Clara, CA, USA). The mobile phase consisted of a mixture of acetonitrile and double-distilled water (60/40, v/v) pumped at a flow rate of 1.0 mL/min with a determination wavelength of 227 nm at 35 ℃. The following equation was used to calculate the drug encapsulation efficiency:

Encapsulationefficiency=wtofthedruginnanoparticleswtofthefeedingdrug×100%

Drug release assay in vitro

The amount of PTX released from FA-PTX NAs was measured using the dialysis method. FA-PTX NAs were diluted with phosphate-buffered saline (PBS) at a pH of 7.4 and 3.0. The solution was then sealed in a dialysis bag with a 3.5-kDa molecular weight cutoff [Sigma-Aldrich (Shanghai) Trading Co., Ltd.] and immersed in 10 mL of 0.1 mol/L PBS at a pH of 7.4 or 3.0, a temperature of 37 ℃, and at 2.2 ×g centrifugation. At each time point (0, 2, 5, 10, and 24 hours), 100 µL of the sample was collected from the incubation medium for HPLC. An equal volume of fresh PBS was added to the incubation medium immediately after sampling. The concentration of PTX released from FA-PTX NAs was calculated as a percentage of the total PTX in the FA-PTX NAs and plotted as a function of time.

Bone marrow-derived dendritic cell (BMDC) culture

BMDCs were derived from C57BL/6 mice in a manner described previously (26). Briefly, the tibia and femoral bone marrow cells were isolated and processed using red blood cell lysis buffer for 2 minutes. After two washes with RPMI-1640 medium, the cells were resuspended in RPMI-1640 medium containing Granulocyte-Macrophage Colony-Stimulating Factor (GM-CSF) and IL-4 at a final concentration of 10 ng/mL. After 48 hours of cultivation in an incubator at 37 ℃ in a 5% CO2 atmosphere, all cells were centrifuged and resuspended in fresh medium. The medium was changed every 2 days. All suspended cells were collected on day 7, and rich BMDCs were obtained.

Cell viability and apoptosis detection

LLC cells and BMDCs were collected and replanted in a 96-well plate at a density of 5×103 cells per well and cultured for 24 hours. The cells were then treated with FA NAs, FA-PTX NAs, and PTX at different PTX equivalent concentrations. After incubation for another 24 hours, the MTT reagent was added and the absorbance value was measured with a multiwell spectrophotometer (BioTek Instruments, Winooski, VT, USA) at 570 nm. Cell viability was calculated as a percentage of untreated controls that were not exposed to drugs.

To evaluate apoptosis in LLC and BMDCs, the Annexin V binding assay was done. LLC and BMDCs cells were seeded in a 6-well plate at a density of 1.5×105 cells per well and the treatment procedures were the same as the mentioned above. 24 h after treatments, the rate of apoptosis was measured on the flow cytometry (Beckman-Coulter) using the Annexin V-FITC Apoptosis Detection Kit I (BD Biosciences, San Jose, CA), in accordance with the manufacture’s protocol.

Cellular uptake and DC stimulation assay in vitro

FA-PTX NAs and PTX NAs were labeled with coumarin-6 to investigate their cellular uptake by BMDCs in vitro. Day 7 BMDCs were coincubated with coumarin-6-labeled FA-PTX NAs for 4 hours in a six-well plate. The cells were then washed with cold PBS after incubation and immobilized with paraformaldehyde (4%) for 30 minutes. Finally, the cellular uptake of FA-PTX NAs or PTX NAs in vitro was qualitatively measured under a confocal scanning laser microscope (Olympus) and quantified with a flow cytometer (Beckman Coulter, Brea, CA, USA).

Day 7 BMDCs were used to investigate the stimulation effect of FA-PTX NAs in DCs. BMDCs treated with FA-PTX NAs were coincubated with LLC cells for 48 hours, and the cells were collected and costained with anti-CD80 (APCs), anti-CD86 (PE), and anti-CD11c [fluorescein isothiocyanate (FITC)] antibodies. Flow cytometry was used to analyze the abundance of CD80+CD86+CD11c+ BMDCs.

Western blot analysis

The total protein concentrations of cell lysates from BMDCs treated with FA-PTX NAs were quantified by using the BCA Protein Assay Kit (Beyotime, China). Proteins from each sample were loaded into 12% sodium dodecyl sulfate-polyacrylamide gel electrophoresis and transferred to poly(vinylidene difluoride) membranes (Millipore). The membranes were sealed by using 5% skimmed milk, then incubated with anti-β-actin (Santa Cruz Biotechnology Inc.) or anti-MyD88 primary antibody (Proteintech, china) separately overnight at 4 ℃. The membranes were further incubated with relevant secondary antibody, which is labeled with horseradish peroxidase and colorated by the enhanced chemiluminescence detection reagents (EMD Millipore).

Establishment of LLC xenograft model

Female C57BL/6 mice were inoculated by subcutaneous injection into their backs with 200 µL of LLC cell suspension (5×106 cells). When the tumor volume reached approximately 100 mm3 in volume, subsequent experiments were performed.

Tumor-targeting assay and biodistribution

LLC tumor-bearing mice were used to perform a targeting tumor ability assay and biodistribution for FA-PTX NAs in vivo. Coumarin-labeled FA-PTX NAs were injected intravenously into the tail vein. At different time points (0, 8, 12, 16, 20 and 24 hours) after administration, a live image analysis instrument (Caliper Life Sciences, Hopkinton, MA, USA) was used for fluorescence imaging to determine the drug biodistribution.

Flow cytometry

To evaluate the ability of PTX to improve the immune state in the TIME, LLC tumor-bearing mice were treated with NS and FA NAs containing different PTX equivalent doses via intravenous injection. The LLC tumors taken from C57BL/6 mice were washed with ice-cold PBS (pH 7.4) to remove any remaining blood and then dissociated via the mincing of tissue with scalpels, which was followed by the addition of DMEM containing 1 mg/mL of collagenase I and incubation for 60–90 minutes at 37 ℃. The dissociated tumor tissue was washed with ice-cold PBS and filtered through a 70-µm cell strainer (BD Biosciences, Franklin Lakes, NJ, USA). The cell suspension was then centrifuged at a speed of 224 ×g for 5 minutes at 4 ℃. The cells were resuspended in 100 µL of PBS for further analysis. The cell suspensions were then stained with fluorochrome-labeled antibody-targeting murine CD4-FITC (eBioscience, San Diego, CA, USA), CD8-APC (Life Technologies, Thermo Fisher Scientific, Waltham, MA, USA), or an appropriate isotype control antibody and then analyzed by flow cytometry (Beckman Coulter, Brea, CA, USA). The results were analyzed using Kaluza Analysis Software version 1.3 (Beckman Coulter).

Enzyme‑linked immunosorbent assay

LLC tumors collected from C57BL/6 mice were ground into powder with liquid nitrogen in grinding bowls and then homogenized in radioimmunoprecipitation assay (RIPA) lysis buffer (Beyotime Bioscience, Nantong, China), followed by centrifugation at 19776 ×g for 30 minutes at 4 ℃. The 4-Diethylaminobenzaldehyde (DEAB) assay was used to test the protein concentration of samples. The prepared samples were stored at –80 ℃ until used. The levels of TGF-β in the samples were measured using mouse enzyme-linked immunosorbent assay (ELISA) kits (eBioscience) according to the manufacturer’s instructions, and the colorimetric reaction was measured at 450 nm using a microplate reader (Benchmark Electronics, Angleton, TX, USA).

Immunohistochemical analysis

LLC tumors from C57BL/6 mice were immediately fixed in formalin and embedded in paraffin. Paraffin (thickness 5 µm) sections were used to detect the presence of CD4+ and CD8+ T cells. Sections were incubated at 4 ℃ overnight with anti-mouse CD4 or anti-mouse CD8 antibodies (Abcam, Cambridge, UK), followed by incubation with appropriate secondary antibodies (Abcam). Peroxidase activity was visualized using a 3,3'-diaminobenzidine (DAB) substrate kit (Beyotime Bioscience, China). The sections were counterstained with hematoxylin. The slides were examined under a microscope (Eclipse E600; Nikon, Tokyo, Japan).

Isolation of splenic T cells and cytotoxicity assay

To detect splenic T cell activity, single-cell suspensions were obtained by lysis of erythrocytes using M-Lyse buffer (R&D, Minneapolis, MN, USA). Cytotoxicity against target cells was analyzed using the CytoTox 96 Non-Radioactive Cytotoxicity Assay-Lactate Dehydrogenase release assay (Promega, Madison, WI, USA), according to the manufacturer’s instructions. Briefly, splenic T cells were seeded in two 96-well plates at 1×105 cells/well and incubated for 48 hours with cells at a 20:1 effector-to-target (E-to-T) ratio. A volume of 30 µL of cell culture supernatant was transferred to transparent flat-bottom 96-well plates, and then 30 µL of substrate was added. After incubation for 30 minutes in the dark at room temperature, the reaction was stopped by adding 30 µL of stop solution. Thereafter, the absorbance was measured at 490 nm. The maximal release of lactate dehydrogenase was achieved by complete lysis of the target cells. Target or effector cells alone were used as negative controls (spontaneous release). The killing rate was determined using the following formula:

Killingrate=experimentalcountseffectorcontrolcountstargetspontaneouscountstargetmaximalcountstargetspontaneouscounts×100%

Antitumor efficacy in vivo

LLC tumor-bearing mice were randomly assigned to six groups (n=5) and treated with NS, FA NAs, FA-PTX NAs, NS + anti-PD-1, FA NAs + anti-PD-1, or FA-PTX NAs + anti-PD-1 via intravenous injection. Tumor volume and body weight were recorded every 3 days from the first dose of administration. Tumor volumes were calculated as follows: tumor volume = 0.5 × length × width2. Mice were killed via cervical vertebra dislocation 21 days after the first dose of administration, and the heart, liver, spleen, lung, kidney, and tumors were collected for hematoxylin and eosin (HE) staining, immunohistochemical (IHC) analysis, and ELISA. Tumor weights of the mice were recorded. Moreover, survival times were recorded every 3 days until 35 days after the first dose of administration.

Histological analysis and HE staining

The tissues were fixed in neutral paraformaldehyde (4%) for at least 24 hours and then embedded in paraffin. A commercially available terminal deoxynucleotidyl transferase 2'-deoxyuridine 5'-triphosphate nick end labeling (TUNEL) kit (Promega, Madison, WI, USA) was used to detect apoptotic cells in the tumor tissues in paraffin sections according to the manufacturer’s instructions. HE staining of the sections was performed to analyze the histomorphometry of tumor tissues.

Safety evaluation

Vital organs (liver, heart, lung, spleen, and kidney) and serum were harvested. HE staining and ELISA assay using standard methods to evaluate the potential toxicity of the FA-PTX NAs and anti-PD-1 combined treatment.

Statistical analysis

All data are presented as the mean ± standard deviation. All experiments were repeated at least three times. For a single comparison of two groups, the Student’s t-test is used after evaluating the normality of the data. If the data distribution is not normal, a Mann-Whitney rank sum test is conducted. For the comparison of multiple groups of data, one-way or two-way analysis of variance (ANOVA) is applied. Differences were considered statistically significant at P<0.05. The survival rates of mice were generated based on the Kaplan-Meier method, and statistical significance was determined via the log-rank test. A P value <0.05 was considered statistically significant.


Results

Preparation and characterization of FA-PTX NAs

First of all, we designed a highly lipophilic prodrug delivery platform to deliver the hydrophobic drug PTX to the tumor microenvironment. To resist the acidic environments in the tumor microenvironment and within cells, we chose OA, an acid-stable lipid, as the carrier. PTX was conjugated with OA via the disulfanyl acetate (ACSS) linker to be modified into the corresponding lipophilic prodrug, OA-ACSS-PTX (Figure 1A). Subsequently, the prepared OA-PTX and DSPE-mPEG2000-FA could readily assemble into FA-PTX NAs in water with a semitransparent appearance. During this process, DSPE-mPEG2000 was added to enhance the targeting ability and spatial stability of the NAs (Figure 1B). DLS measurements showed that the mean particle size of the FA-PTX NAs was 117±8 nm [Polydispersity Index (PDI) =0.18], which was slightly larger than that of the FA NAs (110±6 nm) (PDI =0.14) (Figure 2A), and no statistical difference was found (P>0.05). As shown in Figure 2B, the mean zeta potential of FA-PTX NAs was –23.2±1.9 mV, showing no significant difference from that of FA NAs at –22.9±2.3 mV. TEM analysis revealed that the FA-PTX NAs had a sphere-like morphology with a mean particle diameter of approximately 90 nm, which was similar to that of FA NAs (Figure 2C).

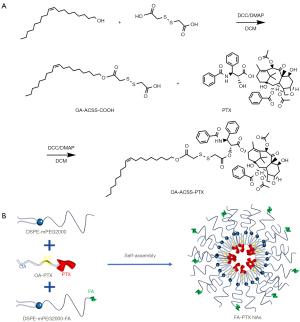

Figure 1 Preparation of FA-PTX NAs. (A) Synthesis route of OA-PTX. (B) Diagram of FA-PTX NA preparation. DCC, dicyclohexylcarbodiimide; DCM, dichloromethane; DMAP, 4-dimethylaminopyridine; FA-PTX NA, folic acid-modified nanoassemblies loaded with paclitaxel; OA-PTX, oleyl alcohol paclitaxel.
Figure 2 Characterization of FA-PTX NAs. (A) Size distribution spectrum and (B) zeta potential spectrum determined by Zetasizer Nano ZS. (C) Morphologic feature determined by a transmission electron microscopic image. Scale bar =100 nm. (D) Encapsulation efficiency and (E) release profile of paclitaxel determined by HPLC. (F) Erythrocyte aggregation assay observed with an optical microscope. Scale bar =100 μm. (G) Hemolytic test: PTX equivalent concentrations of [1] 10 μg/mL, [2] 20 μg/mL, [3] 40 μg/mL, [4] 80 μg/mL, and [5] 160 μg/mL, along with [6] normal saline (negative control) and [7] distilled water (positive control). FA NAs, folic acid-modified nanoassemblies; FA-PTX NA, folic acid-modified nanoassemblies loaded with paclitaxel; HPLC, high-performance liquid chromatography; NS, normal saline.

To study the encapsulation ability of PTX based on FA NAs, we mixed PTX and FA NAs (the sum of DSPE-mPEG2000 and DSPE-mPEG2000-FA) in different ratios (1:10, 1:50, and 1:100 w/w). The results indicated that the encapsulation efficiency of PTX was over 90% even when the ratio of PTX to FA-NAs was 1:10, as shown in Figure 2D.

To simulate the release behavior of FA-PTX NAs in blood and inside cells in vitro, we incubated FA-PTX NAs in PBS at 37 ℃ and pH 7.4 and pH 3.0. The release profiles (Figure 2E) indicated that PTX was released slowly from the FA-PTX NAs at both a pH of 7.4 and pH 3.0. The release was even slower in an acidic environment. Within 48 hours, the cumulative release of PTX in the pH 7.4 and pH 3.0 environments only reached 53.1% and 36.4%, respectively.

Moreover, we carried out erythrocyte aggregation and hemolysis assay to evaluate the blood compatibility of FA-PTX NAs. As shown in Figure 2F,2G, the FA-PTX NAs caused no obvious hemolysis or hemagglutination at the experimental concentration, which suggested that the FA-PTX NAs had good blood compatibility and were suitable for intravenous medication.

Cell viability and cellular uptake in vitro

The MTT assay was used to detect the cytotoxicity of FA-PTX NAs and FA NAs in BMDCs or LLC cells in vitro. As shown in Figure 3A,3B, the cytotoxicity of FA-PTX NAs and PTX on BMDCs or LLC cells was dose-dependent. When the equivalent concentration of PTX or FA-PTX NAs was lower than 5 µg/mL, neither PTX nor FA-PTX NAs showed cytotoxicity to BMDCs or LLC cells. When the equivalent concentration of PTX was higher than 20 µg/mL, PTX exhibited increased cytotoxicity. However, FA-PTX NAs showed only approximately 30% growth inhibition of BMDCs or LLC cells even when the concentration reached 100 µg/mL. Compared with free PTX, FA-PTX NAs showed lower cytotoxicity to LLC and BMDCs, which might have been due to the slow and sustained release of PTX from FA-PTX NAs. In addition, we also investigated the cytotoxicity of FA NAs to LLC and BMDCs. As shown in Figure 3C, FA NAs had slight toxicity to LLC and BMDCs. Even when the concentration of FA NAs reached 200 µg/mL, the cell inhibition rates of the two groups of cells were only around 15%.

Figure 3 Cell viability, cellular uptake of FA-PTX NAs, and BMDC stimulation experiments. LLC and BMDCs cells incubated with FA-PTX NAs, PTX or FA NAs at indicated concentrations for 24 hours. Cell viability was detected by MTT assay (A-C) and cell apoptosis was examined by flow cytometry (D-F). (G) Image from confocal laser scanning microscopy of cellular uptake and the (H) fluorescence peak of cells on the flow cytometry histogram. BMDCs treated with FA-PTX NAs (the equivalent PTX dose of 5 ng/mL) for 4 h. FA-PTX NAs were labeled with coumarin-6. Scale bar =10 μm. (I) Antigen expression of DCs after treatment with FA-PTX NAs and PTX (the proportion of CD80+CD86+CD11c+ DCs was detected). (J) The expression of MyD88 was examined by western blot assay. BMDCs, bone marrow-derived cells; DCs, dendritic cells; FA-PTX NAs, folic acid-modified nanoassemblies loaded with paclitaxel; FA NA, folic acid-modified nanoassemblies; LLC, Lewis lung carcinoma; MTT, 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide; PTX, paclitaxel.

Furthermore, LLC and BMDCs cells were treated with a range of equivalent concentrations of PTX or FA NAs. The cells were harvested 24 hours later, and the sensitivities of LLC and BMDCs cells to various concentrations of PTX and FA NAs were further evaluated by assessing the level of cellular apoptosis. To represent the results related to the apoptosis rates of drug-treated LLC and BMDCs cells, we subtracted the percentage of spontaneous apoptotic in the untreated cell cultures from the drug-induced apoptosis values. The Annexin V binding assay showed that the apoptosis rate exhibited a dose-dependent pattern with respect to the PTX concentration. When the PTX concentration was 5 µg/mL, the apoptosis rates of the FA-PTX NAs group and the PTX group for LLC cells were 2.18% and 5.68% respectively, and for BMDCs cells were 2.46% and 2.09% respectively. When the PTX concentration was greater than 10 µg/mL, the apoptosis rates of the FA-PTX NAs group and the PTX group for both LLC and BMDCs cells increased significantly (Figure 3D,3E). We also evaluated the apoptosis rates of LLC and BMDCs cells induced by FA NAs. The results showed that even when the concentration of FA NAs reached 200 µg/mL, the apoptosis rates of LLC and BMDCs cells induced by FA NAs were only 9.20% and 8.85% respectively (Figure 3F). This indicates that the prepared FA NAs are safe. Therefore, we chose a PTX equivalent concentration of 5 µg/mL for the subsequent BMDCs stimulation experiments.

DCs can engulf nanoparticles effectively, resulting in the clearance of nanoparticles. However, the phagocytosis of DCs provides an opportunity to deliver immunomodulators to promote DC maturation and initiate an adaptive immune response. Activated macrophages, which are important DCs, express folate receptor (27), and the expression of folate receptors further promotes phagocytosis of DCs. Therefore, we compared the cellular uptake of FA-PTX NAs and PTX NAs by BMDCs using confocal microscopy. Flow cytometry was used to compare the fluorescence intensity of the cellular uptake of FA-PTX NAs and PTX NAs. Under confocal laser scanning microscopy, the colocalization (yellow/orange) of coumarin - 6/FA-PTX NAs (green) and the lysotracker (red) within the same cells was clearly observed. This finding demonstrates that both FA-PTX NAs and PTX NAs are capable of being internalized by BMDCs. In comparison with coumarin-6/PTX NAs, coumarin-6/FA-PTX NAs led to a remarkable enhancement in cellular uptake (Figure 3G). The fluorescence intensity of cells incubated with FA-PTX NAs was much higher than that with PTX NAs (Figure 3H).

The phagocytosis and presentation of antigens by DCs play an important role in initiating the adaptive immune response. The expression of the costimulatory molecules CD40, CD80, and MHC II are all upregulated when immature DCs turn into mature DCs. To determine whether FA-PTX NAs could promote DC activation and maturation, we incubated BMDCs treated with free PTX or FA-PTX NAs. Subsequently, the expression of DC surface antigens was evaluated. The results indicated that the mean percentages of CD11c+CD80+CD86+ treated with control, free PTX, and FA-PTX NAs were 3.29%±0.96%, 4.66%±1.20%, and 17.20%±3.15%, respectively (Figure 3I). Moreover, FA-PTX NAs were found to enhance the DC antigen presentation effect as compared to free PTX.

Next, we investigated the possible mechanism by which PTX enhances the maturation of BMDCs. Studies have shown that PTX can mimic bacterial lipopolysaccharide (LPS) and directly bind to Toll-like receptor 4 (TLR4), enhancing the maturation of DCs through the TLR4/MyD88/NF-κB signaling pathway. In the TLR4/MyD88/NF-κB signaling pathway, the activation of MyD88 plays a crucial role in promoting the nuclear translocation of downstream NF-κB and inducing the maturation of DCs (28,29). Therefore, we detected the expression of MyD88 protein by Western blot. The result showed that the expression level of MyD88 in BMDCs treated with FA-PTX NAs was significantly higher than that in cells treated with free PTX (Figure 3J).

Tumor-targeting assay in vivo

To evaluate the tumor-targeting ability of FA-PTX NAs in vivo, we intravenously injected coumarin-6-labeled FA-PTX NAs into tumor-bearing mice and observed the fluorescence intensity of the tumors at different time points. The real-time distribution images of FA-PTX NAs in vivo demonstrated that the fluorescence derived from coumarin-6 was mainly observed in tumor nodules, reaching its peak at 12 hours after administration, and almost disappeared 18-24 hours after administration. In addition, the fluorescence derived from coumarin-6 could also be detected in the liver and kidneys, but the fluorescence intensity in these sites was much lower than that in the tumor nodules (Figure 4).

Figure 4 Tumor-targeting assay and biodistribution of FA-PTX NAs. Biodistribution image of FA-PTX NAs in tumor and vital organs (heart, liver, spleen, lung and kidney) at different time points after intravenous administration of the coumarin-6-labeled FA-PTX NAs as monitored by a live image analysis instrument. FA-PTX NAs, folic acid-modified nanoassemblies loaded with paclitaxel.

Detection the proportion of CD4+ and CD8+ T cells in the TIME

To determine whether PTX encapsulated in FA NAs could improve the immune state of the TIME, we constructed a subcutaneous LLC xenograft model in C57BL/6 mice. Tumor-bearing mice were injected with FA-PTX NAs loaded with different doses of PTX at different time points. Flow cytometry was used to detect the proportion of CD4+ and CD8+T cells at different time points, both of which corresponded to the anticancer response to ICIs. A schematic diagram of the injection procedure is shown in Figure 5A. Flow cytometry analysis showed that at 3, 5, or 8 days of administration, the proportion of the CD4+ and CD8+ T cells in the FA-PTX NA-treated groups were significantly higher than those in FA NA-treated groups and NS-treated groups; meanwhile, the proportion of CD4+ and CD8+ T cells in FA NA-treated groups were similar to those in the NS-treated groups. Moreover, the proportions of CD4+ and CD8+ T cells on day 3, 5, and 8 of administration increased as the equivalent dose of PTX increased from 0.1 to 1 mg/kg and then decreased when the equivalent dose of PTX exceeded 1 mg/kg, indicating that the dose of 1 mg/kg was the most appropriate dose. We compared the proportion of CD4+ and CD8+ T cells on days 3, 5, and 8 after administration and found that the proportions of CD4+ and CD8+ T cells on day 5 in each group were all higher than those on days 3 and 8; this indicated that 5 days after administration was the best time point for immune state improvement in the tumor microenvironment (Figure 5B-5E).

Figure 5 Detection of the immune state of the TIME. (A) Schematic diagram of the administration and detection schedule. The proportion of (B,C) CD4+ T cells and (D,E) CD8+ T cells of tumors from mice treated with NS, FA NAs, and FA-PTX NAs containing different doses of PTX at different time points as detected by flow cytometry. The numbers in the right area indicate the percentages of (B) CD4+ or (D) CD8+ T cells. (F) The distribution of CD8+ T cells in the TIME as detected by IHC. Scale bar =100 μm. (G) The concentration of TGF-β detected in tumors via ELISA in the different treatment groups at different time points. (H) The killing rate of splenic T cells as measured by lactate dehydrogenase release assay. FA-PTX NA, folic acid-modified nanoassemblies loaded paclitaxel; FA NA, folic acid-modified nanoassemblies; IHC, immunohistochemical; NS, normal saline; TIME, tumor immune microenvironment; TGF-β, transforming growth factor-beta.

The abundance and distribution of CD8+ T cells in the TIME

A study has shown that the response to ICIs is closely related to the distribution of CD8+ T cells in the TIME and the number of CD8+ T cells (30). We detected the abundance and distribution of the CD8+ T cells in the TIME via IHC. The results revealed a low abundance of CD8+ T and a sporadic distribution around vessels in the TIME among the groups treated with NS or FA NAs; meanwhile, in the FA-PTX NA treatment groups, a greater abundance of CD8+ T cells was observed, and these cells were mainly located among tumor cells in the TIME on days 3, 5, and 8 of administration. In the FA-PTX NA groups, when the equivalent dose of PTX was 1 mg/kg, the greatest abundance of CD8+ T cells were observed, and they were interspersed among the tumor cells. When the equivalent dose of PTX exceeded 1 mg/kg, the abundance of CD8+ T cells remained unchanged, but there was a greater distribution of CD8+ T cells around the blood vessels. Moreover, compared with that on days 3 and 8 of administration, the number of CD8+ T cells in the TIME on day 5 of administration increased significantly and the distribution was more favorable (Figure 5F).

Concentration of TGF-β in the TIME

A study has revealed that TGF-β is closely associated with the infiltration and distribution of CD8+ T cells in the TIME (30). We measured the concentration of TGF-β in the TIME using ELISA. The results showed that on day 3, 5, and 8 of administration, the amount of TGF-β in groups treated with FA-PTX NAs was significantly reduced compared with that in groups treated with NS or FA NAs, while the amount of TGF-β in the FA NA groups was slightly lower than that in the NS group. Moreover, the amount of TGF-β was the lowest in each FA-PTX NA treatment group on day 5 of administration than on days 3, 5, and 8 of administration and was the lowest in the FA-PTX1 NA group among the different groups of equivalent PTX doses (Figure 5G).

Detection of tumor-specific cytotoxic T lymphocytes (CTLs)

The antitumor response of ICIs largely depends on the activity of tumor-specific CTLs. We performed a cytotoxicity assay to assess the cytotoxicity of splenic T cells against cancer cells using an in vitro lactate dehydrogenase release assay. After splenic T cells were cocultured with LLC cells for 48 hours at 20:1 E-to-T ratios, splenic T cells from mice treated with NS or FA NAs showed weak cytotoxicity for LLC cells, and the cytotoxicity decreased with time, with killing rates of 12.10%±1.24%, 14.12%±1.43% on day 3 of administration, 8.82%±0.78%, 11.50%±1.09% on day 5 of administration, and 3.14%±0.63%, 3.80%±0.78% on day 8 of administration. There were no differences in splenic T cell killing rates between mice treated with NS and FA-NAs. However, splenic T cells from mice treated with FA-PTX NAs showed stronger cytotoxicity in LLC cells than mice treated with NS or FA NAs. The killing rate of the FA-PTX1 NAs groups was 36.63%±2.71% on day 3, 59.63%±4.18% on day 5, and 39.15%±4.74% on day 8. The killing rate of FA-PTX1 NAs was also significantly higher than that of FA-PTX0,1 NAs, FA-PTX5 NAs, and FA-PTX10 NAs (Figure 5H).

Based on the above results, we chose the PTX equivalent dose of 1 mg/kg once a day 4 times on day 5 of administration for the injection of ICIs for subsequent experiments.

Antitumor efficacy in vivo

To improve the antitumor response to ICIs of FA-PTX NAs in vivo, we constructed a subcutaneous LLC xenograft tumor model in C57BL/6 mice and intravenously injected NS, FA NAs, FA-PTX NAs, and anti-PD-1 [an anti-mouse PD-1 (CD279)-in vivo, Bioxcell] (31). The FA-PTX NAs were administered once a day four times (the equivalent dose of PTX was 1 mg/kg) 5 days after tumor inoculation, and then anti-PD-1 was injected with 10 mg/kg every other day for a total of two doses on days 5 and 7 of administration. The treatment regimen is shown in Figure 6A. As shown in Figure 6B, NS + anti-PD-1, FA NAs + anti-PD-1, and FA-PTX NAs + anti-PD-1 all displayed significant tumor growth inhibition effects compared to NS, FA NAs, and FA-PTX NAs; moreover, the extent of inhibition of FA-PTX NAs + anti-PD-1 was dramatically higher than that of NS + anti-PD-1 and FA NAs + anti-PD-1. There was no significant difference between the FA NAs+anti-PD-1 and NS + anti-PD-1 groups. Compared to NS or FA NAs, FA-PTX NAs displayed a greater degree of tumor growth inhibition, but not significantly so. The tumor weight in each group was recorded on day 21 after administration. As illustrated in Figure 6C, the average tumor weight in the FA-PTX NAs + anti-PD-1, FA NAs + anti-PD-1, NS + anti-PD-1, FA-PTX NA, NS, and FA NA groups was 0.47±0.14, 0.93±0.21, 0.99±0.19, 1.73±0.20, 1.83±0.18, and 1.95±0.16 g, respectively. As shown in Figure 6D, the body weights of mice in each group were similar. In addition, after 35 days of administration, although NS + anti-PD-1 and FA NAs + anti-PD-1 treatment improved the survival time, FA-PTX NAs + anti-PD-1 demonstrated a longer survival time (Figure 6E). These results suggest that FA-PTX NAs + anti-PD-1 has a higher antitumor efficacy against LLC than does FA NAs + anti-PD-1 or NS + anti-PD-1.

Figure 6 Antitumor effect of FA-PTX NAs on LLC cells in vivo. (A) Schematic diagram of the inoculation and treatment schedule. (B) Tumor volume growth curve, (C) tumor weights, (D) body weight, and (E) the survival curve of mice in each group. **, P<0.01; ***, P<0.001; ns, no significance. FA-PTX NA, folic acid-modified nanoassemblies loaded with paclitaxel; FA NA, folic acid-modified nanoassemblies; LLC, Lewis lung carcinoma; PD-1, programmed cell death protein-1.

Antitumor mechanism and side effects

To clarify the underlying mechanisms for improving the response to ICIs of FA-PTX NAs in vivo, TUNEL, CD4+ T-cell, CD8+ T-cell, and HE staining were conducted. HE staining of tumor sections suggested that tumor tissues treated with FA-PTX NA or FA-PTX NAs + anti-PD-1 showed fewer blood vessels, and a combination of FA-PTX NAs and anti–PD-1 treatment increase the number of dead cancer cells. In contrast, there were more red blood cells and vessels in tumors treated with NS, FA NA, NS + anti-PD-1, and FA NAs + anti-PD-1 (Figure 7A). As shown in Figure 7B, tumor tissues treated with NS + anti-PD-1, FA NAs + anti-PD-1, and FA-PTX NAs + anti-PD-1 all had more TUNEL-positive tumor cells than did those treated with NA, FA NAs, or FA-PTX NAs NS. FA-PTX NAs + anti-PD-1 induced remarkable cell apoptosis when compared with NS + anti-PD-1 or FA NAs + anti-PD-1. In addition, the number of infiltrating CD4+ and CD8+ T cells in tumors assessed by IHC staining was markedly increased under treatment of FA-PTX NAs, NS + anti-PD-1, FA NAs + anti-PD-1, and FA-PTX NAs + anti-PD-1 as compared to treatment with NS and FA NAs. In contrast, a greater abundance of CD4+ and CD8+ T cells in tumors was observed in mice treated with FA-PTX NAs and FA-PTX NAs + anti-PD-1 than in those treated with NS + anti-PD-1 and FA NAs + anti-PD-1 (Figure 7C,7D). As can be seen in Figure 7E, there was large abundance of infiltrating CD8+ T cells and distribution among tumor cells in tumors treated with FA-PTX NAs and FA-PTX NAs + anti-PD-1; meanwhile, under treatment with NS + anti-PD-1 and FA NAs + anti-PD-1, the infiltration of CD8+ T cells was mainly distributed at the edge of tumors. Immunohistochemical scoring showed that the proportions of TUNEL-positive cells, CD4+ T cells, and CD8+ T cells in the FA-PTX NAs + anti-PD-1 treatment group were significantly higher than those in the other treatment groups (Figure 7F-7H). These results thus suggest that PTX can promote the infiltration and distribution of CD4+ and CD8+ T cells in the TIME, which are involved in the improvement of response to ICIs.

Figure 7 Antitumor mechanism analysis. (A) HE staining of tumor tissues. Scale bar =100 μm. (B) The apoptosis induction as determined by TUNEL assay. Scale bar =50 μm. (C) The number of CD4+ and (D) CD8+ T cells in tumors detected by IHC. Scale bar =50 μm. (E) The distribution of CD8+ T cells in tumors detected by IHC. Scale bar =100 μm. (F-H) Tumor cell apoptosis and the abundance of CD4+ T cells and CD8+ T cells were assessed by counting the rate of TUNEL-positive cells and the number of CD4+ and CD8+ T cells, respectively. *, P<0.05; **, P<0.01; ***, P<0.001; ns, no significance. FA NA, folic acid-modified nanoassemblies; FA-PTX NA, folic acid-modified nanoassemblies loaded with paclitaxel; HE, hematoxylin and eosin; IHC, immunohistochemistry; NS, normal saline; PD-1, programmed cell death protein-1; TUNEL, terminal deoxynucleotidyl transferase 2'-deoxyuridine 5'-triphosphate nick end labeling.

We also evaluated the safety of the combination treatment of FA-PTX NAs and anti-PD-1 through HE staining and cytokine detection. we found that there were no significant pathological changes in the lungs, liver, spleen, kidneys, or heart of mice treated with FA-PTX NAs combined anti-PD-1 (Figure 8A). Moreover, there were no significant differences in the levels of cytokines such as IL-2, IL-6, IL-8, IL-10, and TNF-α among the various treatment groups (Figure 8B-8F). These suggested that FA-PTX NA had no obvious side effects in mice.

Figure 8 System toxicity evaluation. (A) Representative histological sections of vital organs stained with HE. Scale bar =100 μm. (B-F) The levels of serum cytokines were measured by ELISA. ns, no significance. ELISA, enzyme-linked immunosorbent assay; FA NA, folic acid-modified nanoassemblies; FA-PTX NA, folic acid-modified nanoassemblies loaded with paclitaxel; HE, hematoxylin and eosin; IL-6, interleukin-6; IL-8, interleukin-8; IL-10, interleukin-10; IL-2, interleukin-2; NS, normal saline; PD-1, programmed cell death protein-1; TNF-α, tumor necrosis factor-α.

Discussion

In this study, low-dosage PTX-enhanced NAs, FA-PTX NAs, were designed as a novel immunomodulator to improve the response to ICIs in lung cancer treatment. NAs loading with a low dose of PTX can significantly reprogram the immunosuppressive tumor microenvironment. Treatment with FA-PTX NAs combined with ICIs exerted synergistic effects in inhibiting lung cancer growth in vivo.

Immune tolerance of the tumor microenvironment remains the most significant challenge for cancer immunotherapy. The efficacy of ICI treatment is closely associated with the composition, function, and spatial location of immune cells within the TME, which composes the TIME (6,32). Considerable effort has been exerted to abolish the local immune tolerance of TIMEs in order to increase sensitization to ICI treatment. For instance, chemotherapy, radiation therapy, and small-molecule inhibitors have been developed to induce the immunogenic death of tumor cells and sensitize tumors to ICI therapy via the instigation of CD8+ T-cell infiltration in the TIME (33-39). TGF-β signaling plays a vital role in excluding infiltrating T cells within the TIME, resulting in resistance to ICI treatment. Treatments blocking TGF-β signaling also contribute to improving the response to ICIs by inhibiting the exclusion of immune cells (30,40,41). A study by Mathios et al., indicated that local chemotherapy could also be an effective strategy to breaking the immune tolerance of TIME, as it may facilitate the infiltration of tumor-associated DCs and the expansion of antigen-specific T effector cells; however, they found that systemic chemotherapy resulted in systemic and intratumoral lymphodepletion (42). Another strategy involves lowering the concentrations of chemotherapeutics because this can modulate the intratumoral cytokine network and lung cancer growth. In a study by Zhong et al., low-dose PTX did not show any indication of inducing tumor resistance in a mouse lung cancer model (13). The tumor-specific immune response triggered by immunogenic cell death (ICD) induced by high-dose chemotherapy is also an important strategy for breaking the immune tolerance in the tumor microenvironment. However, this strategy may also be associated with severe toxic reactions and induce the apoptosis of immune cells. More importantly, its localization efficiency in the tumor microenvironment is relatively low. In recent years, stimuli-responsive multifunctional nanoparticles or nanocomposites carrying immunogenic cell death inducers have provided a promising solution for breaking the immunosuppressive tumor microenvironment (43).

Nanotechnology has been used to target the TIME and increase sensitization to immunotherapy. This involve the ability to program the location, pharmacokinetics, and delivery of immunomodulatory compounds acting on cells at target sites to elicit responses that cannot be achieved with the administration of such compounds in solution. For example, Li et al. prepared a nanocomplex composed of C-X-C motif chemokine receptor 4 (CXCR4) inhibitor and PTX to target the TME. The results showed that the complex induced T-cell infiltration and reduced the number of myeloid-derived suppressor cells and T regulatory cells in the tumor microenvironment, and enhanced the antitumor effects of immunotherapy (44). Tang et al. prepared PTX-loaded nanoparticles that could be effectively phagocytosed by macrophages and which polarized macrophages toward the M1 type and inhibited their differentiation both on the phenotypic and functional levels, consequently awakening the immune system to fight against cancer. Moreover, the PTX-loaded nanoparticles showed lower cytotoxicity toward BMDMs than did free PTX (12). Finally, Wen et al. found that macrophages highly express folate receptors (27), which is conducive to the targeted uptake of the prepared folic acid-modified nanoparticles by macrophages.

In our study, we leveraged coassembling to develop novel folic acid-modified low-dose PTX-loaded NAs, named FA-PTX NAs, to be used as immunomodulators to sensitize cancer cells to immunotherapy. The prepared FA-PTX NAs showed high drug encapsulation efficiency, good drug release profiles, good blood biocompatibility, a uniform size, and a weak negative zeta potential. The FA-PTX NAs were confirmed to be uptaken effectively by DCs, to promote the activation of DCs without obvious cytotoxicity in vitro, and to have a good targeting effect on the TIME in vivo. Given that the immune state of TIME is spatiotemporally controlled, therapies that influence the immune state of TIME should also be spatiotemporally controlled. Thus, we examined the dynamic changes in the immune state of the TIME caused by FA-PTX NAs to identify the optimal time window for immunotherapy and dose of PTX. The results showed that the improvement in TIME by FA-PTX NAs was dose- and time-dependent. This indicates that immunomodulators should require a certain time window in sensitizing immunotherapy to achieve the best synergistic antitumor effect. Subsequent experiments showed that FA-PTX NAs in combination with ICIs could efficiently inhibit the growth of lung cancer, showing potential applications in lung cancer immunotherapy. Our results indicate that combining PTX-enhanced nanoparticles with ICI treatment could be a new strategy for cancer immunotherapy with a synergistic antitumor effect and no significant cytotoxicity. This strategy has also inspired the design of a combined therapy of chemotherapeutic drug and immunotherapy.

However, certain limitations to this study should be acknowledged. Most notably, due to constraints such as time and research funding, we were unable to further explore the underlying mechanisms of how low-dose PTC activates DCs. This will be examined further in our subsequent work.


Conclusions

In this study, we demonstrated that low-dose PX-enhanced NAs can act as an immunomodulator for cancer immunotherapy. The immunosuppressive TIME was significantly improved by PTX-enhanced NAs. NAs loaded with low-dose PTX exerted a synergistic antitumor effect with immunotherapy. ICIs could more efficiently inhibit the growth of lung cancer cells, which were sensitized by the PTX-enhanced NAs, through apoptosis induction, CD8+ T-cell infiltration increase, and the improved distribution of infiltrated CD8+ T cells, thus supporting the application of NAs in lung cancer immunotherapy.


Acknowledgments

None.


Footnote

Reporting Checklist: The authors have completed the ARRIVE and MDAR reporting checklists. Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-2025-180/rc

Data Sharing Statement: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-2025-180/dss

Peer Review File: Available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-2025-180/prf

Funding: This work was supported by the Natural Science Foundation of Chongqing City (No. cstc2019jcyj-msxmX0614), the Sichuan Provincial Regional Innovation Cooperation Plan (No. 2022YFQ0004), and the Senior Medical Talents Program of Chongqing for Young and Middle-aged (No. 2020GDRC005).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tlcr.amegroups.com/article/view/10.21037/tlcr-2025-180/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All animals were cared for in accordance with the guidelines outlined in the Guide for the Care and Use of Laboratory Animals, 8th edition. The animal experiments were approved and supervised by the Institutional Animal Care and Treatment Committee of the Chongqing University Cancer Hospital.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
